Remove/Install Heat Shield - AR88.20-P-1925SRA
MODEL 453.3 (except 453.391), 453.4 (except 453.491)
| Remove/install | |||

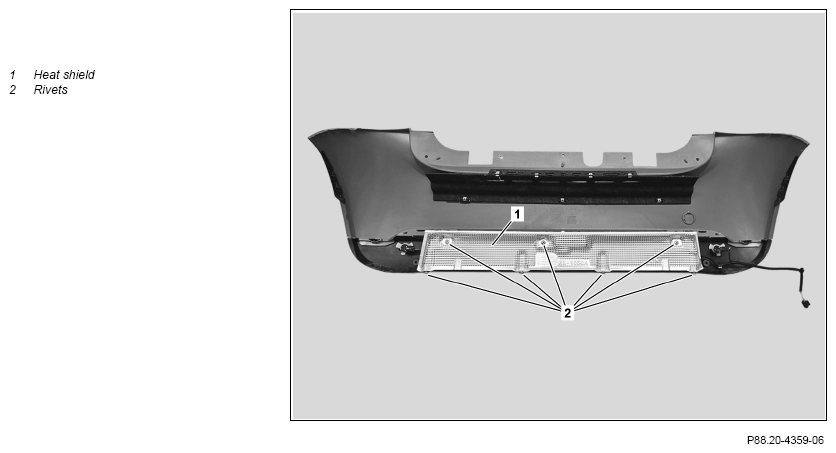

| 1 | Remove rear bumper | AR88.20-P-2200SRA | |
| 2 | Set rear bumper down on suitable base | ||
| 3 | Drill out rivet heads on rivets (2) | ||
| 4 | Risk of injury
caused by scraping or cutting body parts on sharp vehicle parts Remove heat shield (1) from rear bumper |
Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. | AS00.00-Z-0017-01A |
| 5 | Press out any pieces of rivets remaining in the rear bumper | ||
| 6 | Install in the reverse order |
