Remove/Install Brake Hose To Front Axle - AR42.10-P-0026SR

MODEL 453

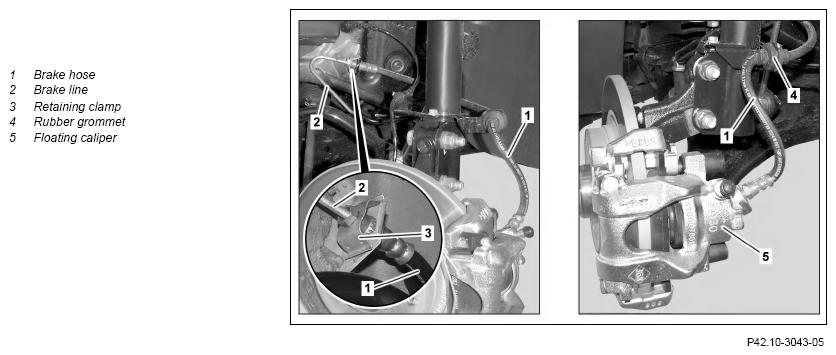

Shown on left side of vehicle

Courtesy of MERCEDES-BENZ USA

	Risk of poisoning from swallowing brake fluid. Risk of injury from skin and eye contact with brake fluid	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
	Brake fluid notes		AH42.50-P-0001-01A
	Notes on repairs to brake system		AH42.00-P-0003-01A
	Remove/install
1	Insert brake pedal jack with adapter for brake pedal jack between brake pedal and driver's seat, and press brake pedal approx. 2 cm	Cover driver seat. Otherwise the driver's seat may be soiled or damaged. To prevent the brake fluid reservoir from emptying.
		Adapter for brake pedal winch	Figure
		Brake pedal jack	Figure
2	Remove left or right wheel-and-tire assembly		AR40.10-P-1100SR
3	Unscrew retaining screw of brake line (2) from brake hose (1)	Collect brake fluid in a suitable container. Retaining screw, brake line to brake hose	*BA42.10-P-1002-04SR
4	Immediately seal off brake line (2) and brake hose (1) connections	Record plug	Figure
5	Remove brake hose (1) from bracket and remove retaining clamps (3)	: Install brake hose (1) without any chafing and free of tension. Otherwise the brake hose (1) will be damaged. : Make sure that retaining clip (3) is seated properly.
6	Remove rubber grommet (4) from bracket
7	Unscrew brake hose (1) from floating brake caliper (5) and remove	Collect brake fluid in a suitable container. Brake hose to front floating caliper	*BA42.10-P-1001-04SR
8	Immediately seal off brake hose (1) and floating brake caliper (5) connections	Record plug	Figure
9	Install in the reverse order
10	Bleed brake system		AR42.10-P-0010SR
