Bleed Brake System - AR42.10-P-0010SR

MODEL 453

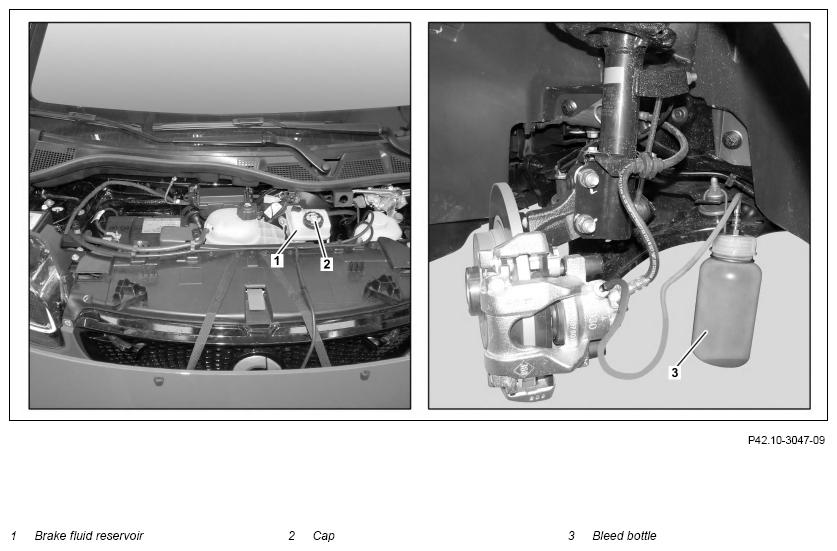

G12096883Courtesy of MERCEDES-BENZ USA
  Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
  Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. No parts of the body or limbs should be within the operating area when the components are moving. AS00.00-Z-0011-01A
  Risk of poisoning  from swallowing brake fluid.
Risk of injury  from skin and eye contact with brake fluid		 Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. AS42.50-Z-0001-01A
NOTES Brake fluid notes   AH42.50-P-0001-01A
NOTES Notes on repairs to brake system   AH42.00-P-0003-01A
REMOVING Remove
1 Switch off ignition IMPORTANT The ignition must remain off for the entire duration of the bleeding process because the solenoid valves of the hydraulic unit must be in the deactivated state when bleeding.
2 Detach maintenance flap and move away from working area
CLEAN Clean
3 Clean area around cap (2)
4 Unscrew cap (2) of brake fluid reservoir (1)
  Bleeding
5 Fill with new brake fluid up to the "MAXI" mark in the brake fluid reservoir (1)
REFER TO CAPACITIES & SPECIFICATIONS Brake fluids (DOT 4 plus)   BB00.40-P-0331-00A
REFER TO CAPACITIES & SPECIFICATIONS General brake fluid   BB00.40-P-0330-01A
6 REFER TO SPECIAL TOOLS Connect filler/bleeder unit on brake fluid reservoir (1)
000 588 01 82 00 Filling unit		 IMPORTANT Pay attention to manufacturer's operating instructions. WS25.00-P-0016B
7 Switch on filler/bleeder unit
8 Lift vehicle on vehicle lift
9 Carrying out bleeding operation   AR42.10-P-0010-02SR
REFER TO SPECIAL TOOLS 000 588 01 82 00 Filling unit   WS25.00-P-0016B
TORQUE SPECIFICATION Bleed screw on wheel brake cylinder *BA42.10-P-1001-08F
TORQUE SPECIFICATION Bleed screw at brake caliper *BA42.10-P-1001-10SR
10 Switch off filler/bleeder unit
11 Lower vehicle with lifting platform
12 Disconnect filler/bleeder unit from brake fluid reservoir (1)
13 Operate brake pedal several times and then hold the pedal pressure IMPORTANT Hold the pedal pressure until a hard, constant pressure point stabilizes.
If the pressure in the brake system drops or the brake pedal sinks:
↓
Locate and repair leak.
INSPECT Check
14 Check entire hydraulic brake system for leaks, especially any previously loosened, disconnected or replaced components In the event of leakage:
↓
Locate and repair leak.
15
REFER TO CAPACITIES & SPECIFICATIONS		 Check fluid level in brake fluid reservoir (1) Brake fluids (DOT 4 plus)   BB00.40-P-0331-00A
REFER TO CAPACITIES & SPECIFICATIONS General brake fluid IMPORTANT The fluid level must be between the "MINI" and "MAXI" marks.
If the fluid level deviates:
↓
Correct fluid level in brake fluid reservoir (1).		 BB00.40-P-0330-01A
INSTALLING Install
16 Screw cap (2) onto brake fluid reservoir (1)
CLEAN Clean
17 Clean cap (2) and brake fluid reservoir (1)
18 Install maintenance flap
BRAKE CYLINDER

Number Designation Model 453
BA42.10-P-1001-08F Bleed screw on wheel brake cylinder Nm 7, 5
FRONT AXLE BRAKE CALIPER

Number Designation Model 453
BA42.10-P-1001-10SR Bleed screw at brake caliper Nm 10
