Retrofit Decorative Foils To Body - AZ88.00-P-0100SRA

MODEL 453.3

except CODE E23 (solid roof)

Courtesy of MERCEDES-BENZ USA

	Notes on applying decorative foil to paint and glass		AH00.00-P-0018-01A
	Remove
1	Remove front left spray nozzle
	Check
2	Check surface to be bonded for paint damage	In the event of complaints ↓ Repair paint damage
	Clean
3	Clean and degrease surface to be bonded	Surfaces must be free of dust, grease, wax and silicone. Otherwise adhesion problems can occur or bubbles can form.
	Attachment
4	Retrofit decorative foils to service flap		AZ88.00-P-0100-08SRA
5	Retrofit decorative foils to roof		AZ88.00-P-0100-01SRA
6	Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Lift vehicle on vehicle lift	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. We recommend using a drive-on or cylinder-type lift to attach the decorative foil in the area of the doors.	AS00.00-Z-0010-01A
7	Retrofit decorative foils to side of body		AZ88.00-P-0100-06SRA
8	Lower vehicle with lifting platform
	Install
9	Install front left spray nozzle	Carefully insert spray nozzle Otherwise the decorative foil can be damaged
	Update Vehicle Documentation (Veda)

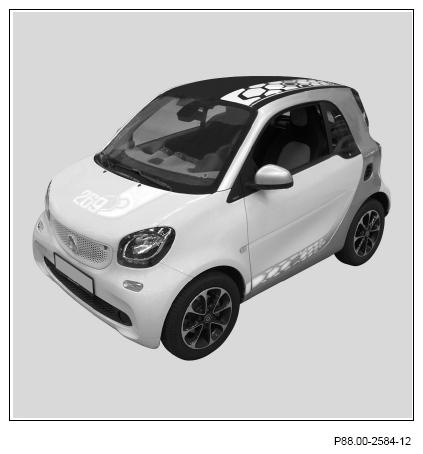

10	Enter special equipment into the on-line vehicle data card	Code X94 (Foil kit hexagon gray)  or Code X95 (Foil kit hexagon white)
11	Attach notes "Decorative foils on body according to AZ88.00-P-0100SRA retrofitted under field organization texts to KG 72, 74, 88 and 65 or 78.

PARTS ORDERING NOTE

Part no.	Designation	Quantity
KG 98	Overlay	1
