Retrofit Decorative Foils To Service Flap - AZ88.00-P-0100-08SRA

MODEL 453.3

except CODE E23 (solid roof)

Courtesy of MERCEDES-BENZ USA

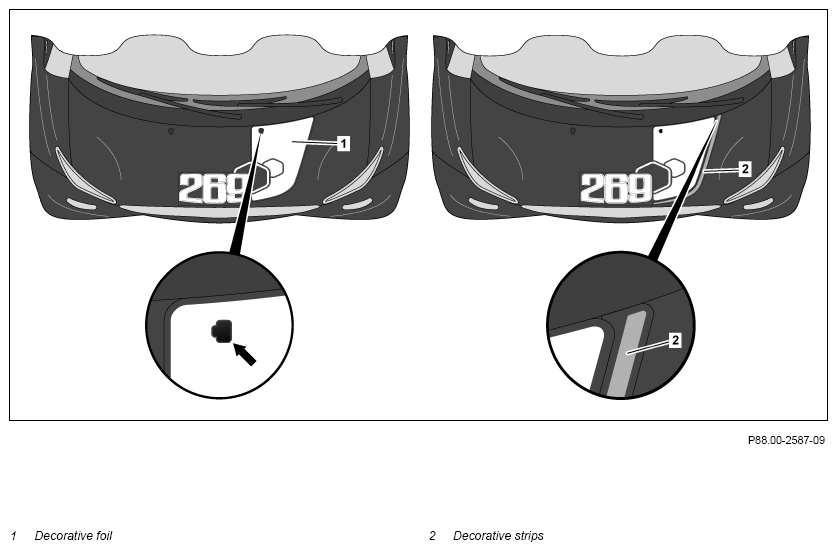

1. Position decorative foil (1) as shown, position and mark adhesive position with suitable adhesive strips on service flap.

   Helper required. The carrier paper on the decorative foil (1) should make contact with the edge of the service flap and surround the opening (arrow) in the left spray nozzle uniformly.

2. Remove protective foil from decorative foil (1) and moisten decorative foil (1) with solution of water/detergent.

   Helper required.

3. Glue decorative foil (1) according to attached adhesive strips and smooth with squeegee.

   Do not yet remove carrier paper.

   Otherwise it is no longer possible to align the decorative strips (2).

4. Remove attached adhesive strips.
5. Remove protective foil from decorative strips (2) and moisten decorative strips (2) with solution of water/detergent.

   Helper required.

6. Glue on decorative strips (2) as shown and smooth with squeegee.

   The carrier plate of the decorative strip (2) should make uniform contact with the carrier paper of the decorative foil (1).

7. Remove carrier paper on decorative foil (1) and decorative strip (2).
