Retrofit Decorative Foils To Side Of Body - AZ88.00-P-0100-06SRA

MODEL 453.3

except CODE E23 (solid roof)

Courtesy of MERCEDES-BENZ USA

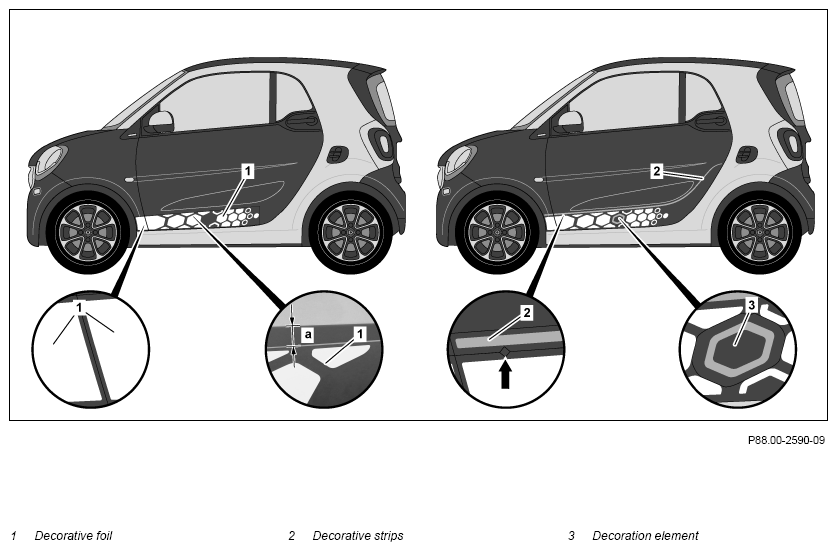

1. Position decorative foil (1) as shown and mark adhesive point with suitable adhesive tape.

   Dimensions  : a = 25_mm

   Helper required. The carrier paper on the decorative foil (1) should run at uniform distance to the contour of the door.

   The gap between the fender and the door should run parallel to the edges of the decorative foil (1) and at a uniform distance to the gap.

2. Remove protective foil from decorative foil (1) and moisten decorative foil (1) with solution of water/detergent.

   Helper required.

3. Glue decorative foil (1) according to attached adhesive strips and smooth with squeegee.

   Do not yet remove carrier paper.

   Otherwise it is no longer possible to align the decorative strips (2).

   Helper required.

4. Remove attached adhesive strips.
5. Remove protective foil from decorative strips (2) and moisten decorative strips (2) with solution of water/detergent.

   Helper required.

6. Glue on decorative strips (2) as shown and smooth with squeegee.

   Helper required. The markings (arrows) should coincide.

   The carrier plate of the decorative strip (2) should make uniform contact with the carrier paper of the decorative foil (1).

7. Remove carrier paper on decorative foil (1) and decorative strip (2).
8. Remove protective foil from decorative element (3).
9. Moisten decorative element (3) with solution of water/detergent.
10. Align decorative element (3) on sample of decorative foil (1) as shown, glue on and smooth with squeegee.
11. Remove carrier plate on decorative foil (3).
12. Perform operation steps 1 to 11 on opposite side of vehicle.
