Retrofit Decorative Foils To Roof - AZ88.00-P-0100-01SRA

MODEL 453.3

except CODE E23 (solid roof)

Courtesy of MERCEDES-BENZ USA

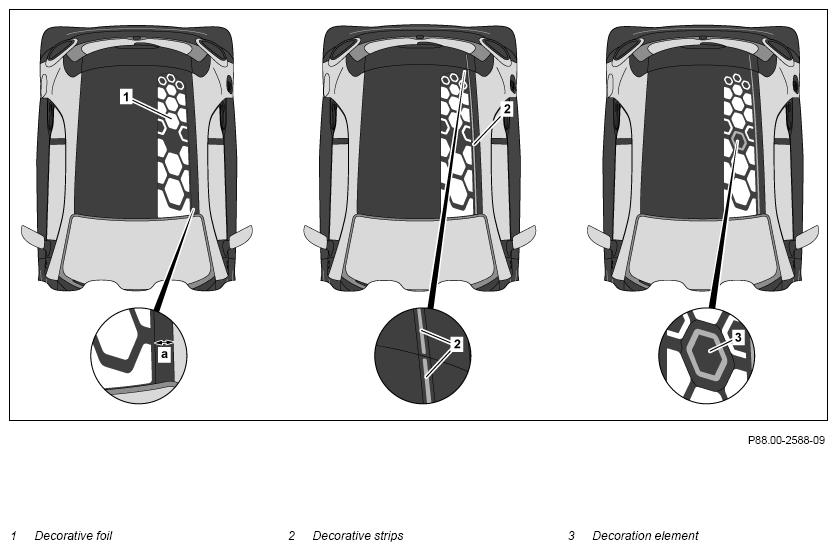

1. Position decorative foil (1) as shown and mark adhesive point with suitable adhesive tape.

   Dimensions  : a = 70 mm

   The carrier paper on the decorative foil (1) must make uniform contact with the front edge of the roof and run at uniform distance to the left roof edge.

2. Remove protective foil from decorative foil (1) and moisten decorative foil (1) with solution of water/detergent.

   Helper required.

3. Glue decorative foil (1) according to attached adhesive strips and smooth with squeegee.

   Do not yet remove carrier paper.

   Otherwise it is no longer possible to align the decorative strips (2).

   Helper required.

4. Remove attached adhesive strips.
5. Remove protective foil from decorative strips (2) and moisten decorative strips (2) with solution of water/detergent.

   Helper required.

6. Glue on decorative strips (2) as shown and smooth with squeegee.

   Helper required. The carrier plate of the decorative strip (2) should make uniform contact with the carrier paper of the decorative foil (1) and front edge of the roof.

7. Remove carrier paper on decorative foil (1) and decorative strip (2).
8. Remove protective foil from decorative element (3).
9. Moisten decorative element (3) with solution of water/detergent.
10. Align decorative element (3) on sample of decorative foil (1) as shown, glue on and smooth with squeegee.
11. Remove carrier plate on decorative foil (3).
