Remove/Install Seat Belt With Emergency Tensioning Retractor - AR91.40-P-0630SRA

MODEL 453.3/4

Shown on vehicle except code 460 (Canada version) and except code 494 (USA version)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  during testing and repair operations related to pyrotechnical components	Do not expose pyrotechnical components to temperatures above 100 °C or 212 °F. Disconnect current supply when working on such components.	AS91.00-Z-0008-01A
	Risk of injury  . Injury may result when the tension in the spring in the automatic belt retractor is released.	Never disassemble automatic belt retractors.	AS91.00-Z-0002-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Information, assessment and legal requirements when working with, handling and storing pyrotechnical components		AH91.00-Z-0000-10A
	Remove/install
1	Disconnect battery ground line		AR54.10-P-0003SR
2	Remove left and right side paneling in trunk	Model 453.3	AR68.30-P-4800SRA
		Model 453.4	AR68.30-P-4800SRC

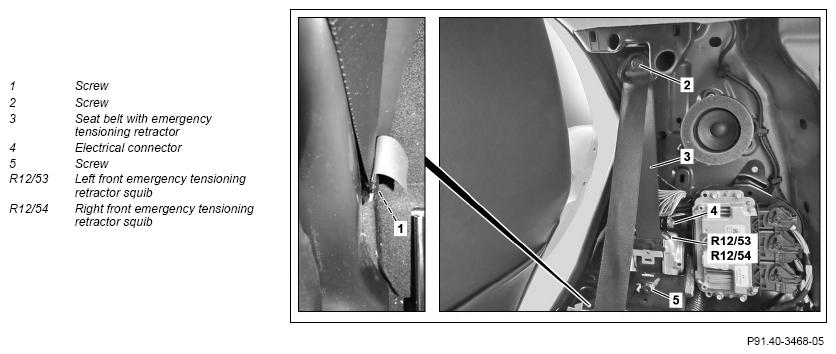

3.1	Remove screw/bolt (1) from belt end fitting	Model 453.3/4 except code 460 (Canada version) except code 494 (US version) Bolt, belt end fitting to B-pillar	*BA91.40-P-1004-01SR
3.2	Remove belt end fitting from front seat	Model 453.3/4 with code 460 (Canada version) Model 453.3/4 with code 494 (US version) : Check for correct routing of seat belt (3) and seat belt end fitting. Check lock of buckle in seat belt end fitting.	AR91.40-P-1030-02SR
4	Remove screw/bolt (2) from belt guide bracket	Bolt, belt guide bracket to B-pillar	*BA91.40-P-1005-01SR
5	Disconnect electrical connector (4) at left front emergency tensioning retractor squib (R12/53) or right front emergency tensioning retractor squib (R12/54)
6	Remove screw/bolt (5) and take out seat belt with emergency tensioning retractor (3)	Bolt, seat belt retractor to B-pillar	*BA91.40-P-1001-01SR
7	Install in the reverse order
	Check
8	Check supplemental restraint system using diagnostic system		AD00.00-P-2000-06SR
