Remove/Install Side Paneling In Trunk - AR68.30-P-4800SRC
MODEL 453.4

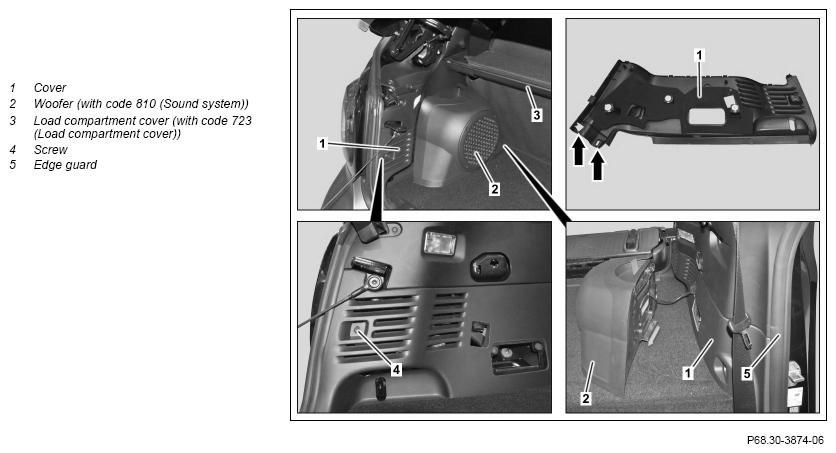

Shown with CODE 810 (Sound system) and code 723 (Load compartment cover)
| Remove/install | |||
| 1 | Move front seat toward front and fold over backrest | ||
| 2 | Remove load compartment cover (3) | Model 453.4 with code 723 (Luggage cover) |
|
| 3 | Remove woofer (2) | Model 453.4 with code 810 (Sound system) When removing paneling (1) on left side of vehicle. |
|
| 4 | Remove edge guard (5) in area of paneling (1) and remove paneling on door sill | ||
| 5 | Unclip rear paneling on upper door sill | ||
| 6 | Fold up clamping bracket on rear soft top | ||
| 7 | Unscrew bolt (4) | ||
| 8 | Fold floor covering toward front | ||
| 9 | Unclip and remove paneling (1) | Carefully handle paneling (1) in area of rear paneling of door sill. Otherwise the eyes (arrows) or catch hooks on the rear paneling of the door sill be damaged. |
|
| 10 | Install in the reverse order |
