Remove/Install Floor Covering - AR68.20-P-2040SR
MODEL 453
Shown on Model 453.0
| Remove/install | |||
| 1 | Remove front seats | AR91.10-P-1000SR | |
| 2 | Remove foot support on passenger side | AR68.30-P-1340SR | |
| 3 | Remove rear seat cushion | Model 453.0 | AR91.12-P-1021SR |
| 4 | Remove center console | AR68.20-P-2000SR | |
| 5.1 | Remove center mounting console reinforcement | Model 453 with code J58 (Center console with drawer) Model 453 with code J59 (Center armrest) |
AR68.20-P-2340SR |
| 5.2 | Remove front section of center console below center instrument panel | Model 453 with code J56 (Center console) |
|
| 6.1 | Partially detach door sill on left and right | Model 453.0 | AR68.30-P-4100SR |
| 6.2 | Remove left and right door sill | Model 453.3/4 Remove/install door sill molding |
AR68.30-P-4100SB |

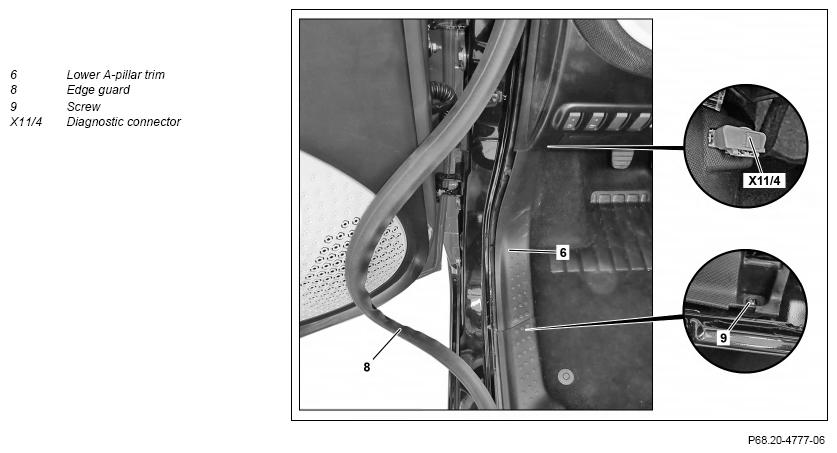

| 7 | Partially loosen edge guard (8) on left and right | ||
| 8 | Unscrew bolts (9) and unclip left and right bottom A-pillar paneling (6). | ||
| 9 | Unclip diagnostic connector (X11/4) toward inside | ||
| 10 | Remove bottom A-pillar paneling (6) on left and right | ||

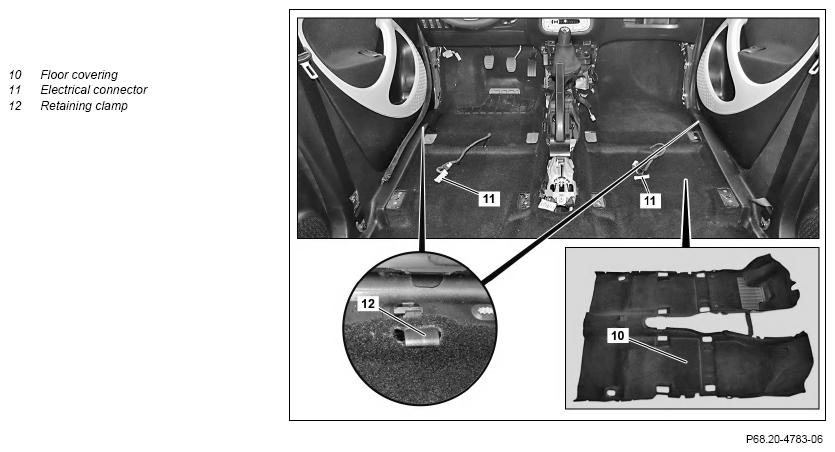

| 11 | Unhook floor covering (10) from retaining clips (12) | ||
| 12 | Guide electrical connectors (11) through floor covering (10) | ||
| 13 | Remove floor covering (10) | ||
| 14 | Install in the reverse order |
