Remove/Install Door Sill Molding - AR68.30-P-4100SB
MODEL 453.3/4
| Remove/install | |||
| 1 | Move seat to forward position | ||
| 2 | Release belt end fitting threaded connection | *BA91.40-P-1004-01SR | |
| 3 | Loosen lower B-pillar paneling | ||
| 4 | Move seat to rear-most position | ||

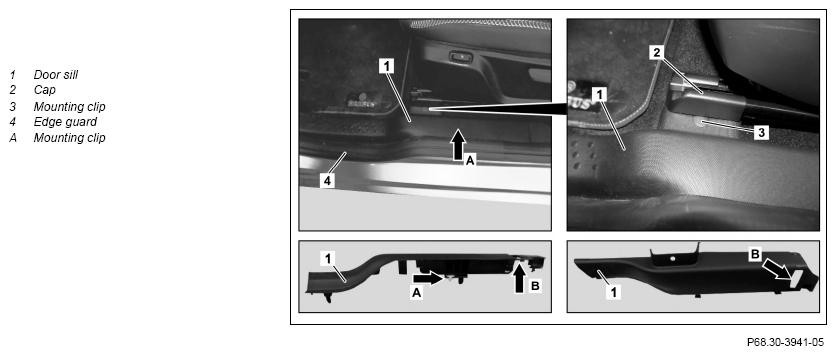

| 5 | Remove cap (2) from guide rail | Figure | |
| 6 | Loosen edge guard (4) on door in area of door sill (1) | ||
| 7 | Loosen retaining clip (3) | Figure | |
| 8 | Lift door sill (1), loosen retaining clip (A) | Figure | |
| 9 | Remove door sill (1) from B-pillar paneling in area of arrow B | ||
| 10 | Install in the reverse order |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 453.3 | Model 453.4 | |
|---|---|---|---|---|
| BA91.40-P-1004-01SR | Bolt, belt end fitting to B-pillar | Nm | 21 | 21 |
