Replace the oil pump chain - AR18.10-P-2140CMG
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINES 156 in MODEL 204, 212
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Remove oil pump | AR18.10-P-6020CMG | |

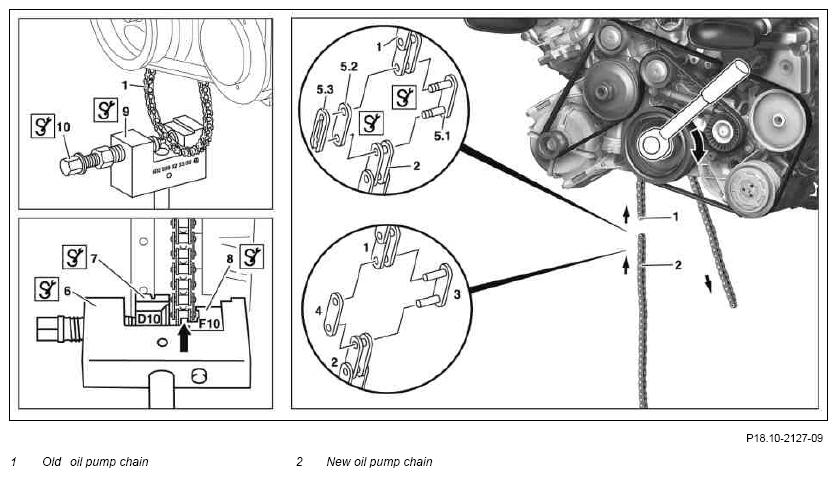

| 2 | Disconnect old pump chain (1) | AR18.10-P-2140-01AMG | |
| Figure | |||
| Figure | |||
| Figure | |||
| 3 | Draw in new oil pump chain (2) and rivet | AR18.10-P-2140-02AMG | |
| Figure | |||
| Figure | |||
| Figure | |||
| Figure | |||
| Figure | |||
| 4 | Install in the reverse order | ||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 5 | Conduct engine test run and check engine for leaks |
