Remove/install oil pump - AR18.10-P-6020CMG
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 156 in MODEL 204, 212

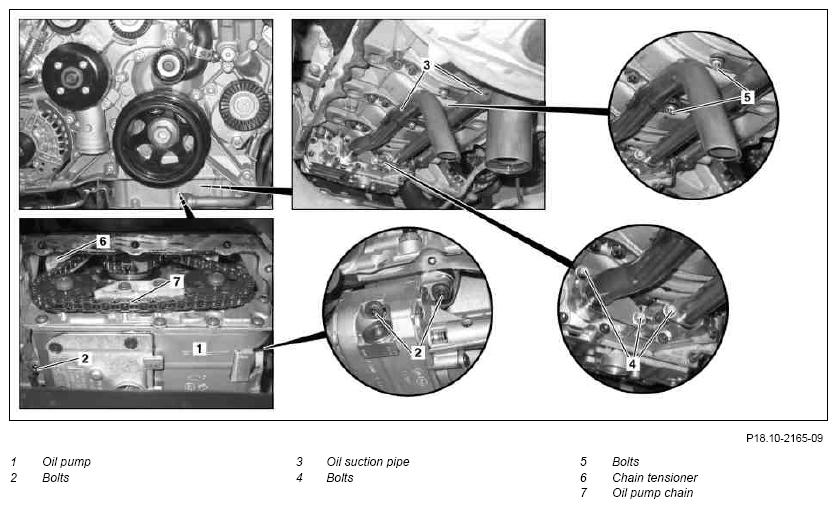

| Remove/install | |||
| 1 | Remove oil pan | AR01.45-P-7500CMG | |
| 2 | Remove bolts (4, 5) | *BA18.10-P-1004-01N | |
| *BA18.10-P-1005-01N | |||
| 3 | Detach oil suction pipe (3) from oil pump (1) and lower section of cylinder crankcase | ||
| 4 | Push back chain tensioner (6) and detach oil pump chain (7) from oil pump (1) | ||
| 5 | Remove bolts (2) for oil pump (1) | *BA18.10-P-1001-01N | |
| 6 | Remove oil pump (1) |
|
|
| 7 | Clean oil strainer for oil pump (1) | ||
| *BA18.10-P-1004-01N | |||
| Checking | |||
| 8 | Check oil pump gears for easy movement and damage | ||
| 9 | Install in the reverse order | ||
| 10 | Check engine oil level and adjust correctly | ||
| Engine oil and filter change | AP18.00-P-0101TMG | ||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 11 | Conduct engine test run and check engine for leaks whilst it is running |
OIL PUMP
| Number | Designation | Engine 156 | ||
|---|---|---|---|---|
| BA18.10-P-1001-01N | Fitted bolt, oil pump to crankcase | Nm | 20 | |
| BA18.10-P-1004-01N | Bolt, oil suction pipe to oil pump. | M6X16 | Nm | 8.5 |
| BA18.10-P-1005-01N | Oil suction pipe on crankcase bottom section | M6X16 | Nm | 8.5 |
