Oil line removal and installation - AR18.30-P-6850ELS
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 276.8 in MODEL 207, 212, 218
| Remove/install | |||
| 1 | Open engine hood and raise to vertical position | ENGINE 276.8 in MODEL 207, 212, 218 | |
| MODEL 207, 212 with ENGINE 276.8 | AR88.40-P-1000EW | ||
| 2 | Detach upper engine cover | ||
| 3 | Detach left or right air filter housing | AR09.10-P-1150ELS | |
| 4 | Detach left or right soundproofing over injectors | ||

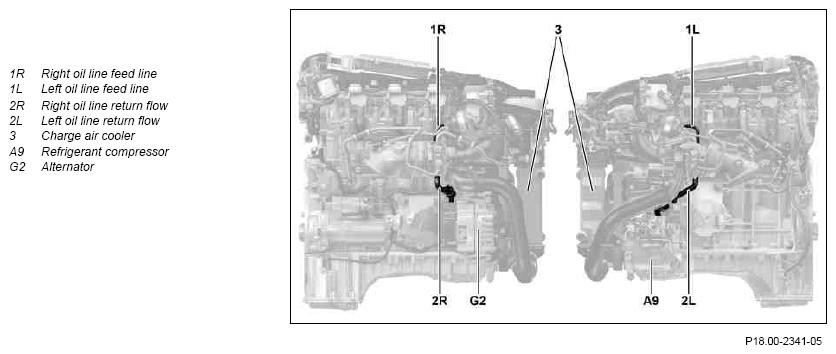

| 5 | Detach left or right feed line oil line (1L or 1R) from ATL and close off openings using suitable grommets | ||
| *BA09.40-P-1004-01W | |||
| Figure | |||
| 6 | Detach left or right feed line oil line (1L or 1R) from crankcase and close off openings using suitable grommets | ||
| *BA09.40-P-1005-01W | |||
| Figure | |||
| 7 | Remove left or right oil lines feed lines (1L or 1R) | ||
| 8 | Detach charge air cooler (3) at both charge air pipes and on throttle valve actuator and place with attached coolant lines to one side and secure against falling down | AR09.41-P-6819ELS | |
| 9 | Detention poly-V belt and detach at the alternator (G2) or A/C compressor (A9) | AR13.20-P-0001ELS | |
| 10 | Detach A/C compressor (A9), place with attached lines to one side and secure against falling down | *BA83.55-P-1001-01M | |
| 11 | Detach alternator (G2), place with attached lines to one side and secure against falling down | ENGINE 276.8 in MODEL 207 | AR15.40-P-5032ELA |
| ENGINE 276.8 in MODEL 212, 218 | AR15.40-P-5032EL | ||
| 12 | Detach right return flow oil line (2R) from ATL and close off openings using suitable grommets | ||
| *BA09.40-P-1006-01W | |||
| Figure | |||
| 13 | Detach right return flow oil line (2R) from crankcase and close off openings using suitable grommets | ||
| *BA09.40-P-1007-01W | |||
| Figure | |||
| 14 | Remove right-hand right return oil line (2R) | ||
| 15.1 | Open clamp on hose for the left return flow oil line (2L) | ENGINE 276.8 in MODEL 212, 218 with CODE M005 (4MATIC) | |
| 15.2 | Detach left return flow oil line (2L) on ATL | ENGINE 276.8 in MODEL 207 ENGINE 276.8 in MODEL 212, 218 without CODE M005 (4MATIC) |
|
| *BA09.40-P-1006-01W | |||
| 16 | Detach left return flow oil line (2L) on crankcase | ENGINE 276.8 in MODEL 207, 212 ENGINE 276.8 in MODEL 218 without CODE M005 (4MATIC) |
|
| *BA09.40-P-1007-01W | |||
| 17 | Remove left ATL | ENGINE 276.8 in MODEL 212, 218 with CODE M005 (4MATIC) | |
| AR09.40-P-6025ELS | |||
| 18 | Detach left return flow oil line (2L) on crankcase and remove upwards | ENGINE 276.8 in MODEL 212, 218 with CODE M005 (4MATIC) | |
| *BA09.40-P-1007-01W | |||
| 19 | Detach left return flow oil line (2L) on ATL and remove | ENGINE 276.8 in MODEL 212, 218 with CODE M005 (4MATIC) | |
| *BA09.40-P-1006-01W | |||
| 20 | Install in the reverse order | ||
| 21 | Check engine oil level; correct if necessary | ||
| AP18.00-P-0101CWZ | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 22 | Carry out an engine test run, checking the engine for proper operation and leaktightness |
TURBOCHARGER
| Number | Designation | ENGINE 276.8 | |
|---|---|---|---|
| BA09.40-P-1004-01W | Bolt, oil feed line to turbocharger | Nm | 9 |
TURBOCHARGER
| Number | Designation | ENGINE 276.8 | |
|---|---|---|---|
| BA09.40-P-1005-01W | Bolt, oil feed line to cylinder head | Nm | 14 |
TURBOCHARGER
| Number | Designation | ENGINE 276.8 | |
|---|---|---|---|
| BA09.40-P-1006-01W | Bolt, oil return flow line to turbocharger | Nm | 11 |
TURBOCHARGER
| Number | Designation | ENGINE 276.8 | |
|---|---|---|---|
| BA09.40-P-1007-01W | Bolt, oil return line to crankcase | Nm | 9 |
REFRIGERANT COMPRESSOR
| Number | Designation | ENGINE 276 | |
|---|---|---|---|
| BA83.55-P-1001-01M | Bolt, refrigerant compressor to timing case/crankcase/engine support | Nm | 20 |
