Remove/install right trailer hitch longitudinal member - AR31.30-P-0006EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.0/2 with CODE 550 (Trailer coupling)
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Notes on installing a trailer hitch | AH31.10-P-1000-02CW | ||
| Remove | |||
| 1 | Remove rear bumper | AR88.20-P-2200EW | |
| 2 | Remove cover in the lining on the right-hand side of the trunk or load compartment | ||
| 3 | Remove spare tire | with CODE 690 (emergency spare tire (minispare)) with CODE R66 (Run-flat tire) | |

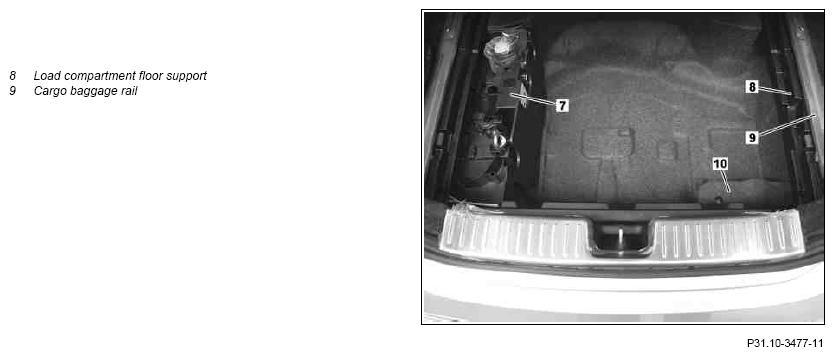

| 4 | Remove right cargo baggage rail (9) | with CODE 942 (EASY-PACK fixkit) | |
| 5 | Detach right load compartment floor support (8) | ||

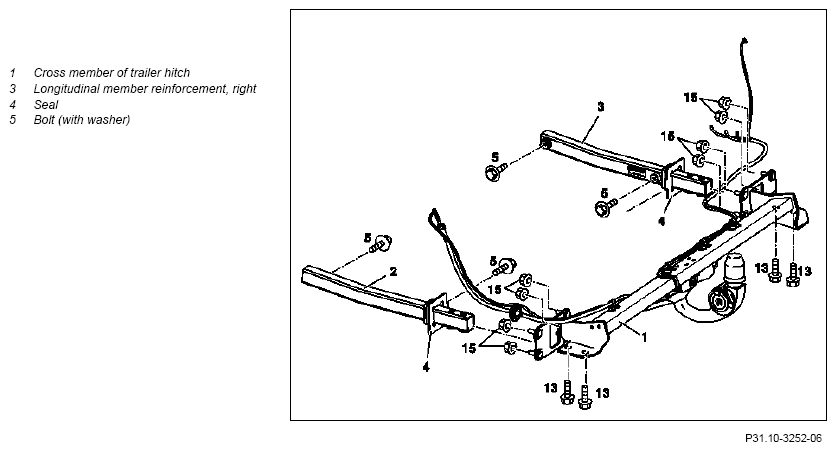

| 6 | Remove crossmembers of the trailer hitch (1) | AR31.30-P-0007EW | |
| 7 | Unscrew screws/bolts (5) of the right-hand longitudinal member reinforcement (3) | ||
| 8 | Pull right longitudinal member reinforcement (3) with seal (4) out of right vehicle longitudinal member and remove | ||
| 9 | Remove seal (4) from right longitudinal member reinforcement (3) | ||
| Install | |||
| 10 | Recut thread for bolts (5) of right longitudinal member reinforcement (3) | ||
| 11 | Slide seal (4) over right longitudinal member reinforcement (3) | ||
| 12 | Slide right longitudinal member reinforcement (3) into right vehicle longitudinal member | ||
| 13 | Position right longitudinal member reinforcement (3) on vehicle longitudinal member, and screw in bolts (5) with washers up to the contact surface | ||
| 14 | Tighten bolts (5) on right longitudinal member reinforcement (3) | *BA31.11-P-1003-01J | |
| 15 | Install crossmember for trailer hitch (1) | AR31.30-P-0007EW | |
| 16 | Attach right load compartment floor support (8) | ||
| 17 | Install right cargo baggage rail (9) | with CODE 942 (EASY-PACK fixkit) | |
| 18 | Install spare tire | with CODE 690 (emergency spare tire (minispare)) with CODE R66 (Run-flat tire) | |
| 19 | Install rear bumper | AR88.20-P-2200EW | |
| 20 | Install cover in the lining on the right-hand side of the trunk or load compartment | ||
| Check | |||
| 21 | Conduct function check on mechanical swing-away trailer hitch | AR31.19-P-1450EW |
TRAILER HITCH MECHANISM
| Number | Designation | MODEL 212 | |
|---|---|---|---|
| BA31.11-P-1003-01J | Bolt, longitudinal member reinforcement to frame side member | Nm | 85 |
