Conduct function check on mechanical swing-away trailer hitch - AR31.19-P-1450EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 207.3/4 with CODE 550 (Trailer coupling)

MODEL 212.0/2 with CODE 550 (Trailer coupling)

Shown on model 212.0

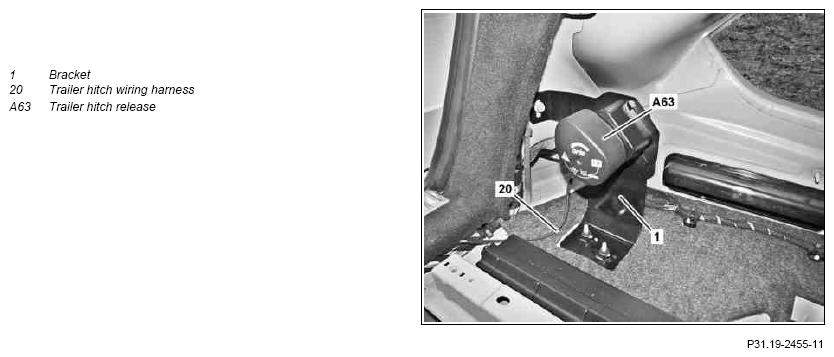

Fig 1: Checking Conduct Function On Mechanical Swing-Away Trailer Hitch - Shown On Model 212.0

Courtesy of MERCEDES-BENZ USA

	Check
1	Open cover in paneling at left side in luggage compartment or load compartment
2	Unlock ball neck	The light-emitting diode (arrow) starts to flash at the trailer hitch release (A63) when the ball neck is not engaged. A warning message appears in the instrument cluster.
3	Engage ball neck in one of the two end positions	Light-emitting diode at trailer hitch release (A63) goes out. The warning message in the instrument cluster disappears.
4	Close cover in paneling at left side in luggage compartment or load compartment
