Remove/install trailer hitch crossmember - AR31.30-P-0007EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.0/2 with CODE 550 (Trailer coupling)
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Notes on installing a trailer hitch | AH31.10-P-1000-02CW | ||
| Remove | |||
| 1 | Switch off all electrical consumers and the ignition | ||
| 2 | Remove rear bumper | AR88.20-P-2200EW | |
| 3 | Remove impact absorber | ||
| 4 | Release exhaust rubber mounts on rear muffler | ||
| 5 | Disconnect operating cable from the trailer hitch lock | AR31.11-P-8010EW | |
| 6 | Remove trailer socket on crossmember (1) | AR31.19-P-1350EW | |
| 7 | Loosen trailer hitch wiring harness at crossmember (1) | ||

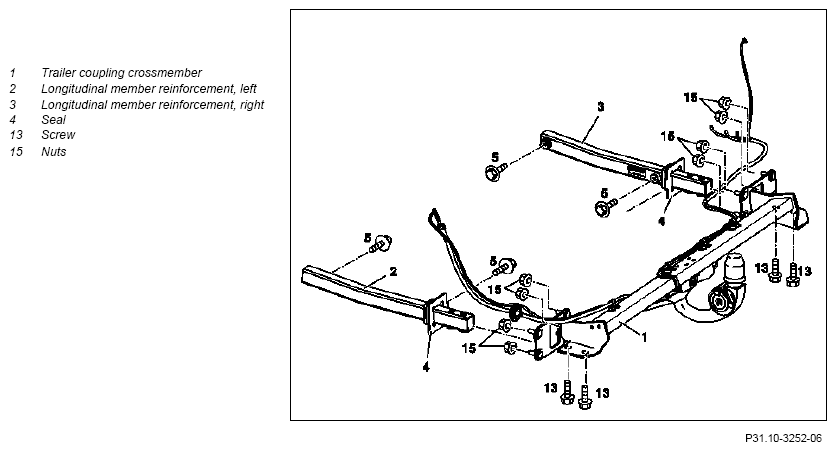

| 8 | Unscrew nuts (15) | ||
| 9 | Remove screws/bolts (13) | ||
| 10 | Remove crossmember of trailer hitch (1) | ||
| Install | |||
| 11 | Recut thread for screws/bolts (13) on left longitudinal member reinforcement (2) or right longitudinal member reinforcement (3) | ||
| 12 | Position trailer hitch crossmember (1) | ||
| 13 | Tighten screws/bolts (13) up to stop | ||
| 14 | Screw in nuts (15) up to stop | ||
| 15 | Align trailer hitch | ||
| 16 | Tighten nuts (15) | *BA31.11-P-1002-01J | |
| 17 | Tighten bolts (13) | *BA31.11-P-1001-01J | |
| 18 | Connect the operating cable of the trailer hitch lock | AR31.11-P-8010EW | |
| 19 | Attach trailer hitch wiring harness to trailer hitch crossmember (1) | ||
| 20 | Attach trailer socket (X58) to trailer hitch crossmember (1) | AR31.19-P-1350EW | |
| 21 | Fix exhaust rubber mount to rear muffler | ||
| 22 | Install impact absorber | ||
| 23 | Install rear bumper | AR88.20-P-2200EW | |
| Check | |||
| 24 | Conduct function check on mechanical swing-away trailer hitch | AR31.19-P-1450EW | |
| 25 | Perform function test of light signals at trailer hitch socket |
TRAILER HITCH MECHANISM
| Number | Designation | MODEL 212 | |
|---|---|---|---|
| BA31.11-P-1001-01J | Bolt, trailer hitch to longitudinal member reinforcement | Nm | 110 |
TRAILER HITCH MECHANISM
| Number | Designation | MODEL 212 | |
|---|---|---|---|
| BA31.11-P-1002-01J | Nut, trailer hitch to rear center panel | Nm | 85 |
