Retrofit mechanical swing-away trailer hitch - AN31.10-P-0001EW

MODEL 212.0## (except 212.007/074/075/076/077/092/095/098) 1# without CODE 1U9 (Lastenstufen-Konzept) without CODE 460 (Canada version) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 770 (AMG 48.3 cm (19") alloy wheels in 7-twin-spoke design) without CODE 871 (Sensor system for trunk lid opening/closing) without CODE P25 (BlueEFFICIENCY Edition) without CODE R17 (5-double-spoke light-alloy wheels 48.3 cm (19")) without CODE Z04 (High protection B4)

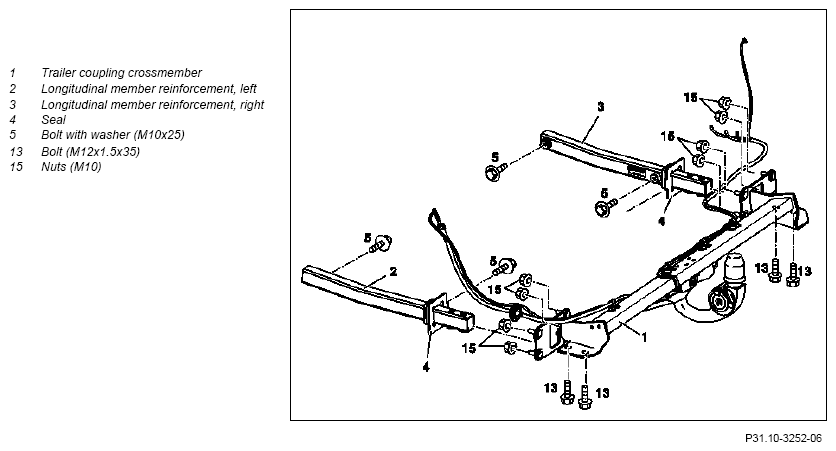

Fig 1: Mechanical Swing-Away Trailer Hitch Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

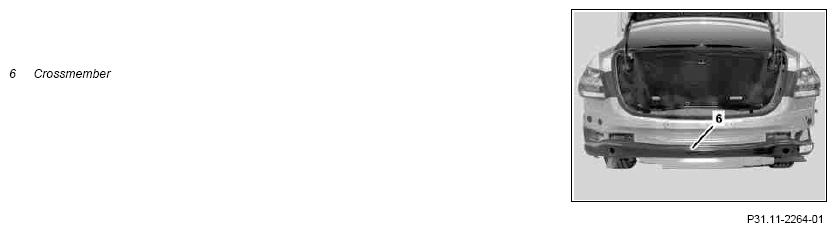

Fig 2: Mechanical Swing-Away Trailer Hitch Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
	Notes on installing a trailer hitch		AH31.10-P-1000-02CW
	Notes on EU type approval requirements		AH31.10-P-1000-03T
	Remove
1	Print out the document "Trailer hitch, certificate"	All non-EU countries
	Trailer coupling certificate	* Applies to Europe only Print out the document "Trailer hitch, certificate" and submit for the installation acceptance. For do-it-yourself installation, print out the detailed installation instructions and hand over to the customer.	OF31.10-P-1000-01D
2	Remove left and right trim in luggage compartment
			AR68.30-P-4600EW
		Vehicles without CODE 432 (Left and right dynamic multicontour seat) or without CODE 489 (AIRmatic (air suspension with continuous adjustment damping)) or without CODE 810 (Sound system) Replace the left trim in the luggage compartment.
3	Remove rear SAM control module with fuse and relay module
			AR54.21-P-1258EW
		Check in the EPC if the rear SAM control unit with fuse and relay module installed in accordance with the vehicle equipment can be used for the retrofitting of the trailer hitch (AHV). If necessary, the rear SAM control unit with fuse and relay module may have to be removed and replaced with a unit compatible with the trailer hitch. If the rear SAM control unit with fuse and relay module does not need to be replaced, just detach it and put aside.
4	Remove on-board electrical system battery	MODEL 212.0 with ENGINE 273
			AR54.10-P-0005EW
5	Remove rear bumper
			AR88.20-P-2200EW
6	Remove exhaust rubber bushings on rear muffler	Left on a single-pipe exhaust system. Left and right on a twin-pipe exhaust system.
7	Remove crossmember (6)	Cross member (6) is a delete component.
8	Check electric fan for compatibility; replace if necessary	Check in the EPC if the electric fan installed in accordance with the vehicle equipment can be used for the retrofitting of the trailer hitch (AHV). If necessary, the electric fan may have to be removed and replaced with a unit that is compatible with the trailer hitch.
	Install
9	Retrofit mechanical detachable parts		AN31.11-P-8080-05EW
		Nut, trailer hitch to rear center panel	*BA31.11-P-1002-01J
		Bolt, trailer hitch to longitudinal member reinforcement	*BA31.11-P-1001-01J
		Bolt, longitudinal member reinforcement to frame side member	*BA31.11-P-1003-01J
10	Retrofit trailer hitch control unit		AN31.19-P-8080-05EW
		Vehicles without CODE 863 (Digital/analog TV tuner) and without CODE 872 (Electric seat heater for left and right rear seat) Order trailer hitch control unit bracket separately.
11	Retrofit trailer hitch wiring harness		AN31.19-P-8100-05EW
		Wiring harness repair kit, basic	Figure
		New passenger car wiring harness repair kit	Figure
12	Retrofit release lever		AN31.11-P-8080-06EW
	Risk of explosion  caused by paint vapors igniting. Risk of poisoning  caused by inhaling paint vapors.	No smoking! No open fire! Use respiratory protection, protective clothing, gloves, safety glasses and skin cream. Ensure that the area is well ventilated.	AS98.00-Z-0002-01A
13	Paint bumper on rear lower section	MODEL 212.0## (except 212.002/003/005) 1# with CODE 950 (AMG sport package) Use only paint and paint system approved by Daimler AG. The Daimler AG painting specifications must be observed. Check with the customer whether the rear lower section of the bumper is to be painted or not. Where applicable, do not perform this step.
14	Modify rear bumper	MODEL 212.0## (except 212.002/003/005) 1# with CODE 950 (AMG sport package)
			AN88.30-P-0007-01EX
15	Install remaining parts
16	Enter special equipment in online vehicle data card via vehicle documentation system (VeDoc)	Add:  CODE 550 (Trailer hitch)
17	Document retrofitted equipment in VeDoc	Attach note "Trailer hitch retrofitted as per AN31.10-P-0001EW " under field organization texts for design group 31.
18	Connect Star Diagnosis and select vehicle via the vehicle identification number (VIN)
			AD00.00-P-2000-04A
19	Perform variant coding with XENTRY using the software calibration number (SCN)	Variant coding must be carried out with XENTRY using the SCN for the following control unit: "Front SAM with fuse and relay module" Instrument cluster CGW
20	Disconnect Star Diagnosis
			AD00.00-P-2000-04A
21	Perform function test of light signals at trailer hitch socket		AN31.19-P-8100-06CW

Fig 3: Identifying Passenger Car Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Wiring Harness Repair Kit (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA
