Remove/install battery - AR54.10-P-0005EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 207, 212, 218

Shown on model 212 with battery in engine compartment

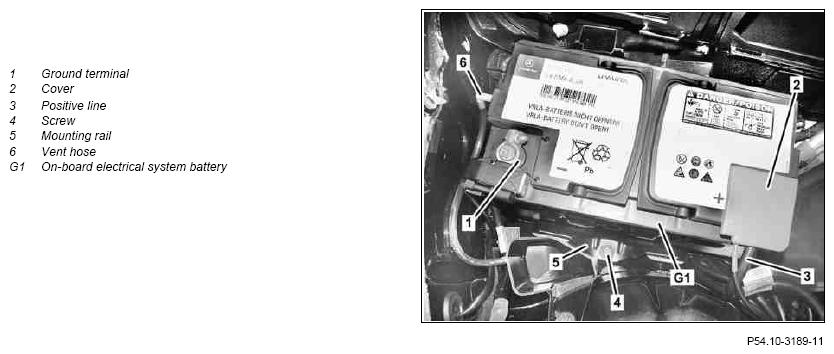

Fig 1: Battery Remove/Install Components - Shown On Model 212
G09976889Courtesy of MERCEDES-BENZ USA

Shown on model 212.072 up to MY 2011 with battery in trunk

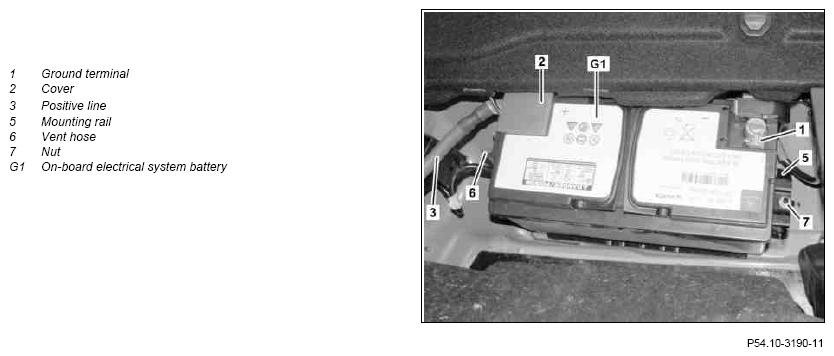

Fig 2: Battery Remove/Install Components - Up To MY 2011
G09976890Courtesy of MERCEDES-BENZ USA

Shown on model 212 with CODE ME04 (Mild hybrid drive) with battery in trunk

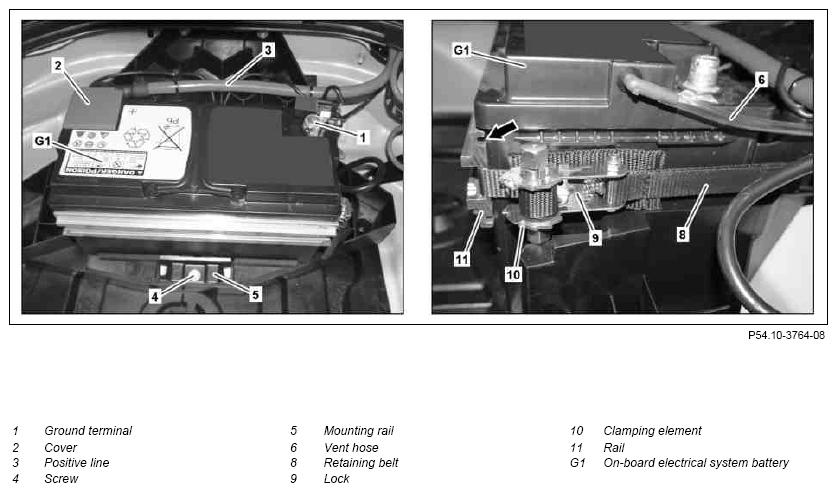

Fig 3: Battery Remove/Install Components - Shown On Model 212 With Code ME04
G09976891Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
DANGER Risk of explosion  from explosive gas. Risk of poisoning and caustic burns  from swallowing battery electrolyte. Risk of injury  through burns to skin and eyes from battery acid or when handling damaged lead-acid batteries No fires, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers. AS54.10-Z-0001-01A
NOTES Notes on battery   AH54.10-P-0001-01A
1 Detach ground terminal (1) from on-board electrical system battery (G1)   AR54.10-P-0003EW
2 Remove cover (2)
3 Disconnect positive line (3) of on-board electrical system battery (G1) TORQUE SPECIFICATION Nut, battery cable to on-board electrical system battery negative terminal/positive terminal *BA54.10-P-1006-01F
4 Disconnect vent hose (6) from on-board electrical system battery (G1) INSTALLATION NOTES
Check bleed hose (6) is correctly seated. Otherwise leaking battery vapor may damage the vehicle.
5 Unscrew bolt (4) or nut (7) of mounting rail (5) IMPORTANT Two bolts (4) are installed on MODEL 207.
TORQUE SPECIFICATION Nut/bolt, battery mounting rail *BA54.10-P-1001-01F
6 Remove mounting rail (5)
7 Release clamping element (10) on locking device (9) and remove retaining belt (8) MODEL 212
with CODE ME04 (Mild hybrid drive)
INSTALLATION IMPORTANT Clamp retaining belt (8) using clamping element (10) until the retaining belt (8) and the carrier (11) are fully fitted to the on-board electrical system battery (G1).
8 Unhook retaining belt (8) from body and remove with carrier (11) MODEL 212
with CODE ME04 (Mild hybrid drive)
INSTALLATION IMPORTANT Check carrier (11) is correctly seated in guide (arrow).
9 Remove on-board electrical system battery (G1)
10 Install in the reverse order
BATTERY

Number Designation MODEL 207 MODEL 212
BA54.10-P-1001-01F Nut/bolt, battery mounting rail Nm 21 21
BATTERY

Number Designation MODEL 218
BA54.10-P-1001-01F Nut/bolt, battery mounting rail Nm 21
BATTERY

Number Designation MODEL 207 MODEL 212
BA54.10-P-1006-01F Nut, battery cable to on-board electrical system battery negative terminal/positive terminal Nm 6 6
BATTERY

Number Designation MODEL 218
BA54.10-P-1006-01F Nut, battery cable to on-board electrical system battery negative terminal/positive terminal Nm 6
