Remove/install compressor - AR32.22-P-2001EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 with CODE 488 (Steel/air suspension)
MODEL 212 with CODE 489 (AIRMATIC)
MODEL 218 with CODE 488 (Steel/air suspension)
MODEL 218 with CODE 489 (AIRMATIC)
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating range of the mechanism when moving components. | AS00.00-Z-0009-01A | |
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Notes on AIRmatic | AH32.22-P-1000-02EW | ||
| Remove/install | |||

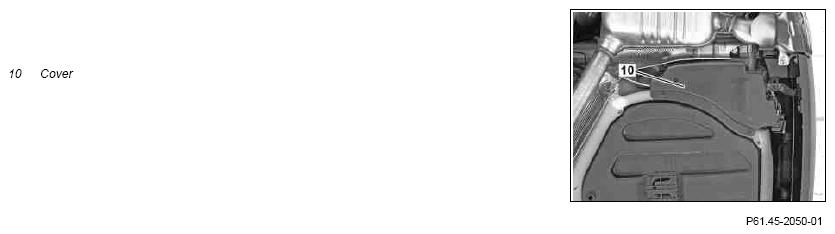

| 1 | Remove cover (10) | ||

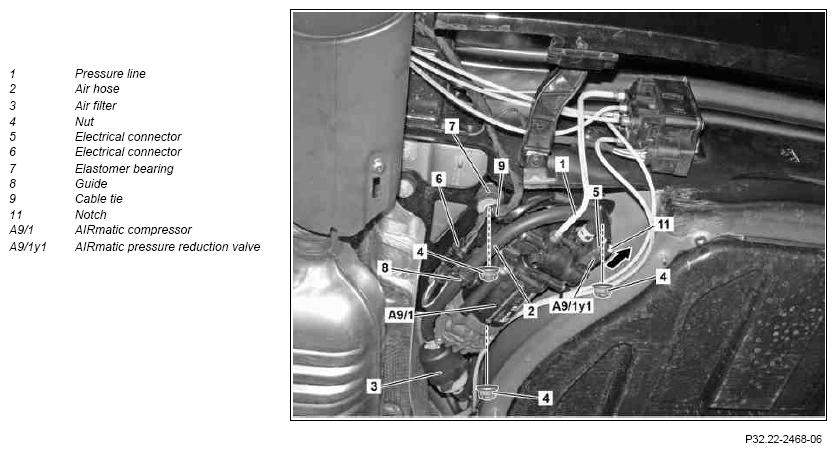

| 2 | Detach pressure line (1) from AIRmatic compressor (A9/1) | If pressure line connection or pressure line (1) is damaged: ↓ Repair AIRmatic pressure line connection. |
Fig 3 |
| AR32.22-P-2001-02SX | |||
| *BA32.22-P-1007-03E | |||
| Figure | |||
| Figure | |||
| 3 | Remove air hose (2) from guide (8) | ||
| 4 | Detach hose (2) from AIRmatic compressor (A9/1) | ||
| 5 | Release notch (11) in direction of arrow and detach electrical connection (5) from AIRmatic pressure reduction valve (A9/1y1) | ||
| 6 | Remove cable tie (9) | ||
| 7 | Detach electrical connection (6) | ||
| 8 | Unhook air filter (3) from compressor unit | ||
| 9 | Unscrew nuts (4) and remove AIRmatic compressor (A9/1) | *BA32.22-P-1001-03E | |
| 10 | Change mounting of electrical line on AIRmatic compressor (A9/1) | MODEL 212.0/1 with CODE 488 (Steel/air suspension) MODEL 212.0/1 with CODE 489 (AIRMATIC) When replacing AIRmatic compressor (A9/1). |
|
| AR32.22-P-2001-04EW | |||
| Check | |||
| 11 | Check elastomer bearing (7) of AIRmatic compressor (A9/1) | If a elastomer bearing (7) is hardened or damaged: ↓ Replace elastomer bearing for AIRmatic compressor (A9/1). |
|
| AR32.22-P-2011EW | |||
| 12 | Install in the reverse order | ||
| 13 | Replace AIRmatic air suspension compressor relay | When replacing AIRmatic compressor (A9/1). | |
| Relay assignment of fuse and relay box in left side of engine compartment | MODEL 212 with CODE 488 (Steel/air suspension) MODEL 212 with CODE 489 (AIRMATIC) |
GF54.15-P-1257-03FL | |
| Relay assignment of fuse and relay box in left side of engine compartment | MODEL 218 with CODE 488 (Steel/air suspension) MODEL 218 with CODE 489 (AIRMATIC) |
GF54.15-P-1257-03FQ | |
| Check | |||
| 14 | Check AIRmatic or steel/air suspension for leaktightness | MODEL 212 with CODE 488 (Steel/air suspension) MODEL 212 with CODE 489 (AIRMATIC) |
AR32.22-P-8100EW |
| MODEL 218 with CODE 488 (Steel/air suspension) MODEL 218 with CODE 489 (AIRMATIC) |
AR32.22-P-8100EL | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 15 | Perform engine test run and check AIRmatic or steel/air suspension for proper operation |
AIR SUSPENSION
| Number | Designation | MODEL 212 | MODEL 218 | |
|---|---|---|---|---|
| BA32.22-P-1001-3E | Nut, compressor mounting to compressor unit bracket | Nm | 6 | 6 |
AIR SUSPENSION
| Number | Designation | MODEL 212 | MODEL 218 | |
|---|---|---|---|---|
| BA32.22-P-1007-03E | Pressure line to compressor/valve unit | Nm | 3, 5 (±0, 5) | 3, 5 (±0, 5) |
