Retrofit iPhone kit - AZ82.70-P-0013EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.0/2 up to 4/13/13 up to model year 2014 with CODE 386 (Preinstallation for telephone "Handy", UPCI system) with CODE 518 (Media interface) without CODE 494 (US version) without CODE 498 (Japanese version)

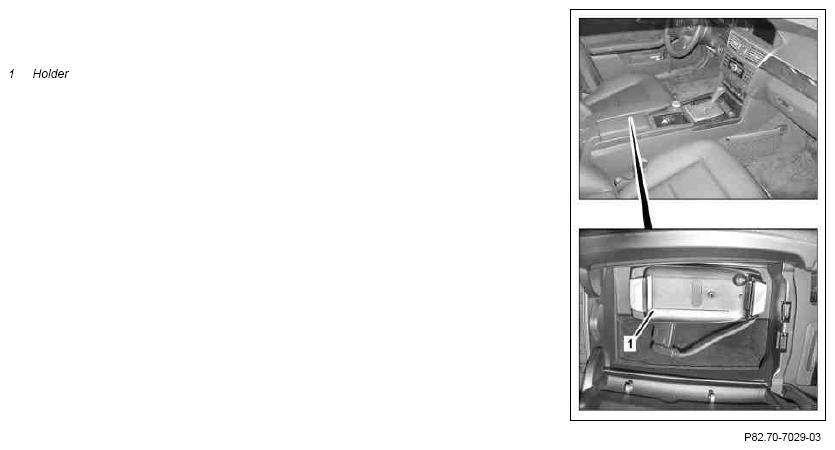

Shown on vehicle without CODE 279 (Electronic gear selector)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove | |||
| 1 | Remove cover with Bluetooth module and place to one side with electrical lines connected | MODEL 212.0/2 with CODE 279 (Electronic gear selector) | |
| MODEL 212.0 | AR82.70-P-8919EW | ||
| 2 | Remove center console | ||
| AR68.20-P-2000EW | |||
| 3 | Detach right cover below instrument panel | ||
| AR68.10-P-1520CW | |||
| Install | |||
| 4 | Retrofit iPhone kit wiring harness with cradle (1) | MODEL 212.0/2 except CODE 279 (Electronic gear selector) | AZ82.70-P-0001-04EW |
| MODEL 212.0/2 with CODE 279 (Electronic gear selector) Rechargeable screwdriver, rechargeable drill |
AZ82.70-P-0001-04EWA | ||
| 5 | Install the cover on the right under the dashboard | ||
| AR68.10-P-1520CW | |||
| 6 | Install center console | ||
| AR68.20-P-2000EW | |||
| Check | |||
| 7 | Check iPhone kit for proper operation |
PARTS ORDERING NOTE
| Part no. | Designation | Quantity |
|---|---|---|
| KG98 (see EPC) | iPhone kit | 1 |
| A 204 820 04 04 | Connection cable | 1 |
