Retrofit wiring harness - AZ82.70-P-0001-04EWA

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.0 /2 with CODE (279) Electronic gear selector

Connection scheme

Fig 1: Media Interface Electrical Connector Connection Diagram
G10241876Courtesy of MERCEDES-BENZ USA

Routing diagram

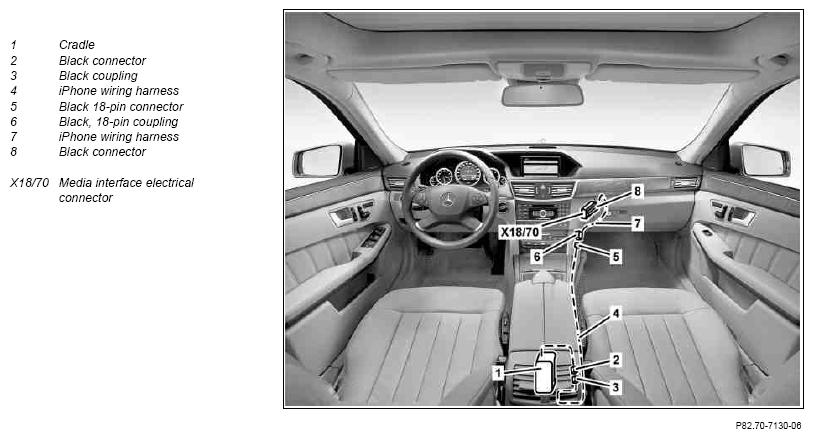

Fig 2: Media Interface Electrical Connector Routing Diagram
G10241877Courtesy of MERCEDES-BENZ USA
  1. Route black coupling (3) of iPhone wiring harness (4) through opening (arrow A) in rear stowage compartment of center console.

    IMPORTANT The length of the iPhone wiring harness (4) that is located in the rear stowage compartment must be 110 mm.

  2. Route iPhone wiring harness (4), as shown, at center console (11) and fix in place with felt tape.

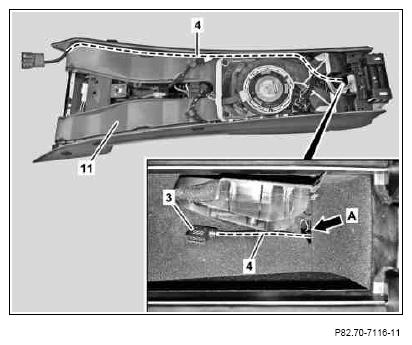

    Fig 3: Iphone Wiring Harness And Center Console
    G10241878Courtesy of MERCEDES-BENZ USA
  3. Open lid of glove compartment.
  4. Connect iPhone wiring harness (7) to media interface electrical connector (X18/70).
  5. Route iPhone wiring harness (7), as shown, and fix in place with felt tape (area A).

    NOTES Ensure that iPhone wiring harness (7) is not damaged by chafing, pinching or crushing, otherwise this must be replaced.

  6. Repeatedly open and close lid of glove compartment to check its unobstructed movement.

    IMPORTANT Reposition iPhone wiring harness (7) if necessary.

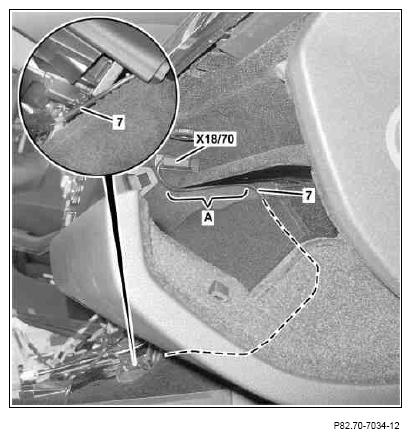

    Fig 4: Routing Iphone Wiring Harness
    G10241879Courtesy of MERCEDES-BENZ USA
  7. Insert and position center console (11).

    IMPORTANT Pay attention to installation position of plugs and couplings at center console (11) so that electrical connections can be made later.

  8. Make electrical connection between black 18-pin coupling (6) of iPhone wiring harness (7) and black 18-pin connector (5) of iPhone wiring harness (4).
  9. Wrap black 18-pin connector (5) of iPhone wiring harness (4) with felt tape and route below floor covering (12).

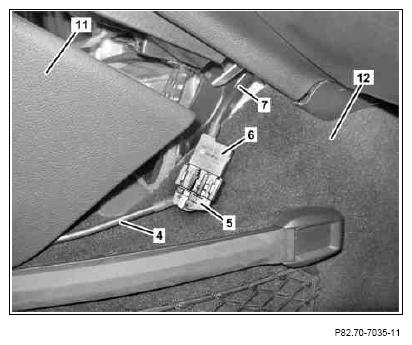

    Fig 5: Iphone Wiring Harness And Center Console Position
    G10241880Courtesy of MERCEDES-BENZ USA
  10. Make a 5 mm X 5 mm cutout in area shown (arrow B) on cover (13).

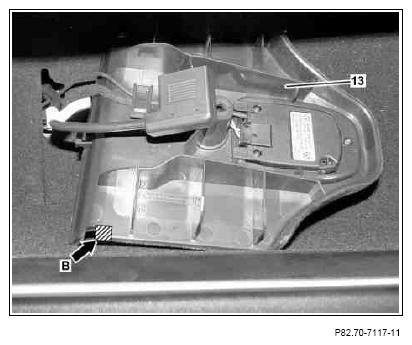

    Fig 6: Cutout Area Shown On Cover
    G10241881Courtesy of MERCEDES-BENZ USA
  11. Route iPhone wiring harness with black coupling (3) in previously made cutout and position cover (13).
  12. Tighten cover (13) with screw/bolt (arrow C).
  13. Tighten bracket (14) with screw/bolt (15).

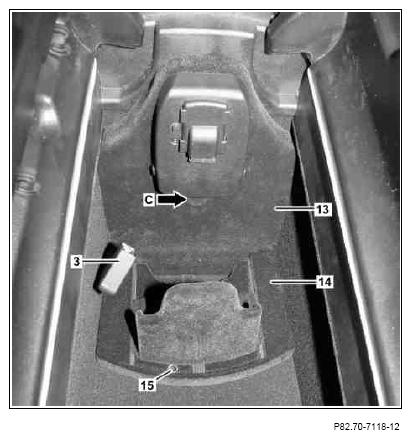

    Fig 7: Tightening Electronic Gear Selector Cover
    G10241882Courtesy of MERCEDES-BENZ USA
  14. Insert cradle (1) into Bluetooth module (A34/7).
  15. Route black connector (2) on right side in rear stowage compartment.
  16. Connect black connector (2) with black coupling (3) of iPhone wiring harness.
  17. Fix black coupling (3) and black connector (2) in place using suitable velcro strip in marked area (arrow D).

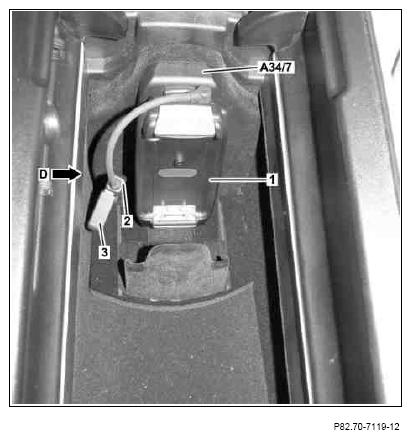

    Fig 8: Fixing Black Coupling And Connector Using Suitable Velcro Strip
    G10241883Courtesy of MERCEDES-BENZ USA
