Attaching front axle gear to front axle - AR33.30-P-0525-04CWX
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204, 205, 207, 212, 216, 217, 218, 221, 222 with TRANSMISSION 722.96
MODEL 205, 253 with TRANSMISSION 725.04
MODEL 212, 217, 218, 222 with TRANSMISSION 722.97
FRONT AXLE GEAR
| Number | Designation | Model 204 | Model 253 | |
|---|---|---|---|---|
| BA33.30-P-1006-03G | Collar bolt, front axle gear to support brace | Nm | 65 | 65 |
FRONT AXLE GEAR
| Number | Designation | Model 205 | Model 207 | |
|---|---|---|---|---|
| BA33.30-P-1006-03G | Collar bolt, front axle gear to support brace | Nm | 65 | 65 |
FRONT AXLE GEAR
| Number | Designation | Model 212 | Model 216 | |
|---|---|---|---|---|
| BA33.30-P-1006-03G | Collar bolt, front axle gear to support brace | Nm | 65 | 65 |
FRONT AXLE GEAR
| Number | Designation | Model 217 | Model 218 | |
|---|---|---|---|---|
| BA33.30-P-1006-03G | Collar bolt, front axle gear to support brace | Nm | 65 | 65 |
FRONT AXLE GEAR
| Number | Designation | Model 221 | Model 222 | |
|---|---|---|---|---|
| BA33.30-P-1006-03G | Collar bolt, front axle gear to support brace | Nm | 65 | 65 |
FRONT AXLE GEAR
| Number | Designation | Model 204 | Model 253 | ||
|---|---|---|---|---|---|
| BA33.30-P-1007-03G | Collar bolt, front axle gear to engine support | Stage 1 | Nm | 5 | 5 |
| Stage 2 | Nm | 50 | 50 | ||
| Stage 3 | ∠° | 95 | 95 | ||
FRONT AXLE GEAR
| Number | Designation | Model 205 | Model 207 | ||
|---|---|---|---|---|---|
| BA33.30-P-1007-03G | Collar bolt, front axle gear to engine support | Stage 1 | Nm | 5 | 5 |
| Stage 2 | Nm | 50 | 50 | ||
| Stage 3 | ∠° | 95 | 95 | ||
FRONT AXLE GEAR
| Number | Designation | Model 212 | Model 216 | ||
|---|---|---|---|---|---|
| BA33.30-P-1007-03G | Collar bolt, front axle gear to engine support | Stage 1 | Nm | 5 | 5 |
| Stage 2 | Nm | 50 | 50 | ||
| Stage 3 | ∠° | 95 | 95 | ||
FRONT AXLE GEAR
| Number | Designation | Model 217 | Model 218 | ||
|---|---|---|---|---|---|
| BA33.30-P-1007-03G | Collar bolt, front axle gear to engine support | Stage 1 | Nm | 5 | 5 |
| Stage 2 | Nm | 50 | 50 | ||
| Stage 3 | ∠° | 95 | 95 | ||
FRONT AXLE GEAR
| Number | Designation | Model 221 | Model 222 | ||
|---|---|---|---|---|---|
| BA33.30-P-1007-03G | Collar bolt, front axle gear to engine support | Stage 1 | Nm | 5 | 5 |
| Stage 2 | Nm | 50 | 50 | ||
| Stage 3 | ∠° | 95 | 95 | ||

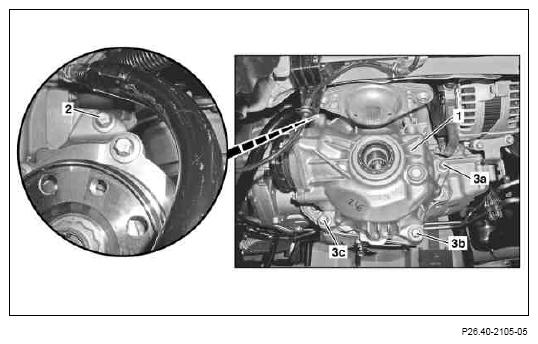

It is essential to observe tightening sequence.
If this is not observed, there may be noise or vibrations in the front axle transmission (1).
- Insert front axle transmission (1) and tighten screws/bolts (2, 3a, 3b, 3c) clockwise until finger-tight.
- Tighten screw/bolt (2) at engine support to stage 1.
.
- Tighten screws/bolts (3a, 3b, 3c) at support brace clockwise, starting with screw/bolt (3a).
- Tighten screw/bolt (2) to stage 2 and stage 3
