Remove/install oil feed line for turbocharger - AR09.40-P-6022CD
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 651 in MODEL 166, 172, 204, 207, 212, 218, 221
| Remove/install | |||
| Risk of death when touching components on vehicles with high-voltage on-board electrical system | Do not touch components and open lines of the high-voltage on-board electrical system. Persons who wear electronic implants (e.g. cardiac pacemakers), must not carry out any work on high-voltage on-board electrical systems. | AS54.00-Z-0001-01A | |
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| 1 | Remove power electronics with power distributor | ENGINE 651 in MODEL 212.098/298 | AR08.10-P-0011EH |
| 2 | Detach ground line of on-board electrical system battery | ENGINE 651 in MODEL 166, 172, 204, 207, 212 (except 212.098/298), 218, 221 | |
| ENGINE 651 in MODEL 166 | AR54.10-P-0003GZ | ||
| ENGINE 651 in MODEL 172 | AR54.10-P-0003W | ||
| ENGINE 651 in MODEL 204 | AR54.10-P-0003CW | ||
| ENGINE 651 in MODEL 207, 212 (except 212.098/298), 218 | AR54.10-P-0003EW | ||
| ENGINE 651 in MODEL 221 |
AR54.10-P-0003SX | ||
| 3 | Remove cylinder head cover trim | ENGINE 651 in MODEL 166, 172, 204, 207, 212 (except 212.098/298), 218, 221 | |
| 4 | Remove air filter housing | ENGINE 651 in MODEL 166, 172, 204, 207, 212 (except 212.098/298), 218, 221 | AR09.10-P-1150CD |

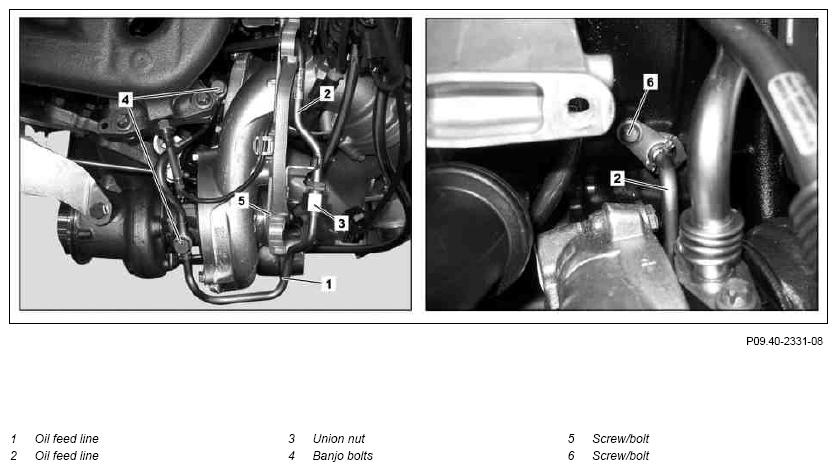

| 5 | Unscrew union nut (3) for oil feed line (1) | *BA09.40-P-1009-01P | |
| 6 | Remove banjo bolts (4) and oil feed line (1) | ||
| *BA09.40-P-1005-01P | |||
| Figure | |||
| 7 | Remove alternator | ENGINE 651 in MODEL 166, 172, 204, 207, 212 (except 212.098/298), 218, 221 ENGINE 651 in MODEL 166 |
AR15.40-P-5032GR |
| ENGINE 651 in MODEL 172, 204, 207, 212 (except 212.098/298), 218, 221 |
AR15.40-P-5032CD | ||
| 8 | Remove screw/bolt (5) | *BA09.40-P-1004-01P | |
| 9 | Remove screw/bolt (6) and pull out oil feed line (2) from crankcase | ||
| *BA09.40-P-1006-01P | |||
| 10 | Install in the reverse order | ||
| 11 | Check engine oil level, correct if necessary | The engine oil level must lie between "Min" and "Max". Engine damage can occur otherwise. |
|
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 12 | Perform an engine test run and check oil feed lines (1, 2) for leaktightness |
TURBOCHARGER
| Number | Designation | ENGINE 651 | ||
|---|---|---|---|---|
| BA09.40-P-1005-01P | Banjo bolt, lubricating oil line to turbocharger | Stage 1 | Nm | 9 |
| Stage 2 | ∠° | 90 | ||
TURBOCHARGER
| Number | Designation | ENGINE 651 | |
|---|---|---|---|
| BA09.40-P-1009-01P | Lubricating oil lines connection | Nm | 22 |
TURBOCHARGER
| Number | Designation | ENGINE 651 | |
|---|---|---|---|
| BA09.40-P-1004-01P | Lubricating oil line bracket fastening bolt | Nm | 9 |
TURBOCHARGER
| Number | Designation | ENGINE 651 | |
|---|---|---|---|
| BA09.40-P-1006-01P | Bolt, lubricating oil line to cylinder crankcase | Nm | 9 |
