Remove/install mixing chamber - AR09.20-P-1320CD

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 651 in MODEL 166, 172, 204, 207, 212, 218, 221

Shown on model 204.0

Fig 1: Mixing Chamber Remove/Install Components - Shown On Model 204.0
G09974853Courtesy of MERCEDES-BENZ USA

Model 172

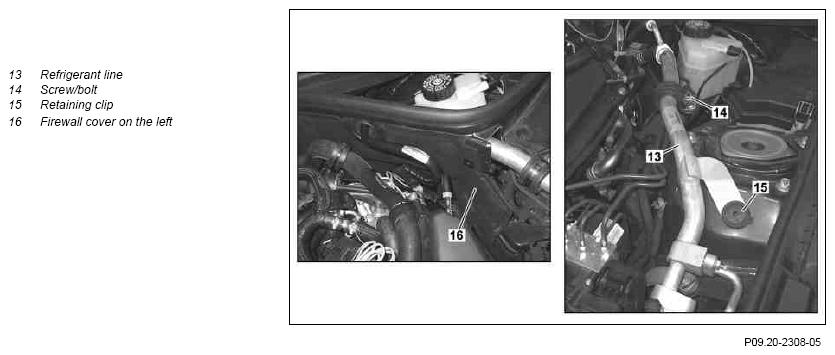

Fig 2: Mixing Chamber Remove/Install Components - Model 172
G09974854DANGERREMOVINGINSTALLINGINSTALLATION IMPORTANTTORQUE SPECIFICATIONTORQUE SPECIFICATIONTORQUE SPECIFICATIONINSTALLATION IMPORTANTTORQUE SPECIFICATIONTORQUE SPECIFICATIONTORQUE SPECIFICATIONINSTALLATION IMPORTANTTORQUE SPECIFICATIONTORQUE SPECIFICATIONINSTALLATION IMPORTANTTORQUE SPECIFICATIONCourtesy of MERCEDES-BENZ USA
DANGER Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. No parts of the body or limbs should be within the operating area when the components are moving. AS00.00-Z-0011-01A
REMOVINGINSTALLING Remove/install
1 Remove cylinder head cover trim
2 Remove firewall cover on the left (16) MODEL 172
3 Remove vacuum reservoir   AR07.09-P-0001CD
4 Remove power steering pump and place aside with lines attached Model 166, 172, 207, 212 (except 212.098/298), 218, 221
    Models 172, 207, 212 (except 212.098/298) AR46.30-P-0500EWI
    MODEL 221 AR46.30-P-0500SX
5 Remove screw/bolts (3, 4), swivel exhaust gas recirculation cooler (5) together with attached coolant lines upwards, place to one side and fix in place INSTALLATION IMPORTANT Replace seal.
    TORQUE SPECIFICATION Bolt, exhaust heat exchanger to valve housing *BA14.20-P-1001-01K
    TORQUE SPECIFICATION Bolt, support brace for vacuum reservoir and exhaust heat exchanger to Y-support brace *BA14.20-P-1006-01K
    TORQUE SPECIFICATION Bolt, exhaust heat exchanger support to oil filter module *BA14.20-P-1017-01K
6 Remove screw/bolts (1) and remove EGR line (2) INSTALLATION IMPORTANT Replace seals.
    TORQUE SPECIFICATION Bolt, exhaust gas recirculation pipe to charge air manifold *BA14.20-P-1008-01K
    TORQUE SPECIFICATION Bolt, exhaust gas recirculation pipe to valve housing *BA14.20-P-1009-01K
7 Remove screw/bolts (6) TORQUE SPECIFICATION Bolt, charge air manifold to charge air distribution line *BA09.41-P-1002-01N
8 Disconnect electrical connection (8)
9 Remove cable bracket (9) INSTALLATION IMPORTANT Attach cable bracket (9) at the same position again.
10 Remove screw/bolt (14), retaining clip (15) and place refrigerant line (13) to one side MODEL 172
TORQUE SPECIFICATION To ensure that access to screw/bolts (11) is given.
11 Remove screw/bolts (12) and place bracket to one side TORQUE SPECIFICATION Bolt, charge air manifold to charge air line *BA09.41-P-1004-01N
12 Unscrew screw/bolts (11) and take off mixing chamber (7) INSTALLATION IMPORTANT Replace seals.
    TORQUE SPECIFICATION Bolt, charge air manifold to fastening plate *BA09.41-P-1003-01N
13 Install in the reverse order
CHARGE AIR PIPE/CHARGE AIR COOLING

Number Designation ENGINE 651
BA09.41-P-1002-01N Bolt, charge air manifold to charge air distribution line Nm 9
CHARGE AIR PIPE/CHARGE AIR COOLING

Number Designation ENGINE 651
BA09.41-P-1003-01N Bolt, charge air manifold to fastening plate Nm 9
CHARGE AIR PIPE/CHARGE AIR COOLING

Number Designation ENGINE 651
BA09.41-P-1004-01N Bolt, charge air manifold to charge air line Nm 9
EXHAUST GAS RECIRCULATION

Number Designation ENGINE 651
BA14.20-P-1001-01K Bolt, exhaust heat exchanger to valve housing Nm 9
EXHAUST GAS RECIRCULATION

Number Designation ENGINE 651
BA14.20-P-1006-01K Bolt, support brace for vacuum reservoir and exhaust heat exchanger to Y-support brace Nm 9
EXHAUST GAS RECIRCULATION

Number Designation ENGINE 651
BA14.20-P-1008-01K Bolt, exhaust gas recirculation pipe to charge air manifold Nm 9
EXHAUST GAS RECIRCULATION

Number Designation ENGINE 651
BA14.20-P-1009-01K Bolt, exhaust gas recirculation pipe to valve housing Nm 9
EXHAUST GAS RECIRCULATION

Number Designation ENGINE 651
BA14.20-P-1017-01K Bolt, exhaust heat exchanger support to oil filter module Nm 20
