Remove/install power steering pump - AR46.30-P-0500EWI

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 172, 207, 212 with ENGINE 651

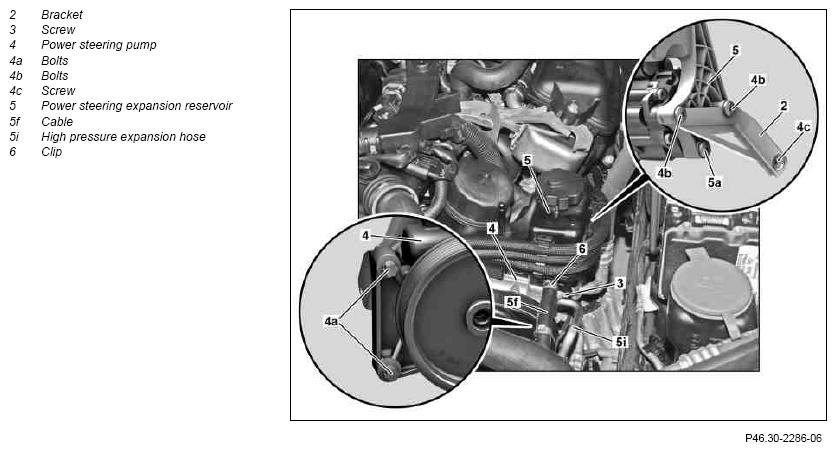

Fig 1: Power Steering Pump Remove/Install Components
G09976766Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
DANGER Risk of injury  to skin or eyes caused by hydraulic fluid spraying out under high pressure. Risk of poisoning  caused by swallowing hydraulic fluid Depressurize hydraulic system completely before starting any work on system. Wear protective clothing and safety glasses. AS00.00-Z-0013-01A
NOTES Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
    NOTES Before opening the hydraulic system the area surrounding the separation point should be cleaned thoroughly. Even the smallest dirt particles, introduced into the hydraulic components, can lead to malfunctions and a total failure of the hydraulic system.
1 Open engine hood Models 207, 212 AR88.40-P-1000EW
Model 172 AR88.40-P-1000V
2 Remove engine cover and engine air intake duct
3 Remove poly-V belt   AR13.20-P-0001OMA
4 Suction off oil from expansion reservoir (5) SPECIAL TOOL Figure
5 Unclip vacuum lines from expansion reservoir (5) and place to one side
6 Unfasten clamp (6) and detach line (5f) from expansion reservoir (5) IMPORTANT Seal connections. Check clamp (6) and line (5f) for condition, replace if necessary.
SPECIAL TOOL Figure
7 Detach high pressure expansion hose (5i) from power steering pump (4); to do this, remove bolt (3) IMPORTANT Collect escaping oil with dry cloth and seal connections immediately.
IMPORTANT Replace sealing ring of high pressure expansion hose (5i).
TORQUE SPECIFICATION *BA46.30-P-1004-01T
TORQUE SPECIFICATION *BA46.30-P-1004-01R
SPECIAL TOOL Figure
8 Disconnect electrical connector on power steering pump (4)
9 Remove bolts (4a) TORQUE SPECIFICATION *BA46.30-P-1002-01T
TORQUE SPECIFICATION *BA46.30-P-1010-01R
10 Remove bolt (4c), remove power steering pump (4) with expansion reservoir (5) and bracket (2) TORQUE SPECIFICATION *BA46.30-P-1010-01T
TORQUE SPECIFICATION *BA46.30-P-1011-01R
11 Remove bolts (4b) and remove bracket (2) from power steering pump (4) When replacing the power steering pump (4)
TORQUE SPECIFICATION *BA46.30-P-1009-01T
TORQUE SPECIFICATION *BA46.30-P-1012-01R
12 Detach expansion reservoir (5) from power steering pump (4) When replacing the power steering pump (4) AR46.25-P-1000EWI
13 Install in the reverse order
14 Fill and bleed power steering pump (4) Model 172 AR46.30-P-0010V
Model 207 AR46.30-P-0010CW
Model 212 AR46.30-P-0010EW
POWER STEERING PUMP

Number Designation Model 172
BA46.30-P-1004-01R Attachment, high pressure expansion hose of rack-and-pinion steering to power steering pump or tandem pump Union nut Nm 40
Banjo bolt Nm -
Bolt M8 Nm 18
BA46.30-P-1010-01R Screw/bolt, power steering pump to major assembly carrier Nm 20
BA46.30-P-1011-01R Bolt, power steering pump bracket to engine support Nm 20
POWER STEERING PUMP

Number Designation Model 172 without engine 152 Model 172 with engine 152
BA46.30-P-1004-01R Attachment, high pressure expansion hose of rack-and-pinion steering to power steering pump or tandem pump Union nut Nm 40 -
Banjo bolt Nm - -
Bolt M8 Nm 18 18
BA46.30-P-1010-01R Screw/bolt, power steering pump to major assembly carrier Nm 20 -
BA46.30-P-1011-01R Bolt, power steering pump bracket to engine support Nm 20 -
BA46.30-P-1012-01R Bolt, power steering pump bracket to power steering pump Nm - 14
POWER STEERING PUMP

Number Designation Model 212
BA46.30-P-1002-01T Screw/bolt, power steering pump to major assembly carrier Nm 20
BA46.30-P-1004-01T Mounting, high pressure expansion hose to power steering pump Union nut Nm 40
Banjo bolt Nm 45
Bolt M8 Nm 18
BA46.30-P-1009-01T Bolt, power steering pump bracket to power steering pump Nm 14
BA46.30-P-1010-01T Screw/bolt, power steering pump bracket to engine support/cylinder crankcase Nm 20
POWER STEERING PUMP

Number Designation Model 207
BA46.30-P-1004-01R Attachment, high pressure expansion hose of rack-and-pinion steering to power steering pump or tandem pump Union nut Nm -
Banjo bolt Nm -
Bolt M8 Nm 18
BA46.30-P-1010-01R Screw/bolt, power steering pump to major assembly carrier Nm 20
BA46.30-P-1011-01R Bolt, power steering pump bracket to engine support Nm 20
BA46.30-P-1012-01R Bolt, power steering pump bracket to power steering pump Nm 14
Fig 2: Identifying Hand Pump (210 589 00 71 00)
G09976767Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Set Of Stop Plugs (129 589 00 91 00)
G09976768Courtesy of MERCEDES-BENZ USA
