Remove/install exhaust manifold - AR14.10-P-3915OGE

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINES 642 in MODELS 207, 212, 218

Shown on engine 642.850

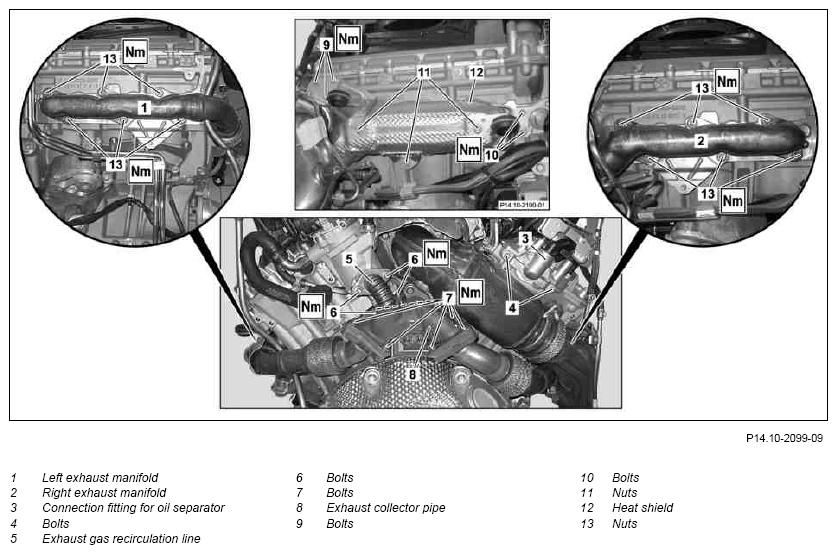

Fig 1: Exhaust Manifold Remove/Install Components

Courtesy of MERCEDES-BENZ USA

Turbocharger without coolant cooling

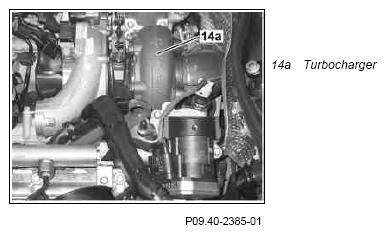

Fig 2: Exhaust Manifold Remove/Install Components - Turbocharger Without Coolant Cooling

Courtesy of MERCEDES-BENZ USA

Turbocharger with coolant cooling

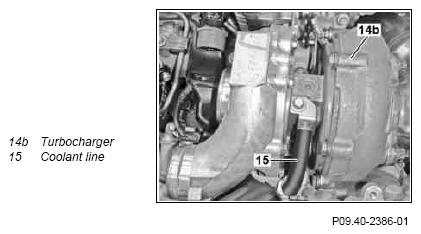

Fig 3: Exhaust Manifold Remove/Install Components - Turbocharger With Coolant Cooling

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Detach ground line from battery		AR54.10-P-0003EW
2	Remove both air filter housings When removing the left exhaust manifold (1)		AR09.10-P-1150SXI
3	Remove catalytic converter	Remove top bolts and just slacken the bottom bolt; the flange is slotted.	AR49.10-P-5500OGE
4	Remove bottom sections of soundproofing		AR94.30-P-5300EW
5	Remove diesel particulate filter	When removing the right exhaust manifold (2) Replace catalytic converter seal on turbocharger.	AR14.40-P-1000OGE
6	Remove exhaust gas recirculation line (5); to this remove bolts (6)	When removing the left exhaust manifold (1) For engines with turbocharger (14b) with coolant cooling a clamp is installed instead of EGR line (5) bolts (6) on the exhaust collector pipe (8).
		Replace gaskets.	*BA14.20-P-1003-01G
			*BA14.20-P-1004-01G
			*BA14.20-P-1013-01G
7	Remove bolts (7) on exhaust collector pipe (8)		*BA14.10-P-1001-01L
			*BA49.10-P-1005-01AE
8	Remove expansion reservoir of power steering	When removing the left exhaust manifold (1)
		Model 207	AR46.25-P-1000CO
		Model 212 Place power steering expansion reservoir with attached hose to one side.	AR46.25-P-1000EWO
9	Remove bolts (9, 10) and nut (11) and take off heat shield (12)	Split the heat shield (12). Ensure correct assembly of the heat shield (12).
10	Remove left cylinder head (1) or right cylinder head (2)	Replace self-locking nuts (13). Check stud; replace if required. Clean sealing surfaces and replace gasket. Bring left exhaust manifold (1) into the correct position in order to remove it upwards. Remove right exhaust manifold (2) downwards.
			*BA14.10-P-1002-01L
11	Install in the reverse order
12	Read out and erase fault memory using STAR DIAGNOSIS	Stored faults which may be caused by assembly work, test work, removed lines or a simulation, must be processed and erased in fault memories after completing the work.	AD00.00-P-2000-04A

EXHAUST MANIFOLD

Number	Designation			Engine 642
BA14.10-P-1001-01L	Flange connection, exhaust manifold/front exhaust pipes to exhaust collector	Stage 1	Nm	20
BA14.10-P-1001-01L		Stage 2	∠°	90
BA14.10-P-1002-01L	Nut, exhaust manifold to cylinder head		Nm	25

EXHAUST GAS RECIRCULATION

Number	Designation			Engine 642.82/83/85/86/87/886/9
BA14.20-P-1003-01G	Exhaust gas recirculation pipe to charge air distribution line		Nm	13
BA14.20-P-1004-01G	Exhaust gas recirculation pipe to exhaust collector pipe	Stage 1	Nm	10
BA14.20-P-1004-01G	Exhaust gas recirculation pipe to exhaust collector pipe	Stage 2	∠°	90
BA14.20-P-1013-01G	Clamp, exhaust gas recirculation pipe to exhaust collector pipe		Nm	9

EXHAUST SYSTEM

Number	Designation		Engine 642, 651 in model 212	Engines 642, 651 in model 207
BA49.10-P-1005-01AE	Nut, catalytic converter clamp to diesel particulate filter	Nm	15	15

EXHAUST SYSTEM

Number	Designation		Engines 642, 651 in model 218
BA49.10-P-1005-01AE	Nut, catalytic converter clamp to diesel particulate filter	Nm	15
