Remove/install expansion reservoir - AR46.25-P-1000EWO
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 with ENGINE 642
| Remove/install | |||
| Risk of injury to skin or eyes caused by hydraulic fluid spraying out under high pressure. Risk of poisoning caused by swallowing hydraulic fluid Depressurize the hydraulic system completely before starting any work on the system. Wear protective clothing and safety glasses. | AS00.00-Z-0013-01A | ||
| 1 | Open engine hood and raise to vertical position | AR88.40-P-1000EW | |
| 2 | Remove left engine intake air duct and engine cover | ||

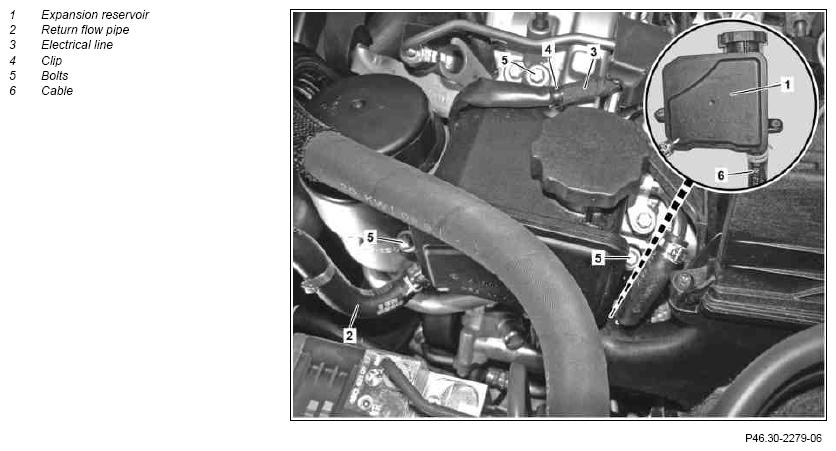

| 3 | Suction off oil from expansion reservoir (1) | Figure | |
| 4 | Detach return line (2) from expansion reservoir (1) | ||
| Figure | |||
| 5 | Detach electrical line (3) from expansion reservoir (1) | ||
| 6 | Remove bolts (5) | *BA46.30-P-1003-01T | |
| 7 | Detach line (6) from expansion reservoir (1) | ||
| Figure | |||
| 8 | Remove expansion reservoir (1) | ||
| 9 | Install in the reverse order | ||
| 10 | Fill power steering pump and bleed | AR46.30-P-0010EW | |
| Checking | |||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 11 | Test run engine and check steering system for leaks |
POWER STEERING PUMP
| Number | Designation | Model 212 | |
|---|---|---|---|
| BA46.30-P-1003-01T | Expansion reservoir bolt | Nm | 9 |
