Overview of system components for taxi/rental vehicle - GF82.25-P-9890FL
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

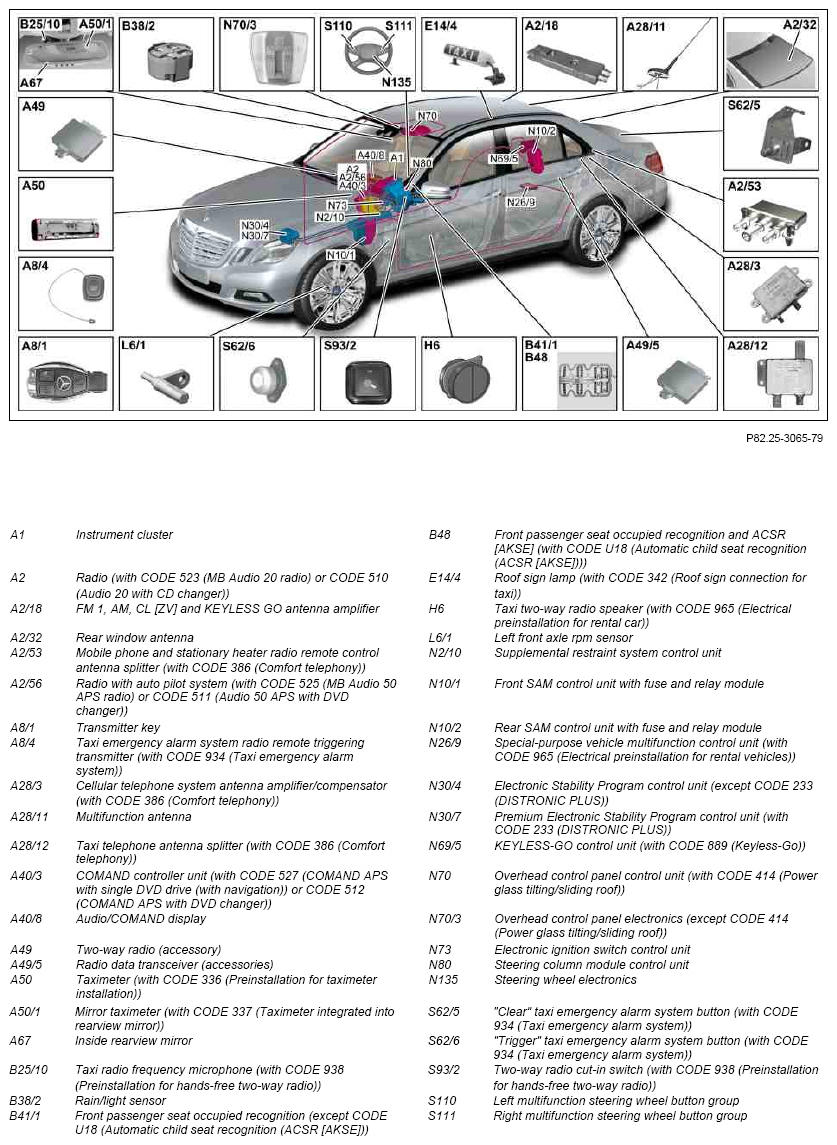

MODEL 212 with CODE 965 (Electrical preinstallation, rental vehicles)
Shown on model 212.0

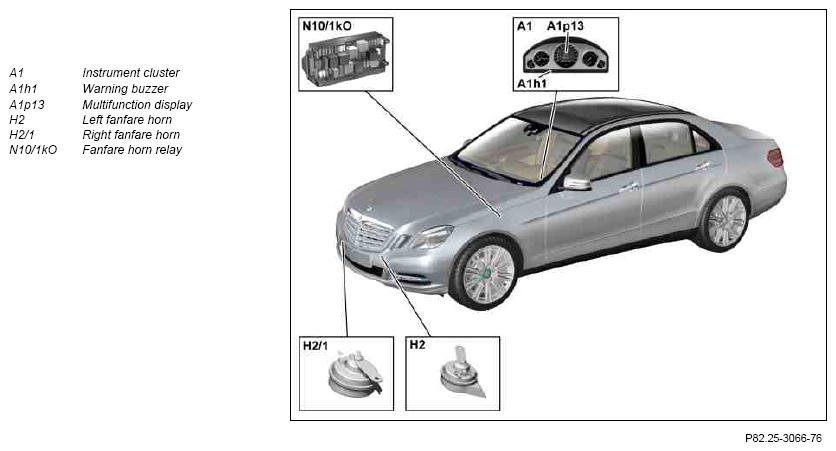

| Component description for instrument cluster | A1 | GF54.30-P-6000FL | |
| Component description for the radio | MODEL 212 up to 3/1/15 up to model year 2016 with CODE 510 (Audio 20 with CD changer) with CODE 965 (Electrical preinstallation, rental vehicles) MODEL 212 up to 3/1/15 up to model year 2016 with CODE 523 (MB Audio 20 radio) with CODE 965 (Electrical preinstallation, rental vehicles) A2 |
GF82.60-P-3122FLA | |
| MODEL 212 as of 3/2/15 as of model year 2016 with CODE 505 (Radio 20 NTG5, not navigation-enabled) with CODE 965 (Electrical preinstallation, rental vehicles) MODEL 212 as of 3/2/15 as of model year 2016 with CODE 522 (Audio 20 radio) with CODE 965 (Electrical preinstallation, rental vehicles) A2 |
GF82.60-P-3122FLM | ||
| Component description for radio with auto pilot system | MODEL 212 with CODE 511 (Audio 50 APS with DVD changer) with CODE 965 (Electrical preinstallation, rental vehicles) MODEL 212 with CODE 525 (MB Audio 50 APS radio) with CODE 965 (Electrical preinstallation, rental vehicles) A2/56 |
GF82.61-P-4112FLA | |
| Component description for COMAND controller unit | MODEL 212 up to model year 2013 with CODE 512 (COMAND APS with DVD changer) with CODE 965 (Electrical preinstallation, rental vehicles) without CODE 527 (COMAND APS with single DVD drive (with navigation)) MODEL 212 up to model year 2013 with CODE 527 (COMAND APS with single DVD drive (with navigation)) with CODE 965 (Electrical preinstallation, rental vehicles) without CODE 498 (Japanese version) without CODE 512 (COMAND APS with DVD changer) A40/3 |
GF82.85-P-3136FL | |
| MODEL 212 as of 6/1/12 up to 3/1/15 up to model year 2016 with CODE 527 (COMAND APS with single DVD drive (with navigation)) with CODE 965 (Electrical preinstallation, rental vehicles) A40/3 |
GF82.85-P-3136FLB | ||
| Component description for Audio/COMAND display | MODEL 212 up to 3/1/15 up to model year 2016 with CODE 965 (Electrical preinstallation, rental vehicles) without CODE 867 (SPLITVIEW) A40/8 |
GF54.30-P-6150FL | |
| MODEL 212 up to 3/1/15 up to model year 2016 with CODE 867 (SPLITVIEW) with CODE 965 (Electrical preinstallation, rental vehicles) A40/8 |
GF54.30-P-6150FLM | ||
| MODEL 212 as of 3/2/15 as of model year 2016 with CODE 965 (Electrical preinstallation, rental vehicles) A40/8 |
GF54.30-P-6150FLN | ||
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080FL | |
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070FL | |
| Component description for rear SAM control unit with fuse and relay module | N10/2 | GF54.21-P-6030FL | |
| Special vehicle multifunction control unit (SVMCU (MSS)), component description | MODEL 212 with CODE 965 (Electrical preinstallation, rental vehicles) without CODE Z17 (Heated windscreen) without CODE Z22 (Panic alarm system) N26/9 |
GF54.21-P-4010FL | |
| Component description for Electronic Stability Program control unit | MODEL 212.0 (except 212.095/098), 212.1, 212.2 (except 212.298) up to model year 2014 with CODE 965 (Electrical preinstallation, rental vehicles) N304, N307 |
GF42.45-P-5119FL | |
| Component description for Electronic Stability Program control unit | MODEL 212.0 (except 212.095/098), 212.1, 212.2 (except 212.298) as of model year 2014 with CODE 965 (Electrical preinstallation, rental vehicles) N304, N307 |
GF42.45-P-5119FLM | |
| Component description for KEYLESS-GO control unit | MODEL 212 with CODE 889 (Keyless Go) with CODE 965 (Electrical preinstallation, rental vehicles) N69/5 |
GF80.61-P-4204FL | |
| Component description for overhead control panel control unit | MODEL 212 with CODE 414 (Power glass tilting/sliding roof) with CODE 965 (Electrical preinstallation, rental vehicles) N70 |
GF82.20-P-5216FL | |
| Component description for electronic overhead control panel | MODEL 212 with CODE 965 (Electrical preinstallation, rental vehicles) without CODE 414 (Power glass tilting/sliding roof) N70/3 |
GF82.20-P-5217FL | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FL | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051FL | |
| Table of contents for function description for taxi/rental vehicle | GF82.25-P-0890FL |
