Remove/install seat cushion - AR91.10-P-3310CW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204, 207, 212, 218
Shown on MODEL 204.0 with CODE 409 (Left/right front multicontour seats) and CODE 873 (Seat heater for driver and front passenger)
MODEL 204.0/2/3 (except 204.077/277), 207, 212, 218 with CODE 409 (Left/right front multicontour seat), shown on left front seat
MODEL 218, 212 with CODE 954 (Avantgarde) or with CODE 955 (Elegance)
MODEL 212, MODEL 218 up to model year 2015 with CODE 432 (Left/right dynamic multicontour seat)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove fire extinguisher from bracket | MODEL 218 with CODE 682 (Fire extinguisher) |
|
| 2.1 | Move driver seat all the way back and fold front and rear seat cushions (1) all the way up | MODEL 204, 207, 212, 218 without CODE 873 (Seat heating for driver and front passenger) When removing seat cushion (1) from driver seat. |
|
| 2.2 | Release driver seat and tilt backwards with lines connected and seat belt installed | MODEL 204 (except 204.9), 207, 212, 218 with CODE 873 (Seat heating for driver and front passenger) When removing seat cushion (1) from driver seat. |
|
| AR91.10-P-1000CW | |||
with CODE 873 (Seat heating for driver and front passenger) Move backrest to rear. |
|||
| 2.3 | Release front passenger seat and tilt backwards with lines connected and seat belt installed | When removing seat cushion (1) from front passenger seat. | |
| AR91.10-P-1000CW | |||
with CODE 873 (Seat heating for driver and front passenger) Move backrest to rear. |
|||
| 3 | Disconnect ground line of battery | MODEL 204 | AR54.10-P-0003CW |
| MODEL 207, 212, 218 | AR54.10-P-0003EW | ||

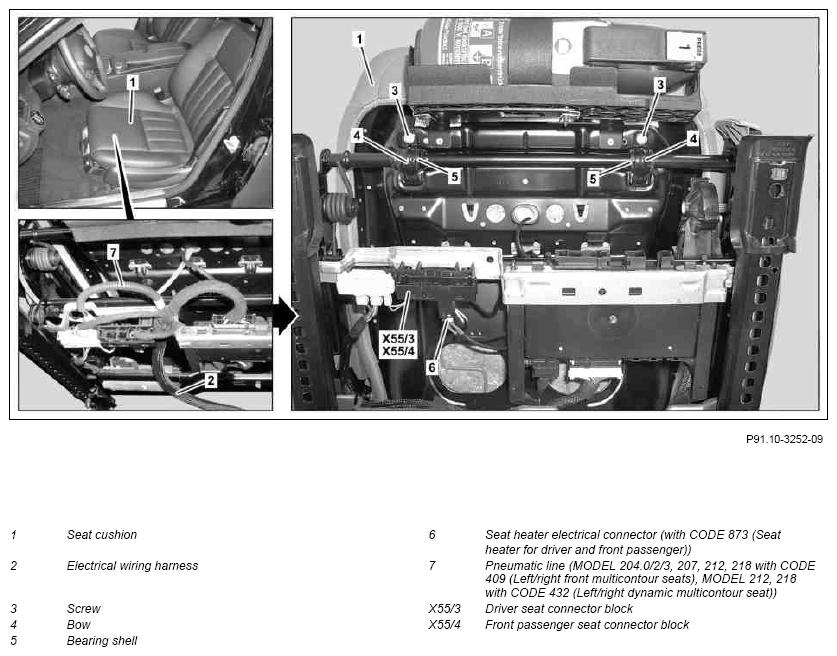

| 4 | Expose electrical wiring harness (2) at seat adjustment unit and disconnect at driver seat connector block (X55/3) or front passenger seat connector block (X55/4) | ||
| 5 | Disconnect pneumatic line (7) from bottom of seat adjustment unit | MODEL 204 (except 204.9), 207, 212, 218 with CODE 409 (Left/right front multicontour seat) MODEL 212, 218 with CODE 432 (Left and right dynamic multicontour seat) |
|
| Figure | |||
| 6 | Remove switch for dynamic seat | MODEL 212 up to model year 2014 with CODE 432 (Left and right dynamic multicontour seat) MODEL 218 up to model year 2015 with CODE 432 (Left and right dynamic multicontour seat) |
|
| AR91.25-P-1820EW | |||
| 7 | Remove control valve (8) | MODEL 204 (except 204.077/277/9), 207, 212, 218 with CODE 409 (Left/right front multicontour seat) |
|
| AR91.25-P-1710CW | |||

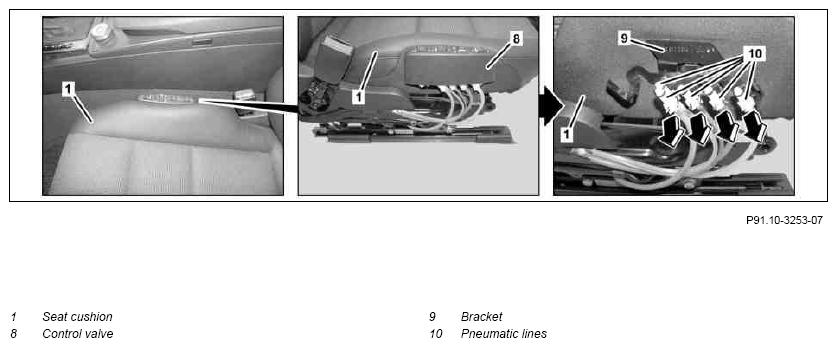

| 8 | Unclip pneumatic lines (10) from bracket (9) | MODEL 204 (except 204.077/277/9), 207, 212, 218 with CODE 409 (Left/right front multicontour seat) |
|
| 9 | Expose pneumatic lines (10) at bottom of seat cushion (1) | MODEL 204 (except 204.077/277/9), 207, 212, 218 with CODE 409 (Left/right front multicontour seat) |
|
| 10 | Unclip driver seat connector block (X55/3) or front passenger seat connector block (X55/4) and turn to one side until seat heater electrical connector (6) can be disconnected | MODEL 204, 207, 212, 218 with CODE 873 (Seat heating for driver and front passenger) |
|
| 11 | Disconnect seat heater electrical connector (6) from driver seat connector block (X55/3) or front passenger seat connector block (X55/4) | MODEL 204, 207, 212, 218 with CODE 409 (Left/right front multicontour seat) |
|
| 12 | Fold housing halves of seat heater electrical connector coupling (6) away from one other | MODEL 204, 207, 212, 218 with CODE 873 (Seat heating for driver and front passenger) |
|
| 13 | Disconnect seat occupied recognition electrical connector at front passenger seat connector block (X55/4) | When removing seat cushion (1) from front passenger seat. | |
| 14 | Raise seat cushion (1) at rear and unclip left rear footwell lamp (E17/17) or right rear footwell lamp (E17/18) at seat cushion (1) (arrows A) | MODEL 212, 218 with CODE 954 (Avantgarde) MODEL 212, 218 with CODE 955 (Elegance) |
|
| 15 | Unclip electrical wiring harness (11) at seat cushion (1) from bracket (arrow B) | MODEL 212, 218 with CODE 954 (Avantgarde) MODEL 212, 218 with CODE 955 (Elegance) |
|
| 16 | Unclip electrical wiring harness (12) at bottom of seat cushion (1) (arrow C) | MODEL 212 | |
| 17 | Expose electrical lines belonging to seat cushion (1) at seat adjustment unit | ||

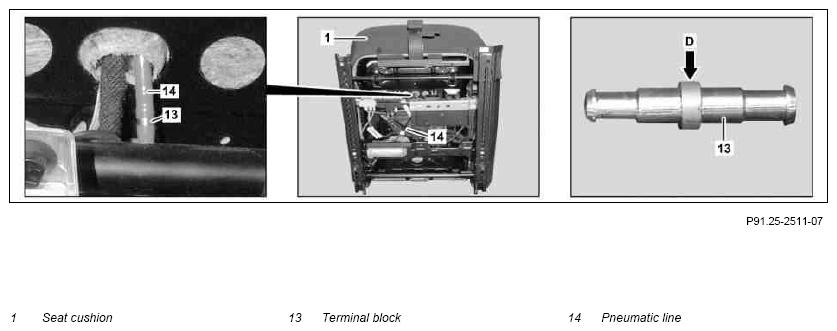

| 18.1 | Cut through pneumatic line (14) below seat cushion (1) at an easily accessible location | MODEL 212 with CODE 432 (Left and right dynamic multicontour seat) MODEL 218 up to model year 2015 with CODE 432 (Left and right dynamic multicontour seat) Otherwise, leaks can occur at the pneumatic line (14). Slide both sides of the pneumatic line (14) up to collar (arrow D) onto terminal block (13). |
|
| Fig 6 | |||
| 18.2 | Disconnect pneumatic line (14) below seat cushion (1) at factory connecting point | MODEL 218 as of model year 2015 with CODE 432 (Left and right dynamic multicontour seat) |
|
| 19 | Remove screws/bolts (3) | ||
| 20 | Fold up and remove bracket (4) | ||
| 21 | Fold up bearing shells (5) | ||
| 22 | Remove seat cushion (1) | ||
| 23 | Install in the reverse order |
