Remove/install dynamic seat switch - AR91.25-P-1820EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 up to model year 2014 with CODE 432 (Left and right dynamic multicontour seat)
MODEL 218 up to model year 2015 with CODE 432 (Left and right dynamic multicontour seat)

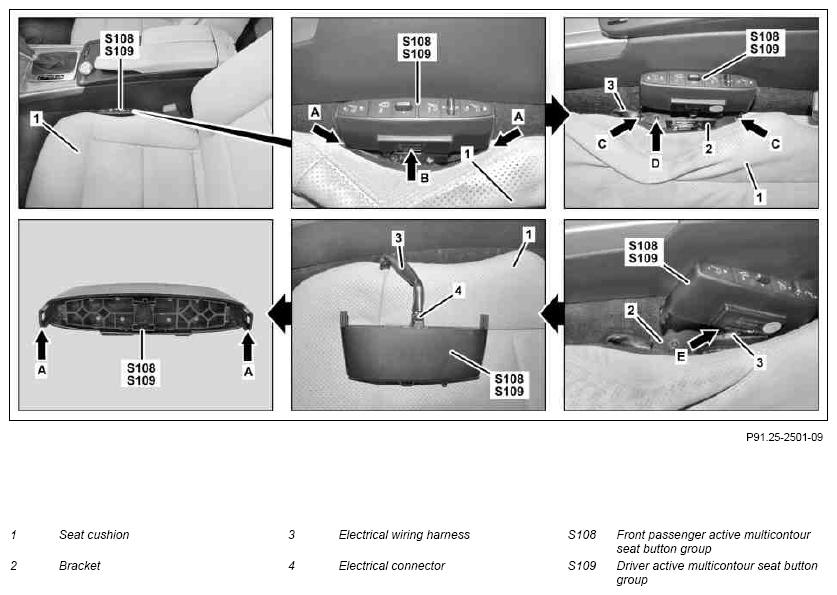

Shown on model 212
| Remove/install | |||
| 1 | Push left or right seat cushion (1) far enough to one side to access the supports (arrows A) of the front passenger active multicontour seat button group (S108) or the driver active multicontour seat button group (S109) | ||
| 2 | Unclip supports (arrows A) of front passenger active multicontour seat button group (S108) or driver active multicontour seat button group (S109) at the lug catch hooks (arrows C) | ||
| 3 | Push front passenger active multicontour seat button group (S108) or driver active multicontour seat button group (S109) far enough upwards out of bracket (2) until the electrical wiring harness (3) can be removed from the opening (arrow E) of the bracket (2) | ||
| 4 | Remove electrical wiring harness (3) from the opening (arrow E) of bracket (2) | ||
| 5 | Unclip electrical wiring harness (3) from bracket (2) (arrow D) | Figure | |
| 6 | Lift front passenger active multicontour seat button group (S108) or driver active multicontour seat button group (S109) far enough until the electrical connector (4) can be disconnected | ||
| 7 | Disconnect electrical connector (4) | ||
| 8 | Remove front passenger active multicontour seat button group (S108) or driver active multicontour seat button group (S109) | ||
| 9 | Install in the reverse order |
