Remove/install rear rubber bushings for differential mount in rear axle carrier - AR35.10-P-0050EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 166, 212, 218

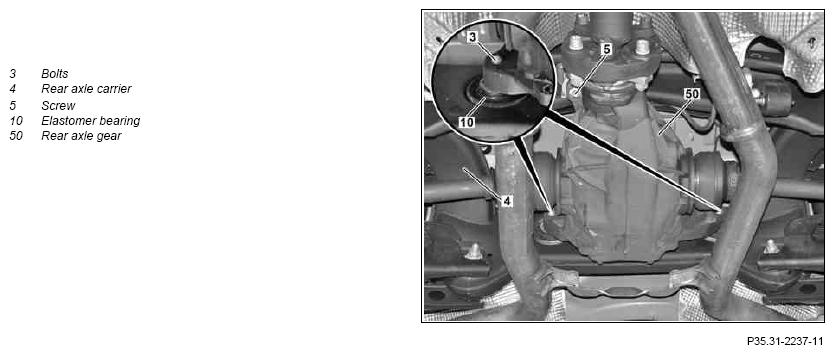

Fig 1: Rear Rubber Bushings For Differential Mount In Rear Axle Carrier Remove/Install Components (1 Of 2)

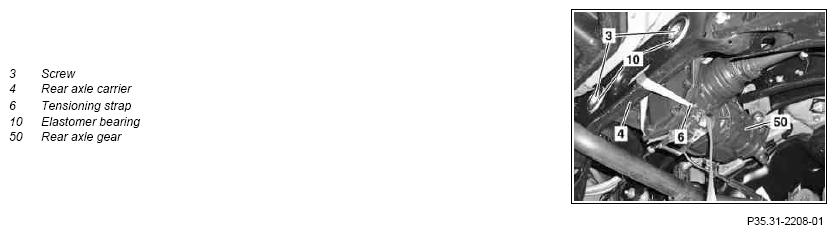

Fig 2: Rear Rubber Bushings For Differential Mount In Rear Axle Carrier Remove/Install Components (2 Of 2)
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Notes on repair work on suspension components | AH00.00-P-0100-01A | ||
| Remove/install | |||
| 1 | Move transmission into neutral or idle position and release parking brake | ||
| 2.1 | Switch off ignition and remove transmitter key from electronic ignition lock control unit | MODEL 166, 212, 218 without CODE 889 (KEYLESS-GO) |
|
| 2.2 | Switch off ignition and remove transmitter key or KEYLESS-GO start/stop button from electronic ignition lock control unit | MODEL 166, 212, 218 with CODE 889 (KEYLESS-GO) |
|
| 3 | Secure vehicle on vehicle lift | MODEL 166 | AR00.60-P-0100GZ |
| MODEL 212, 218 | AR00.60-P-0100EWS | ||
| 4 | Remove left and right rear diagonal strut | MODEL 212.2, 218.9 | |
| *BA61.10-P-1006-01H | |||
| 5 | Remove exhaust system as from connecting point | MODEL 166, 212, 218 | |
| MODEL 212, 218 with ENGINE 157, 276, 278 | AR49.10-P-7100EL | ||
| MODEL 212, 218 with ENGINE 642, 651 | AR49.10-P-7100EWI | ||
| MODEL 212 with ENGINE 156, 272, 273 | AR49.10-P-7100EW | ||
| MODEL 212 with ENGINE 274 | AR49.10-P-7100MR | ||
| MODEL 166 with ENGINE 276 MODEL 166 with ENGINE 278 |
AR49.10-P-7100GQA | ||
| MODEL 166 with ENGINE 642, 651 | AR49.10-P-7100GQB | ||
| 6 | Slacken off threaded connections of propeller shaft center support bearing on frame floor assembly by 3 or 4 turns | MODEL 166 | AR41.10-P-0050GQ |
| MODEL 212, 218 | AR41.10-P-0050EW | ||
| 7 | Detach propeller shaft from rear axle differential (50) | MODEL 166 | AR41.10-P-0050GQ |
| MODEL 212, 218 |
AR41.10-P-0050EW | ||
| 8.1 | Lash down rear axle differential (50) using tensioning strap (6) on the rear axle carrier (4) | MODEL 212, 218 | |
| 8.2 | Support rear axle differential (50) with telescopic lifter and transmission plate | MODEL 166 Transmission jack Transmission platform |
|
| 9 | Unscrew left and right bolt (3) of rear mounting on rear axle differential (50) | *BA35.31-P-1003-02E | |
| MODEL 166 | |||
| *BA35.10-P-1006-01N | |||
| MODEL 212 MODEL 218 |
|||
| 10 | Support rear axle differential (50) with telescopic lifter and transmission plate | MODEL 212, 218 Transmission jack Transmission platform |
|
| 11 | Remove bolt (5) of front mounting of rear axle differential (50) | Installation: Tighten the jam nut of the bolt (5) to the specified tightening torque and counterhold bolt (5) while doing so. |
|
| *BA35.31-P-1004-02E | |||
| MODEL 166 | |||
| *BA35.10-P-1005-01N | |||
| MODEL 212 MODEL 218 |
|||
| 12 | Lower rear axle differential (50) far enough until the elastomer bearings (10) are accessible | ||
| 13 | Press elastomer bearings (10) of rear axle differential (50) out of rear axle carrier (4) | AR35.10-P-0050-02CW | |
| Figure | |||
| Figure | |||
| Figure | |||
| Figure | |||
| Fig 3 | |||
| 14 | Install in the reverse order |
REAR AXLE CARRIER
| Number | Designation | MODEL 212 | MODEL 218 | |
|---|---|---|---|---|
| BA35.10-P-1005-01N | Rear axle differential to front adapter | Nm | 65 | 65 |
REAR AXLE CARRIER
| Number | Designation | MODEL 212 | MODEL 218 | |
|---|---|---|---|---|
| BA35.10-P-1006-01N | Bolt, rear axle differential to rear transverse bridge | Nm | 170 | 170 |
REAR AXLE DIFFERENTIAL HOUSING
| Number | Designation | MODEL 166 | |
|---|---|---|---|
| BA35.31-P-1003-02E | Bolt, elastomer bearing for rear axle differential to rear axle carrier at rear | Nm | 95 |
REAR AXLE DIFFERENTIAL HOUSING
| Number | Designation | MODEL 166 | |
|---|---|---|---|
| BA35.31-P-1004-02E | Nut, elastomer bearing on rear axle differential to rear axle carrier at front | Nm | 110 |
FRAME FLOOR ASSEMBLY
| Number | Designation | MODEL 212 | MODEL 218 | |
|---|---|---|---|---|
| BA61.10-P-1006-01H | Bolt, rear diagonal strut bracket mount to body | Nm | 60 | 60 |
