Replace longitudinal member front section - AR62.20-P-1260EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212, 218
| Removing | |||
| Risk of death caused by high voltage used for electric welding. Risk of explosion caused by welding in the area of highly inflammable materials. Risk of injury caused by welding splatter and UV light while welding. Risk of poisoning caused by inhaling welding fumes. | Use insulating mats. Wear protective clothing, safety glasses and protective mask. Remove highly inflammable materials from the hazard area. Use air extractor system. | AS00.00-Z-0007-01A | |
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Measures for preventing damage to vehicles or components when performing electric welding work | AH00.00-N-0005-01A | ||
| General information on body repair | AH60.00-N-0001-01A | ||
| General information on MB materials | AH98.00-P-9409-03A | ||
| 1 | Prepare all workshop equipment and commercially available tools required for repair | ||
| 2 | Remove front end assembly with reinforcement | Model 212 | AR62.30-P-1570EW |
| Model 218 | AR62.30-P-1570EL | ||
| 3 | Remove all detachable parts in area to be repaired | ||
| 4 | Cover all detachable parts remaining in vehicle with fire-resistant welding protection blanket | Welding protective blanket |
|
| 5 | Equip straightening bench with module members, cross members and straightening tool set. | Straightening bracket set, passenger cars, cross-country vehicles (Celette) Straightening tool set, passenger cars (Car Bench) |
|
| 6 | Lift vehicle with two-post lifting platform | Two-column lift |
|
| 7 | Set vehicle onto straightening bench | ||
| 8 | Fasten vehicle to straightening bench | ||
| 9 | Remove inner front longitudinal member (1.1), outer front longitudinal member (1.2) and front end bracket (2) | AR62.20-P-1260-01EW | |
Body jig saw . Round wire brush Wet and dry vacuum cleaner |

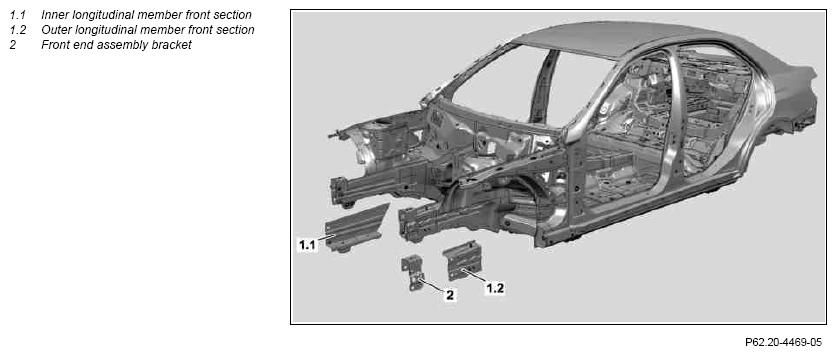

Figure | ||
| Zinc dust paint suitable for spot welding | *BR00.45-Z-1001-07A | ||
| 10 | Prepare inner front longitudinal member (1.1), outer front longitudinal member (1.2) and front end bracket (2) for installation | AR62.20-P-1260-05EW | |
| Body jig saw . Round wire brush |
|||
| Zinc dust paint suitable for spot welding | *BR00.45-Z-1001-07A | ||
| Install | |||
| 11 | Install inner front longitudinal member (1.1), outer front longitudinal member (1.2) and front end bracket (2) | AR62.20-P-1260-07EW | |
| Multifunction device (spot welding) Inert gas welder Vice grip pliers (standard) Round wire brush Wet and dry vacuum cleaner |
|||
| Zinc dust paint suitable for spot welding | *BR00.45-Z-1001-07A | ||
| 12 | Unfasten vehicle from straightening bench | ||
| 13 | Lift vehicle with two-post lifting platform | Two-column lift |
|
| 14 | Remove straightening bench. | ||
| 15 | Clean weld joints and sheet metal flanges with rotary wire brush | Round wire brush |
|
| 16 | Clean repair area | Wet and dry vacuum cleaner |
|
| Risk of explosion caused by paint vapors igniting. Risk of poisoning caused by inhaling paint vapors. | No smoking! No open fire! Use respiratory protection, protective clothing, gloves, safety glasses and skin cream. Ensure that the area is well ventilated. | AS98.00-Z-0002-01A | |
| 17 | Prime repair area with primer filler | Passenger car primer filler 283-150 VOC | *BR00.45-Z-1031-07A |
| Notes on paintwork repairs | AH98.00-P-9408-02A | ||
| 18 | Carry out seam sealing after repairs | ||
| Model 212 | AR97.10-P-4000EW | ||
| Model 218 | AR97.10-P-4000EL | ||
| Sealant | *BR00.45-Z-1003-01A | ||
| Seam sealant, sprayable 310 ml | *BR00.45-Z-1041-01A | ||
| Risk of explosion caused by paint vapors igniting. Risk of poisoning caused by inhaling paint vapors. | No smoking! No open fire! Use respiratory protection, protective clothing, gloves, safety glasses and skin cream. Ensure that the area is well ventilated. | AS98.00-Z-0002-01A | |
| 19 | Paint repair area adjacent surfaces | ||
| Notes on paintwork repairs | AH98.00-P-9408-02A | ||
| 20 | Apply additional cavity preservation | ||
| Model 212.0/1 Model 212.2 |
AR97.20-P-1500EW | ||
| Model 218 | AR97.20-P-1500EL | ||
| Notes on cavity preservation | AH97.20-P-0001-01B | ||
| Cavity preservation gun |
|||
| Preservation agent | *BR00.45-Z-1003-05A | ||
| 21 | Remove welding protection blankets | ||
| 22 | Install front end assembly with front reinforcement | Model 212 | AR62.30-P-1570EW |
| Model 218 | AR62.30-P-1570EL | ||
| 23 | Install all removed detachable parts |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1003-01A | White sealing compound, 310 ml, DBL 6069.20 | A 001 989 63 20 |
| BR00.45-Z-1041-01A | Seam sealant, sprayable 310 ml | A 002 989 84 20 |
| BR00.45-Z-1003-05A | Cavity preservation, solvent-free (1 l container) | A 000 986 72 70 05 |
| BR00.45-Z-1001-07A | Zinc dust paint suitable for spot welding | A 000 986 34 42 |
| BR00.45-Z-1031-07A | Passenger car primer filler 283-150 VOC | - |
