Install and weld in longitudinal member front section - AR62.20-P-1260-07EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212, 218
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1001-07A | Zinc dust paint suitable for spot welding | A 000 986 34 42 |

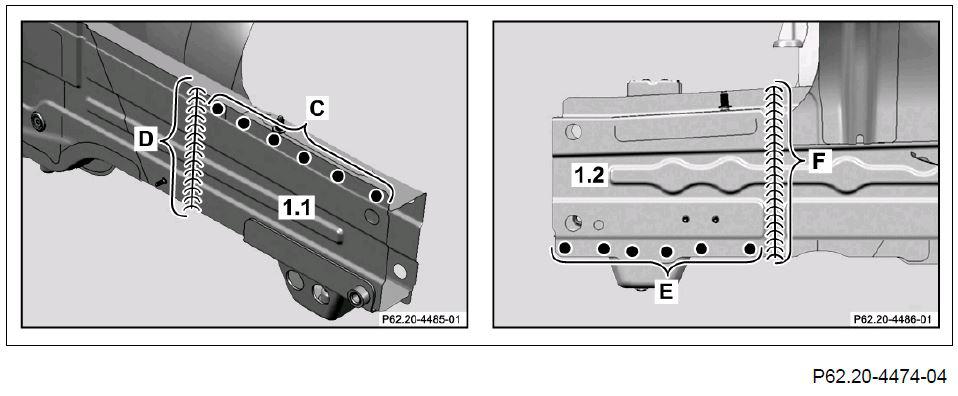

- Install inner front longitudinal member (1.1), fit and fix in place.
- Inner front longitudinal member (1.1) SG «««««
(area D).
Perform inert gas welding in intervals, allow to cool down in between to prevent heat distortion (area D).
- Clean inner area of weld seam and coat with zinc dust paint.
- Install outer front longitudinal member (1.2), fit and fix in place.
- Outer front longitudinal member (1.2) SG «««««
(area F).
- Inner front longitudinal member (1.1) and outer front longitudinal member (1.2) RP __•__ (areas C and E).
- Clean weld joints.
- Remove shavings.

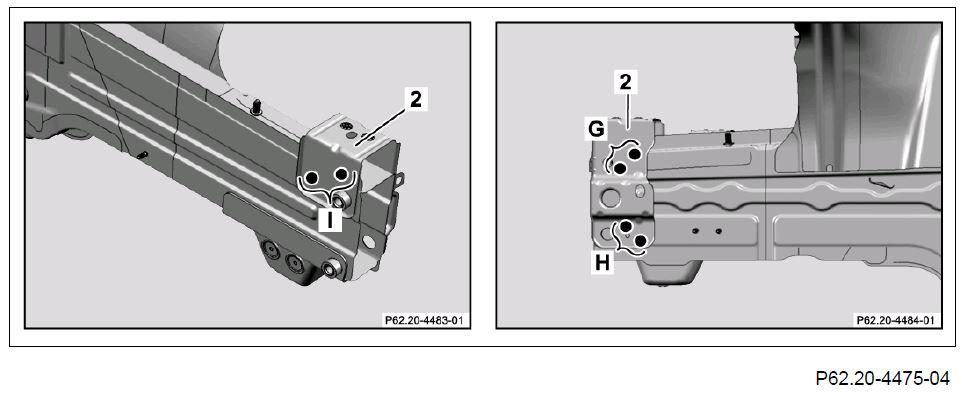

- Install front end bracket (2), fit and fix in place
- Front end bracket (2) RP __•__ (areas G, H and I).
