Measure crankshaft and remount in bearings - AR03.20-P-4355CD

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 651

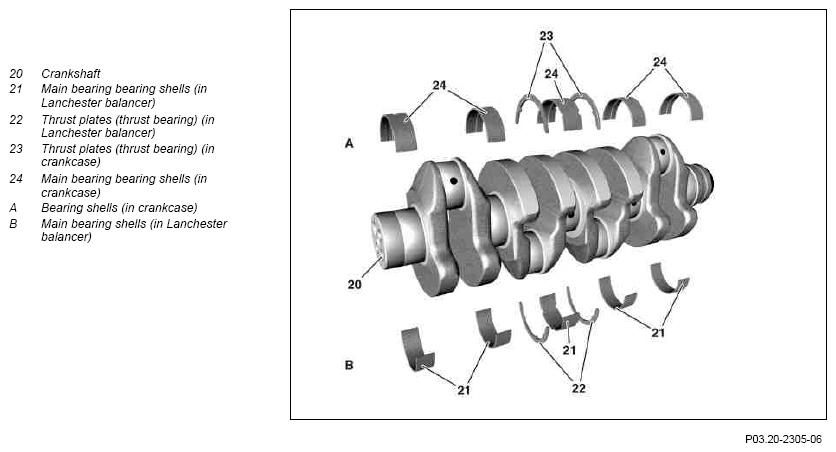

Fig 1: Crankshaft Bearings

Courtesy of MERCEDES-BENZ USA

	Remove
1	Remove crankshaft (20)	ENGINE 651 in MODEL 205	AR03.20-P-4351OLD
		ENGINE 651 in MODEL 166, 172, 204, 207, 212, 218, 221	AR03.20-P-4351CD
		ENGINE 651 in MODEL 117, 156, 176, 246	AR03.20-P-4351OLB
	Clean
2	Clean engine parts	If bearing damage has occurred, it may be necessary to remove any swarf from the oil duct, the connecting rod bore holes and crankshaft oil ducts (20) and the crankcase.
	Check
3	Check connecting rod	After bearing damage has occurred: Replace connecting rods that have been overheated due to bearing damage (blue discoloration). The connecting rod must have any cross scores and notches.
4	Check crankshaft (20)	Check crankshaft (20) after a bearing damage has occurred and repair or replace as required.
	Install
5	Mount crankshaft (20) radially in bearings		AR03.20-P-4355-01CD
		Screw/bolt, crankshaft bearing cap	*BA03.20-P-1001-01K
		Crankshaft bearing clearance (when new)	*BE03.20-P-1001-04A
		Main bearing shells standard dimension for crankcase and bearing cap ø 60.00 mm	*BE03.20-P-1003-03I
		Main bearing shells standard dimension for crankcase and bearing cap ø 60.00 mm	*BE03.20-P-1002-03I
		Main bearing shells standard dimension for crankcase and bearing cap ø 60.00 mm	*BE03.20-P-1001-03I
		Crankshaft bearing	*BE01.40-P-1001-02K
		Dial gage	Figure
6	Assign main bearing shells (21, 24)		AR03.20-P-4360-01CD
		A radial bearing for the main bearing for a normally sized crankshaft occurs based on assignment of the color marked bearing shells.
		Crankshaft bearing clearance (when new)	*BE03.20-P-1001-04A
7	Mount crankshaft (20) axially		AR03.20-P-4355-02CD
		Crankshaft bearing clearance (when new)	*BE03.20-P-1001-04A
		Screw/bolt, crankshaft bearing cap	*BA03.20-P-1001-01K
		Dial gage	Figure
		Dial indicator holder	Figure

CHECK VALUES OF CRANKCASE

Number	Designation			ENGINE 651
BE01.40-P-1001-02K	Crankshaft bearing	Basic bore diameter	mm	64, 000...64, 019
		Basic bore width at fitted bearing	mm	21, 447...21, 480
		Permissible out-of-roundness and conicity of basic bore	mm	0, 007

CHECK VALUES FOR CRANKSHAFT MAIN BEARING SHELLS

Number	Designation			ENGINE 651
BE03.20-P-1001-03I	Main bearing shells standard dimension for crankcase and bearing cap ø 60.00 mm	Replacement part additional number (color coding blue)		52
BE03.20-P-1001-03I		Bearing shell thickness	mm	2, 000...2, 007

TEST SPECIFICATIONS FOR CRANKSHAFT BEARING CLEARANCE

Number	Designation			ENGINE 651
BE03.20-P-1001-04A	Crankshaft bearing clearance (when new)	Radial measurement when new	mm	0, 028...0, 063
		radial wear limit	mm	-
		Axial measurement when new	mm	0, 110...0, 300
		Axial wear limit	mm	-

CHECK VALUES FOR CRANKSHAFT MAIN BEARING SHELLS

Number	Designation			ENGINE 651
BE03.20-P-1002-03I	Main bearing shells standard dimension for crankcase and bearing cap ø 60.00 mm	Replacement part additional number (color coding yellow)		54
BE03.20-P-1002-03I		Bearing shell thickness	mm	2, 007...2, 014

CHECK VALUES FOR CRANKSHAFT MAIN BEARING SHELLS

Number	Designation			ENGINE 651
BE03.20-P-1003-03I	Main bearing shells standard dimension for crankcase and bearing cap ø 60.00 mm	Replacement part additional number (color coding red)		56
BE03.20-P-1003-03I		Bearing shell thickness	mm	2, 014...2, 021

CRANKSHAFT BEARING CAP

Number	Designation			ENGINE 651
BA03.20-P-1001-01K	Screw/bolt, crankshaft bearing cap	Stage 1	Nm	60
BA03.20-P-1001-01K	Screw/bolt, crankshaft bearing cap	Stage 2	∠°	90

Fig 2: Identifying Dial Indicator Holder (363 589 02 21 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Dial Gauge (001 589 53 21 00)

Courtesy of MERCEDES-BENZ USA
