Remove/install slide rail in timing case cover - AR05.10-P-8484EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINES 272, 273 in MODEL 212
| Remove/install | |||
| 1 | Remove right cylinder head | AR01.30-P-5780EW | |
| 2 | Remove left cylinder head | AR01.30-P-5770EW | |
| 3 | Remove timing case cover | AR01.40-P-8000EWS | |

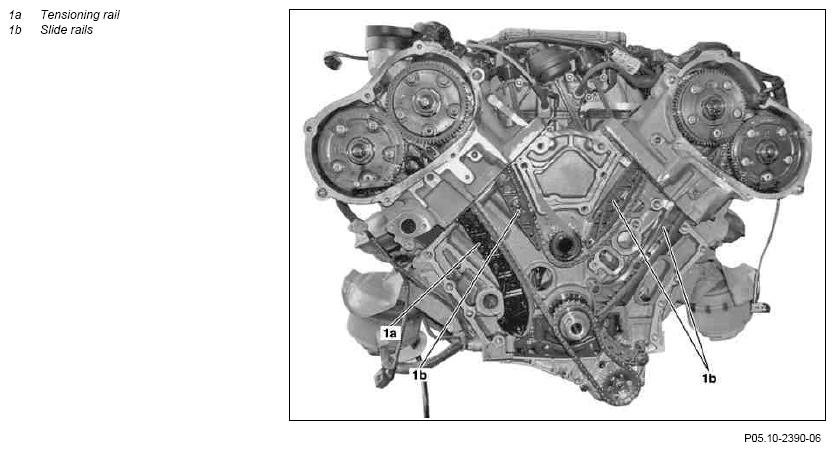

| 4 | Remove tensioning rail (1a) | ||
| 5 | Detach slide rails (1b) from guide pins | ||
| 6 | Install in the reverse order | ||
| 7 | Check engine oil level | ||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 8 | Carry out an engine test run and check engine for leaks | ||
| 9 | Inspecting cooling system for leaks | AR20.00-P-1010EW |
