Remove/install washer fluid reservoir of windshield washer system - AR82.35-P-6000CW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204.0/2/3, 207, 212
MODEL 218
Shown on model 204.0
Shown on MODEL 204.0 with ENGINE 272 and with CODE 600 (Headlamp cleaning system) and with CODE 875 (Heated windshield washer system)
| Remove/install | |||

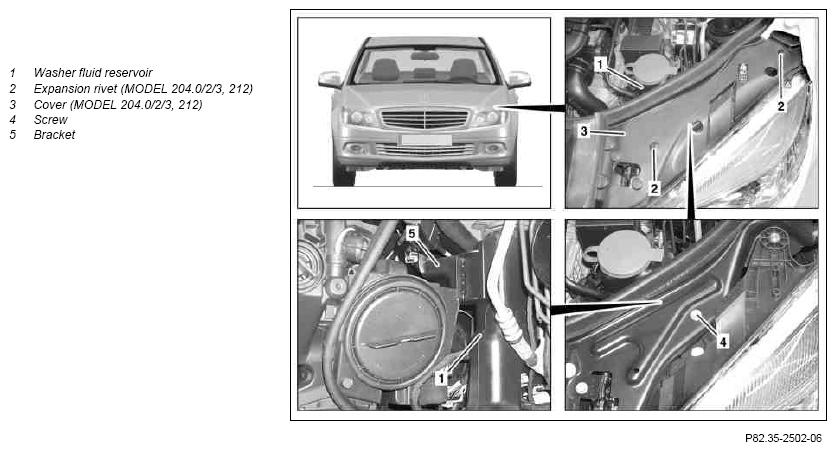

| 1 | Remove expansion rivet (2) and remove cover (3) | MODEL 204.0/2/3, 212 | |
| 2 | Remove screw/bolt (4) and unclip bracket (5) from washer fluid reservoir (1) | ||
| 3 | Unhook purge switchover valve (Y58/1) from bracket (7) | MODEL 204.0/2/3 with ENGINE 156, 271, 272, 274, 276 MODEL 207 with ENGINE 271, 272, 273, 274, 276, 278 MODEL 212 with ENGINE 156, 157, 271, 272, 273, 274, 276, 278 MODEL 218 with ENGINE 157, 274, 276, 278 |
|
| 4 | Remove bolt (6) | ||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 5 | Lift vehicle on vehicle lift | ||
| 6 | Remove fender liner front section in left front fender | MODEL 204.0/2/3, 207, 212 MODEL 218 |
|
| MODEL 207, 212, 218 | AR88.10-P-1300ELX | ||
| 7 | Unclip washer fluid hose (8) from washer fluid reservoir (1) | ||
| 8 | Unclip windshield washer system pump (M5/1) and place to one side with lines connected | ||

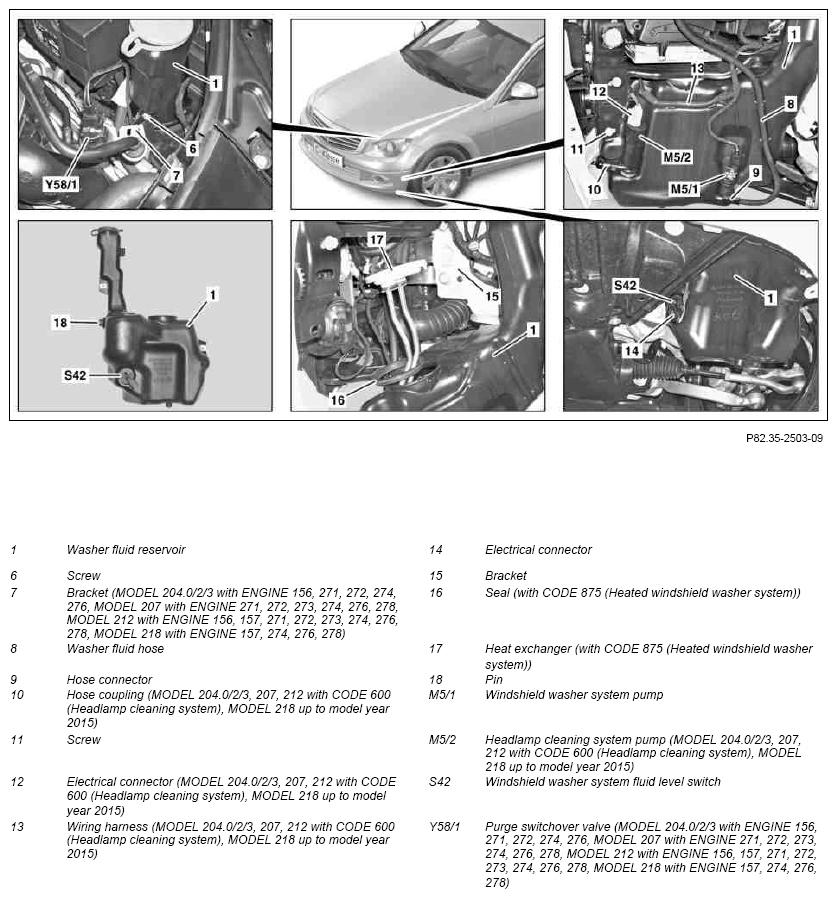

| Figure | |||
| 9 | Detach hose coupling (10) | MODEL 204.0/2/3, 207, 212 with CODE 600 (Headlamp cleaning system) MODEL 218 up to model year 2015 |
|
| 10 | Disconnect electrical connector (12) and expose wiring harness (13) | MODEL 204.0/2/3, 207, 212 with CODE 600 (Headlamp cleaning system) MODEL 218 up to model year 2015 |
|
| 11 | Unclip headlamp cleaning system pump (M5/2) and remove | MODEL 204.0/2/3, 207, 212 with CODE 600 (Headlamp cleaning system) MODEL 218 up to model year 2015 |
|
| Figure | |||
| 12 | Remove bolt (11) | ||
| 13 | Lower washer fluid reservoir (1) | ||
| 14 | Detach electrical connector (14) from windshield washer system fluid level switch (S42) | ||
| 15 | Unclip heat exchanger (17) from washer fluid reservoir (1) and guide heat exchanger (17) out of washer fluid reservoir (1) | MODEL 204.0/2/3, 207, 212 with CODE 875 (Heated windscreen washer system) MODEL 218 with CODE 875 (Heated windscreen washer system) |
|
| Figure | |||
| 16 | Take off washer fluid reservoir (1) | ||
| 17 | Remove windshield washer system fluid level switch (S42) | When replacing the washer fluid reservoir (1). | |
| Figure | |||
| 18 | Install in the reverse order | ||
| 19 | Fill washer fluid reservoir (1) | ||
| MODEL 204.0/2/3 | AP82.35-P-8210CW | ||
| MODEL 207, 212 MODEL 218 |
AP82.35-P-8210EW |
