Left side rear end damage - AR64.20-P-1200ES
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.2
| Removing | |||
| Risk of death caused by high voltage used for electric welding. Risk of explosion caused by welding in the area of highly inflammable materials. Risk of injury caused by welding splatter and UV light while welding. Risk of poisoning caused by inhaling welding fumes. | Use insulating mats. Wear protective clothing, safety glasses and protective mask. Remove highly inflammable materials from the hazard area. Use air extractor system. | AS00.00-Z-0007-01A | |
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of poisoning caused by inhaling vapors or swallowing adhesive. Risk of injury caused by adhesive coming into contact with skin and eyes | Wear respiratory protection, protective gloves and safety glasses. Pour adhesive into suitable and appropriately marked containers only. | AS00.00-Z-0016-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel and risk of injury to eyes and skin caused by contact with fuel | No fire, sparks, open flames or smoking. Pour fuels only into suitable and appropriately marked containers. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| General information on body repair | AH60.00-N-0001-01A | ||
| Pretreatment of bonding surfaces | AH60.00-P-0008-01SX | ||
| General information on riveting | AH60.00-P-0003-01N | ||
| General information on MB materials | AH98.00-P-9409-03A | ||
| 1 | Prepare all workshop equipment and commercially available tools required for repair | ||
| 2 | Remove all detachable parts in area to be repaired | ||
| 3 | Cover all detachable parts remaining in vehicle with welding protection blanket Welding protective blanket | ||
| 4 | Equip straightening bench with module members, cross members and straightening tool set. | Straightening bracket set, passenger cars, cross-country vehicles (Celette) Straightening tool set, passenger cars (Car Bench) |
|
| 5 | Lift vehicle with two-post lifting platform | Two-column lift | |
| 6 | Set vehicle onto straightening bench | ||
| 7 | Fasten vehicle to straightening bench | ||
| 8 | Damage area, reshaping | ||
| 9 | Remove D-pillar | AR63.20-P-2000ES | |
| 10 | Separate deformed rear area | AR64.20-P-1200-11ES | |
Round wire brush Hot-air gun |
Figure | ||
| Zinc dust paint suitable for spot welding | *BR00.45-Z-1001-07A | ||

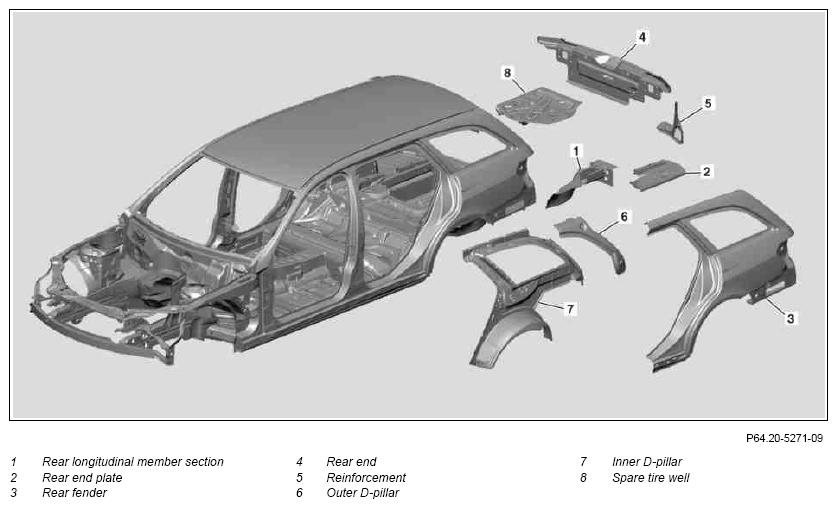

| 11 | Prepare rear fender (3) for installation | AR63.50-P-1400-03ES | |
Weld-spot milling machine Metal needle template Round wire brush |
Figure | ||
| Zinc dust paint suitable for spot welding | *BR00.45-Z-1001-07A | ||
| 12 | Prepare rear end (4) for installation | Type with reinforcements Round wire brush |
AR64.20-P-1020-05ESA |
| Zinc dust paint suitable for spot welding | *BR00.45-Z-1001-07A | ||
| 13 | Prepare rear longitudinal member section (1) and rear end part (2). | AR64.20-P-1260-02EW | |
| Round wire brush | |||
| Zinc dust paint suitable for spot welding | *BR00.45-Z-1001-07A | ||
| 14 | Prepare spare tire well (8) | AR64.20-P-1245-02ES | |
| Round wire brush | |||
| Zinc dust paint suitable for spot welding | *BR00.45-Z-1001-07A | ||
| 15 | Prepare outer D-pillar (6) and inner D-pillar (7) for installation | AR63.20-P-2000-02ES | |
Weld-spot milling machine Body jig saw. Round wire brush |
Figure | ||
| Zinc dust paint suitable for spot welding | *BR00.45-Z-1001-07A | ||
| Install | |||
| 16 | Install spare wheel well (8), rear longitudinal member section (1) and rear locking lug (2) | AR64.20-P-1200-31ES | |
| Multifunction device (spot welding) Vice grip pliers (standard) Hand riveting tool (for blind pop rivets) Manual temporary fastener, 6.35 mm Round wire brush |
|||
| Adhesive kit, body, 2-component adhesive | *BR00.45-Z-1092-02A | ||
| Zinc dust paint suitable for spot welding | *BR00.45-Z-1001-07A | ||
| Rivet, cargo retainers | *BR00.45-Z-1012-13A | ||
| 17 | Install rear end (4) | Type without reinforcements | AR64.20-P-1020-06ES |
| Multifunction device (spot welding) Inert gas welder Vice grip pliers (standard) Hand riveting tool (for blind pop rivets) Round wire brush |
|||
| Adhesive kit, body, 2-component adhesive | *BR00.45-Z-1092-02A | ||
| Zinc dust paint suitable for spot welding | *BR00.45-Z-1001-07A | ||
| Blind rivet | *BR00.45-Z-1001-13A | ||
| 18 | Install D-pillar | AR63.20-P-2000ES | |
| 19 | Unfasten vehicle from straightening bench | ||
| 20 | Lift vehicle with two-post lifting platform | Two-column lift | |
| 21 | Remove straightening bench. | ||
| 22 | Clean weld joints and sheet metal flanges with Round wire brush rotary wire brush | ||
| 23 | Clean repair areas | Wet and dry vacuum cleaner | |
| Risk of explosion caused by paint vapors igniting. Risk of poisoning caused by inhaling paint vapors. | No smoking! No open fire! Use respiratory protection, protective clothing, gloves, safety glasses and skin cream. Ensure that the area is well ventilated. | AS98.00-Z-0002-01A | |
| 24 | Prime area to be repaired using primer filler | ||
| Notes on paintwork repairs | AH98.00-P-9408-02A | ||
| 25 | Carry out seam sealing after repairs | AR97.10-P-4000EW | |
| Sealant | *BR00.45-Z-1003-01A | ||
| Seam sealant, sprayable 310 ml | *BR00.45-Z-1041-01A | ||
| Risk of explosion caused by paint vapors igniting. Risk of poisoning caused by inhaling paint vapors. | No smoking! No open fire! Use respiratory protection, protective clothing, gloves, safety glasses and skin cream. Ensure that the area is well ventilated. | AS98.00-Z-0002-01A | |
| 26 | Paint repair areas and adjacent surfaces | ||
| Notes on paintwork repairs | AH98.00-P-9408-02A | ||
| 27 | Apply additional cavity preservation | Cavity preservation gun | |
| Preservation agent | *BR00.45-Z-1003-05A | ||
| Notes on cavity preservation | AH97.20-P-0001-01B | ||
| 28 | Remove welding protection blanket | ||
| 29 | Install all removed detachable parts |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1003-01A | White sealing compound, 310 ml, DBL 6069.20 | A 001 989 63 20 |
| BR00.45-Z-1041-01A | Seam sealant, sprayable 310 ml | A 002 989 84 20 |
| BR00.45-Z-1092-02A | Adhesive kit, body, 2-component adhesive | A 009 989 36 71 |
| BR00.45-Z-1003-05A | Cavity preservation, solvent-free (1 l container) | A 000 986 72 70 05 |
| BR00.45-Z-1001-07A | Zinc dust paint suitable for spot welding | A 000 986 34 42 |
| BR00.45-Z-1001-13A | Blind rivet, as required 6.4X14 | A 003 990 35 97 |
| BR00.45-Z-1012-13A | Rivet, cargo retainers 4.8X9 | A 004 990 16 97 |
