Prepare rear longitudinal member section - AR64.20-P-1260-02EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.0/1/2, 218.3

The following operation steps are shown on the left side of the vehicle on model 212.0 and must be performed analogously on the right side in the event of damage.

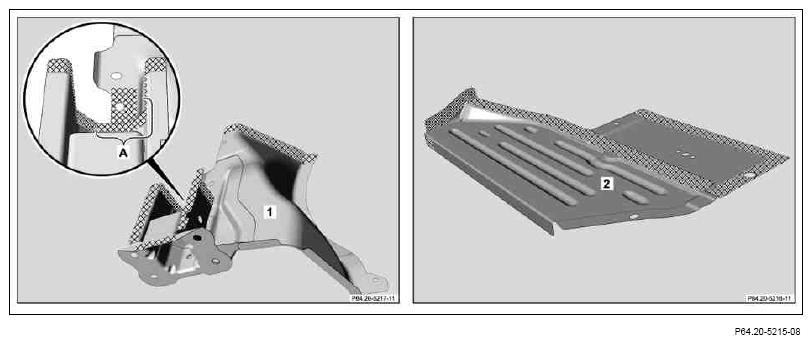

Fig 1: Rear Longitudinal Member And Locking Lug

Courtesy of MERCEDES-BENZ USA

Model 212.041
Cut out sheet metal panel on rear longitudinal member (1) which is not required from rear longitudinal member (1) and remove.
Grind mating surfaces on rear longitudinal member (1) and rear locking lug (2) down to bare metal in cross-hatched areas.
Sand down spot weld flanges to bare metal on both sides.
Coat insides of spot weld flanges with zinc dust paint.
Do not coat bonding surfaces with zinc dust paint (area A).

Otherwise adhesion problems may occur.
