Remove/install fuel pressure sensor - AR07.04-P-0030EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 271, 272, 273, 274 in MODEL 212
ENGINE 274 in MODEL 218
Shown on MODEL 212.003
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. | No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and remove transmitter key | ||
| 2 | Unscrew fuel filler flap, unscrew tank lid and close them again | ||
| 3 | Remove seat cushion in the rear | ENGINE 274 in MODEL 218.9 | AR91.12-P-1020ELX |
| ENGINE 274 in MODEL 218.3 | AR91.12-P-1020EL | ||
| ENGINE 271, 272, 273, 274 in MODEL 212 without CODE 224 (Rear individual seat design) | AR91.12-P-1020CW | ||
| ENGINE 271, 272, 273, 274 in MODEL 212 with CODE 224 (Rear individual seat design) | AR91.12-P-1020EW | ||
| 4 | Remove cover for the left service opening | AR47.10-P-4100-02EW | |
| *BA47.10-P-1005-01M | |||

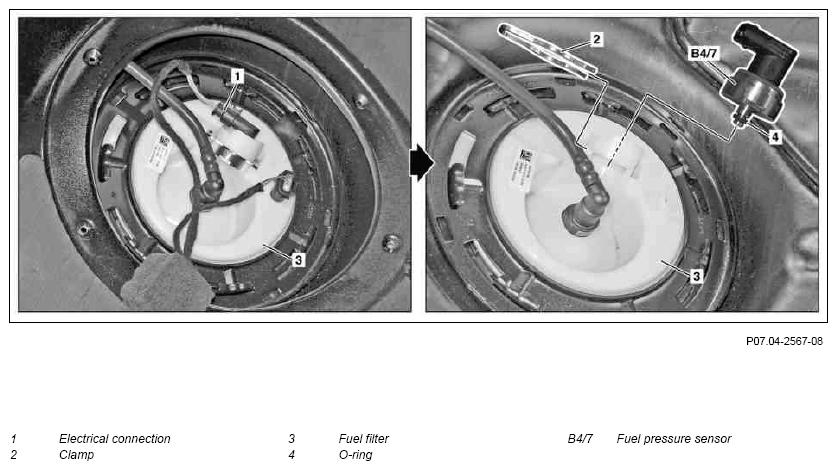

| 5 | Release and disconnect electrical connection (1) on pressure sensor (B4/7) | ||
| 6 | Pry out clamp (2) with screwdriver in direction of vehicle front | ||
| 7 | Pull fuel pressure sensor (B4/7) out of fuel filter (3) | ||
| Antifriction paste, rubber parts 2.5 kg, DBL 6867.00 | *BR00.45-Z-1002-06A | ||
| 8 | Install in the reverse order | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 9 | Start engine and check fuel system for leaktightness |
FUEL TANK
| Number | Designation | MODEL 212 | MODEL 218 | |
|---|---|---|---|---|
| BA47.10-P-1005-01M | Screw/bolt, cover to vehicle floor | Nm | 3 | 3 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1002-06A | Antifriction paste, rubber parts 2.5 kg, DBL 6867.00 | A 000 989 01 60 |
