Remove/install fuel pressure sensor - AR07.04-P-0030EL

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 157, 276, 278 in MODEL 212, 218

ENGINE 276, 278 in MODEL 207

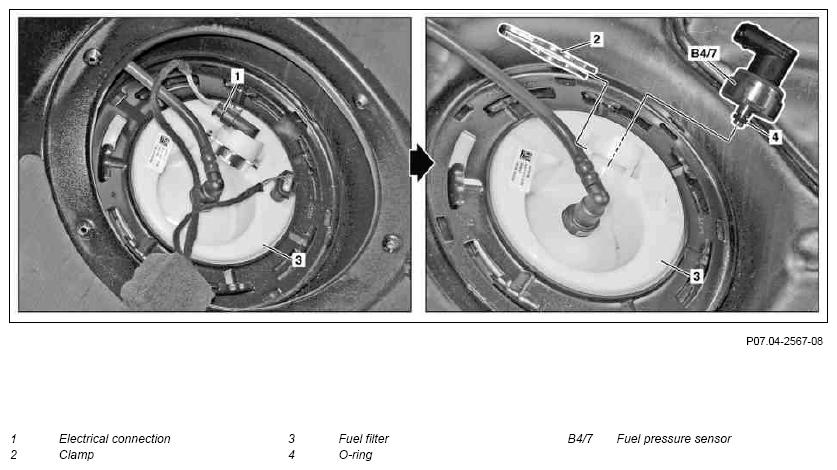

Fig 1: Fuel Pressure Sensor Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel.	No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel.	AS47.00-Z-0001-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
1	Switch off ignition
2	Open fuel filler flap and open tank cap and reseal	in order to reduce pressure in the fuel tank.
3	Remove rear seat cushion	ENGINE 276, 278 in MODEL 207	AR91.12-P-1020EC
		ENGINE 157, 276, 278 in MODEL 218.3	AR91.12-P-1020EL
		ENGINE 157, 276, 278 in MODEL 212.0 with CODE 224 (Rear individual seat design)	AR91.12-P-1020EW
		ENGINE 157, 276, 278 in MODEL 212 without CODE 224 (Rear individual seat design)	AR91.12-P-1020CW
4	Remove cover for the left service opening	ENGINE 276, 278 in MODEL 207	AR47.10-P-4100-02CW
		ENGINE 157, 276, 278 in MODEL 212, 218 Carry out leak test before installing the cover.	AR47.10-P-4100-02EW
		Screw/bolt, cover to vehicle floor	*BA47.10-P-1005-01M
5	Release and disconnect electrical connection (1) on fuel pressure sensor (B4/7)
6	Pry out clamp (2) with screwdriver in direction of travel
7	Pull fuel pressure sensor (B4/7) out of fuel filter (3)	Replace O-ring (4) and apply lubricant paste.
		Antifriction paste, rubber parts 2.5 kg, DB supply specification 6867.00	*BR00.45-Z-1002-06A
8	Install in the reverse order
	Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
9	Start engine and check fuel system for leaktightness

FUEL TANK

Number	Designation		MODEL 207	MODEL 212
BA47.10-P-1005-01M	Screw/bolt, cover to vehicle floor	Nm	3	3

FUEL TANK

Number	Designation		MODEL 218
BA47.10-P-1005-01M	Screw/bolt, cover to vehicle floor	Nm	3

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1002-06A	Antifriction paste, rubber parts 2.5 kg, DB supply specification 6867.00	A 000 989 01 60
