Test compression pressure - AR01.00-P-1200EWS
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 272, 273 in MODEL 212
| Remove/install | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 1 | Bring engine up to operating temperature (approx. 80°C) | ||
| 2 | Remove key from ignition lock | ||
| 3 | Remove air filter housing | AR09.10-P-1150EWS | |
| 4 | Remove ignition coils | AR15.12-P-2003EW | |
| 5 | Remove spark plugs | ||
| AP15.10-P-1580EW | |||
| 6 | Attach electrical feed lines to compression recorder (01) and crank engine with the contact switch at the compression recorder | AR01.10-P-0110EW | |
| Figure | |||
| Figure | |||
| Check | |||

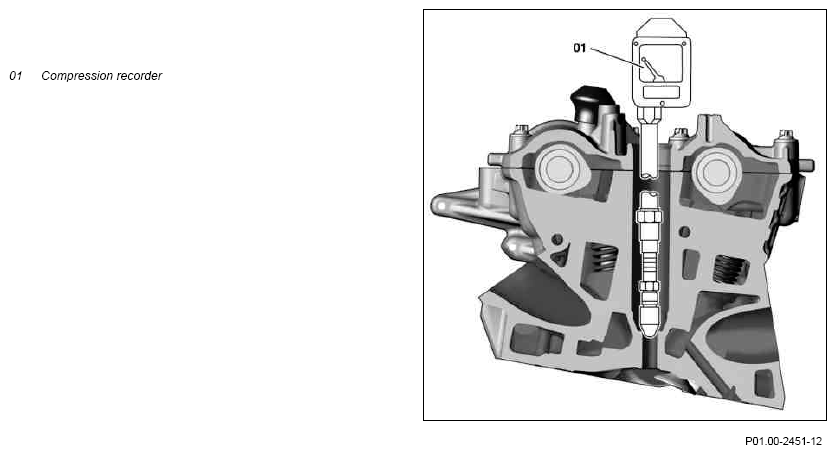

| 7 | Press compression recorder (01) on tapped bore of spark plug for first cylinder | ||
| 8 | Crank engine with contact switch for compression recorder (01) until a pressure rise is no longer indicated on compression recorder | ||
| 9 | Carry out testing procedure in the cylinder order on remaining cylinders in the same way | ||
| 10 | Compare measurements obtained with permissible pressures | Compression pressure, installation tolerance or new value | *BE01.00-P-1001-01B |
| Compression pressure, permissible difference between individual cylinders | *BE01.00-P-1002-01B | ||
| Compression pressure, wear limit or limit value | *BE01.00-P-1003-01B | ||
| 11 | Check for cylinder leakage | AR01.00-P-1300EWS | |
| 12 | Install in the reverse order |
COMPRESSION PRESSURE
| Number | Designation | ENGINE 272 | ENGINE 273 | |
|---|---|---|---|---|
| BE01.00-P-1003-01B | Compression pressure, wear limit or limit value | bar | 10 | 10 |
COMPRESSION PRESSURE
| Number | Designation | ENGINE 272 | ENGINE 273 | |
|---|---|---|---|---|
| BE01.00-P-1001-01B | Compression pressure, installation tolerance or new value | bar | 12...15 | 12...16 |
COMPRESSION PRESSURE
| Number | Designation | ENGINE 272 | ENGINE 273 | |
|---|---|---|---|---|
| BE01.00-P-1002-01B | Compression pressure, permissible difference between individual cylinders | bar | ≤1, 5 | ≤1, 5 |
