Crank engine with starter - AR01.10-P-0110EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 272, 273, 642 in MODEL 212
| Remove/install | |||
| 1 | Bring transmission into idle or neutral position and switch off ignition | ||
| 2 | Remove cover from front SAM control unit with fuse and relay module (N10/1) | ||
| 3 | Remove starter circuit 50 relay (N10/1kM) | ||
| 4 | Plug electrical feed line (1) of compression recorder into slot 87 | The electrical feed line (1) must not be in inserted slot 87a. The fuse will be damaged otherwise. |
|

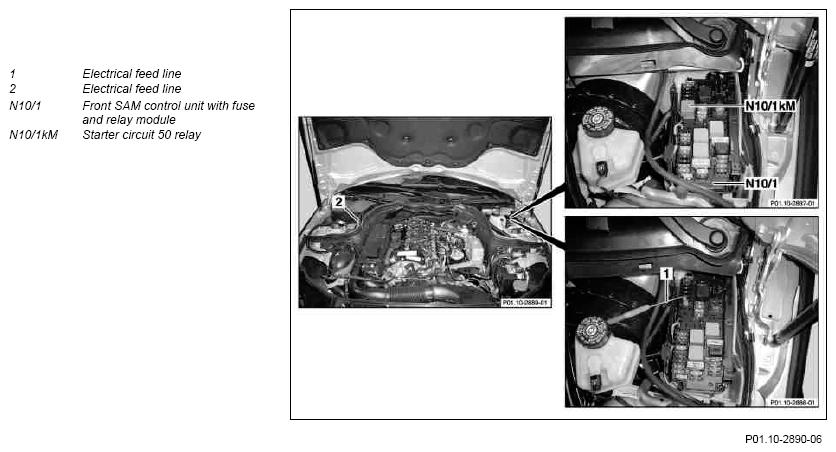

| Figure | |||
| Figure | |||
| 5 | Attach electrical feed line (2) of compression recorder to circuit 30 terminal point in engine compartment | ||
| 6 | Crank engine by pressing contact switch at compression recorder | ||
| 7 | Install in the reverse order |
