Overview of system components for theft protection and locking - GF80.00-P-9999FL
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212

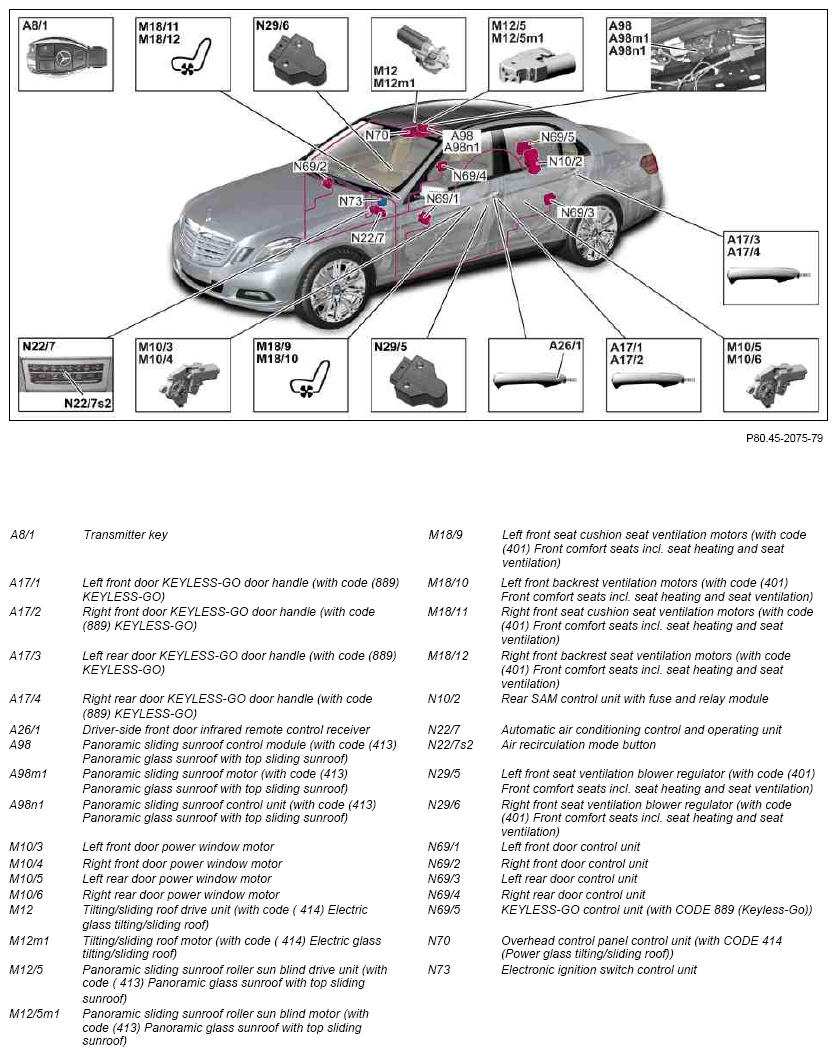

Central locking, shown on model 212.0

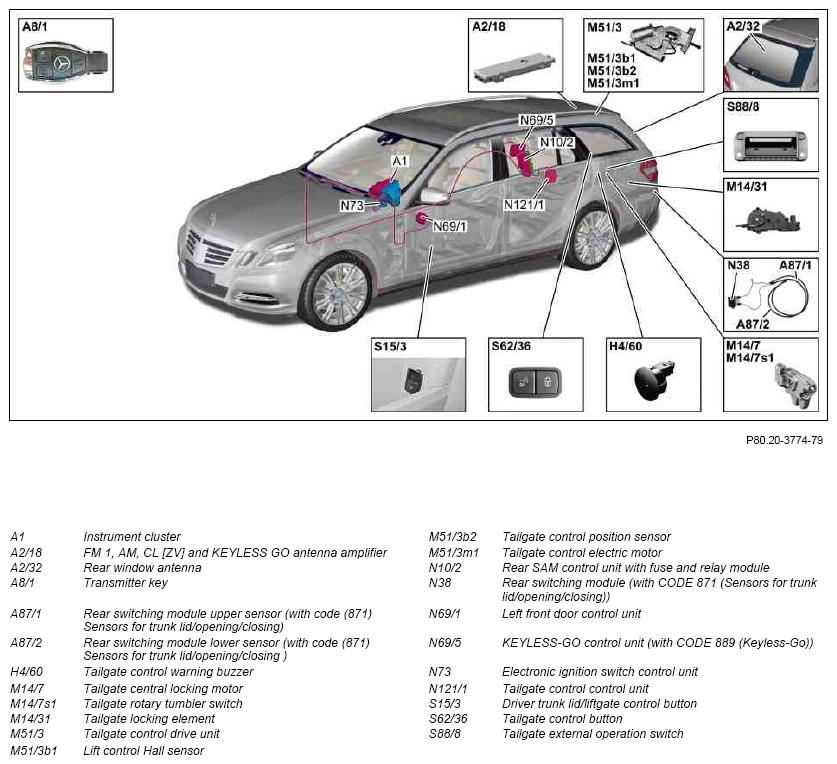

Liftgate control, model 212.2

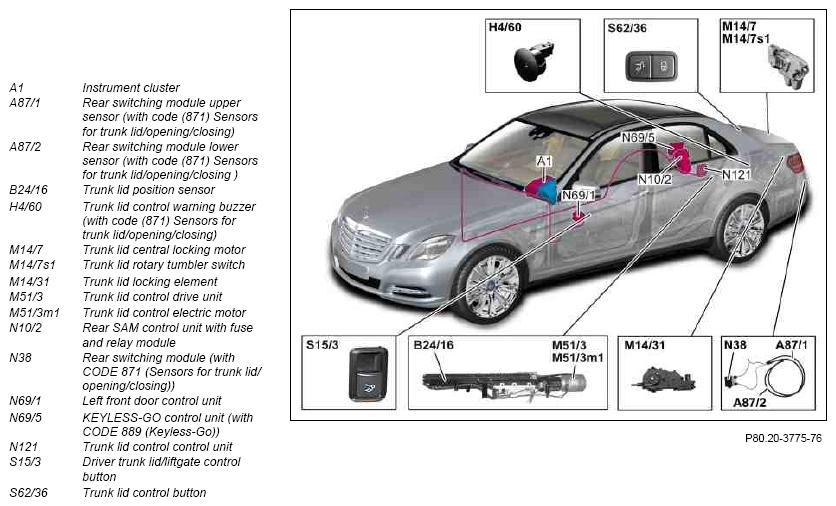

Trunk lid control, model 212.0/1 with code (881) Remote trunk closing (RTC [HDFS])
Fig 3: Overview Of Theft Protection And Trunk Lid Control System Components - Shown On Model 212.0/1 With Code 881
Convenience feature (CF), shown on model 212.0
KEYLESS-GO (with CODE (889) KEYLESS-GO), shown on model 212.0

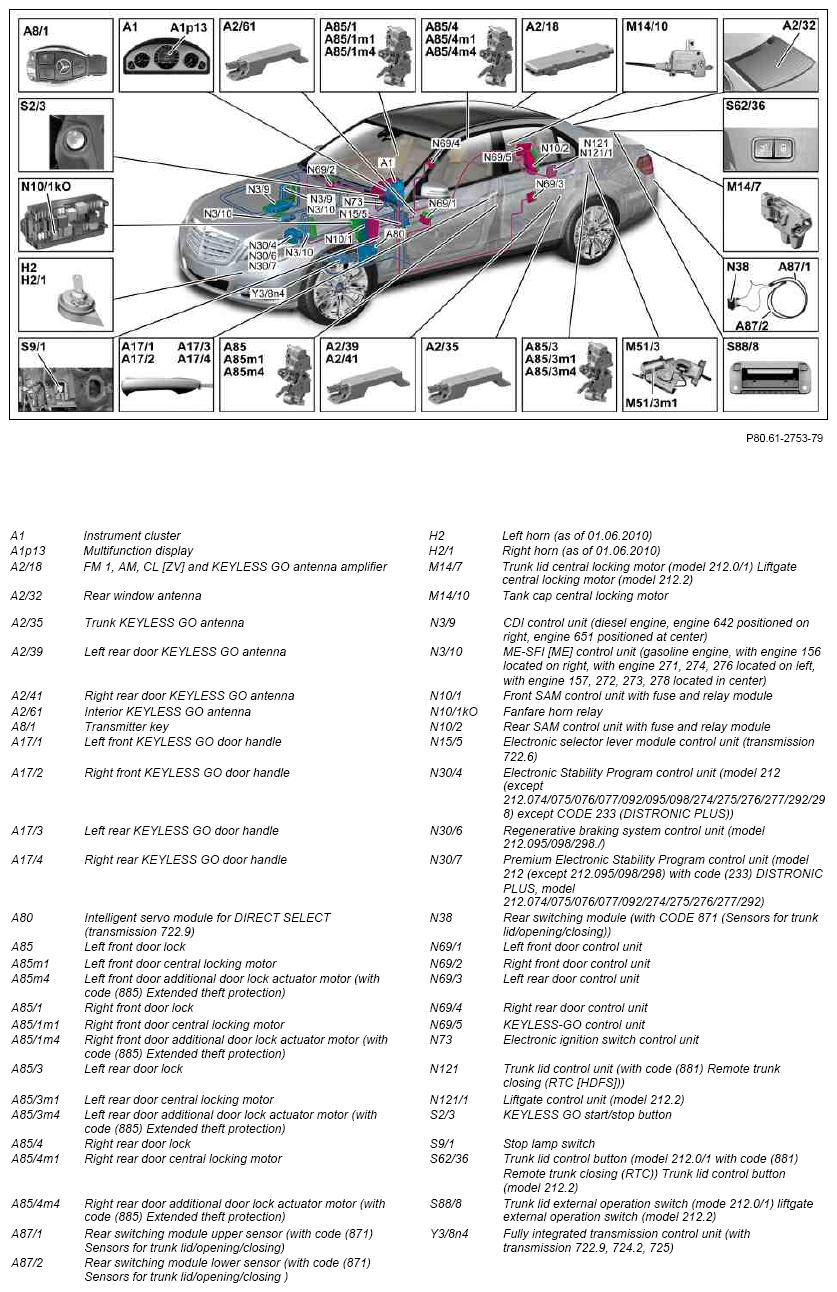

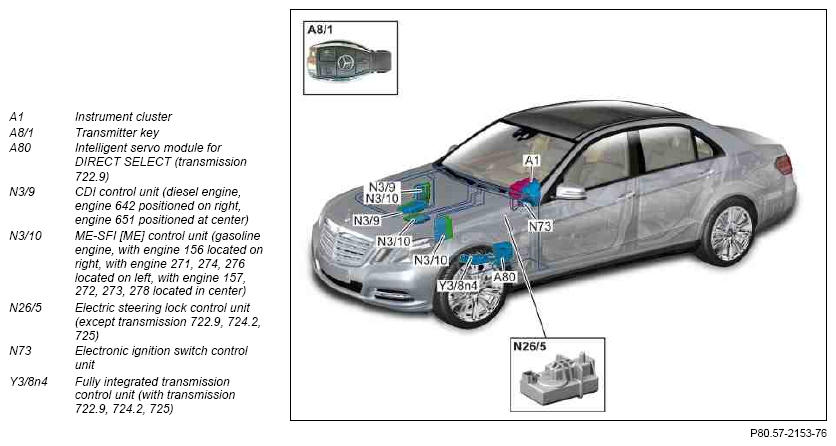

Drive authorization system stage 3 (DAS 3) (up to 28.02.2013), drive authorization system stage 4 (DAS 4) function (as of 01.03.2013), shown on model 212.0

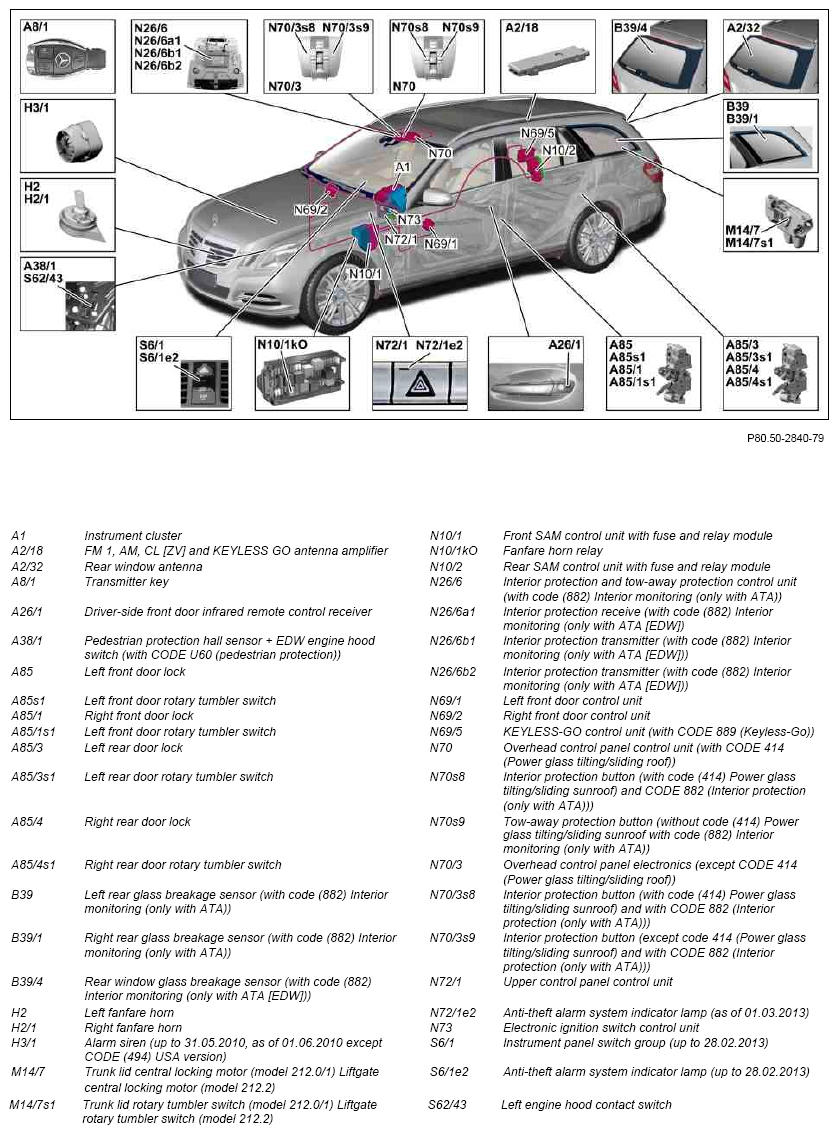

Anti-theft alarm system (ATA) (with code (551) Anti-theft alarm system (ATA)), shown on model 212.2

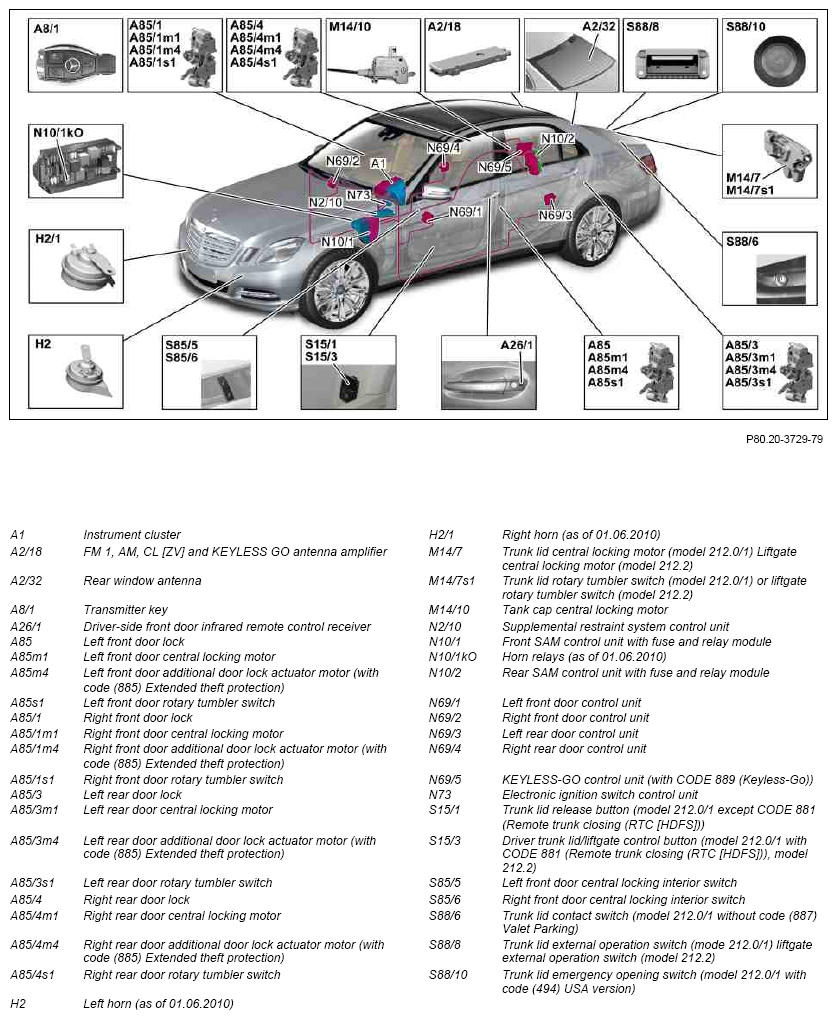

MODEL 212.0/1 with CODE 494 (US version)
The trunk lid emergency opening switch (S88/10) is installed in addition.
| Component description for instrument cluster | A1 | GF54.30-P-6000FL | |
| Component description for intelligent servo module for DIRECT SELECT | MODEL 212 with TRANSMISSION 722.9 (except 722.930/931) A80 |
GF27.19-P-4020AHL | |
| MODEL 212.0/2 with TRANSMISSION 722.930 up to 5/31/11, 722.931 as of 6/1/11 A80 |
GF27.19-P-4020AHX | ||
| Component description for panoramic sliding roof control module | MODEL 212 with CODE 413 (Panoramic glass roof with top sliding roof) A98 |
GF77.20-P-4106FL | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080FL | |
| Component description for CDI control unit | MODEL 212 with ENGINE 642.8 N3/9 |
GF07.16-P-6000OG | |
| MODEL 212.098/298 with ENGINE 651.924 up to model year 2014 N3/9 |
GF07.16-P-6000OLH | ||
| MODEL 212.098/298 with ENGINE 651.924 up to 8/31/14 as of model year 2014 N3/9 |
GF07.16-P-6000OLI | ||
| MODEL 212.098/298 with ENGINE 651.9 as of 9/1/14 as of model year 2014 N3/9 |
GF07.16-P-6000OLJ | ||
| MODEL 212 (except 212.098/298) with ENGINE 651.9Delphi N3/9 |
GF07.16-P-6000OM | ||
| MODEL 212 (except 212.098/298) with ENGINE 651.9 as of 9/1/13 with CODE 494 (US version) Bosch N3/9 |
GF07.16-P-6000OMD | ||
| Component description for ME-SFI (ME) control unit | MODEL 212 with ENGINE 156.9 N3/10 |
GF07.61-P-6000MAW | |
| MODEL 212 with ENGINE 157.9 MODEL 212 with ENGINE 278.9 N3/10 |
GF07.61-P-6000MMA | ||
| MODEL 212 with ENGINE 271.8 N3/10 |
GF07.61-P-6000MG | ||
| MODEL 212.041 with ENGINE 271.958 with CODE 924 (Bivalent natural gas drive) N3/10 |
GF07.61-P-6000MFG | ||
| MODEL 212 with ENGINE 272.9 (except 272.983) N3/10 |
GF07.61-P-6000MI | ||
| MODEL 212.0/2 with ENGINE 272.983 N3/10 |
GF07.61-P-6000MIE | ||
| MODEL 212 with ENGINE 273.9 N3/10 |
GF07.61-P-6000ML | ||
| MODEL 212 with ENGINE 274.9 without CODE 924 (Bivalent natural gas drive) N3/10 |
GF07.61-P-6000MRB | ||
| MODEL 212 with ENGINE 274.9 with CODE 924 (Bivalent natural gas drive) N3/10 |
GF07.61-P-6000MRC | ||
| MODEL 212 with ENGINE 276.8 as of model year 2014 N3/10 |
GF07.61-P-6000MMP | ||
| MODEL 212 (except 212.095) with ENGINE 276.9 N3/10 |
GF07.61-P-6000MM | ||
| MODEL 212.095 with ENGINE 276.9 N3/10 |
GF07.61-P-6000MMO | ||
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070FL | |
| Component description for rear SAM control unit with fuse and relay module | N10/2 | GF54.21-P-6030FL | |
| Component description for electronic selector lever module control unit | MODEL 212 with TRANSMISSION 722.6 N15/5 |
GF27.60-P-5163ACL | |
| Component description for automatic air conditioning control and operating unit | MODEL 212 without CODE 581 (Comfort automatic air conditioning) N22/7 |
GF83.40-P-3000FLA | |
| MODEL 212 with CODE 581 (Comfort automatic air conditioning) N22/7 |
GF83.40-P-3000FLB | ||
| Component description for Electronic Stability Program control unit | MODEL 212 (except 212.095/098/298) up to model year 2014 N304, N307 |
GF42.45-P-5119FL | |
| MODEL 212 (except 212.095/098/298) as of model year 2014 N304, N307 |
GF42.45-P-5119FLM | ||
| Component description for regenerative braking system control unit | MODEL 212.095/098/298 up to model year 2014 N30/6 |
GF42.22-P-1100FLH | |
| MODEL 212.095/098/298 as of model year 2014 N30/6 |
GF42.22-P-1100FLM | ||
| Component description for left front door control unit | N69/1 | GF72.29-P-6001FL | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009FL | |
| Component description for rear door control unit | N69/3, N69/4 | GF72.29-P-6021FL | |
| Component description for KEYLESS-GO control unit | MODEL 212 with CODE 889 (Keyless Go) N69/5 |
GF80.61-P-4204FL | |
| Component description for overhead control panel control unit | MODEL 212 with CODE 414 (Power glass tilting/sliding roof) N70 |
GF82.20-P-5216FL | |
| Component description for electronic overhead control panel | MODEL 212 without CODE 414 (Power glass tilting/sliding roof) N70/3 |
GF82.20-P-5217FL | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FL | |
| Trunk lid/liftgate control unit, component description | MODEL 212.0 with CODE 881 (Remote trunk closing (RTC [HDFS])) MODEL 212.1 with CODE 881 (Remote trunk closing (RTC [HDFS])) MODEL 212.2 N121, N121/1 |
GF80.20-P-6092FL | |
| Component description for fully integrated transmission control unit | MODEL 212 with TRANSMISSION 722.9 (except 722.930/931) Y3/8n4 |
GF27.60-P-5165AHL | |
| MODEL 212.0/2 with TRANSMISSION 722.930 up to 5/31/11, 722.931 as of 6/1/11 Y3/8n4 |
GF27.60-P-5165AHX | ||
| MODEL 212 with TRANSMISSION 724.2 Y3/8n4 |
GF27.60-P-5165AHO | ||
| MODEL 212 with TRANSMISSION 725.0 Y3/8n4 |
GF27.60-P-5165ANA | ||
| Table of contents for function description of theft protection and locking | GF80.00-P-0999FL |
