Remove/install temperature sensor - AR15.60-P-3000EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINES 272, 273 in MODEL 212
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury to skin and eyes caused by scalding from contact with hot coolant spray. Risk of poisoning caused by swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| 1 | Remove rear section of lower engine compartment paneling | AR61.20-P-1105EW | |
| 2 | Remove air filter housing (3). | AR09.10-P-1150EWS | |
| 3 | Remove vacuum pump | Vehicles with vacuum pump | AR43.05-P-1320ED |

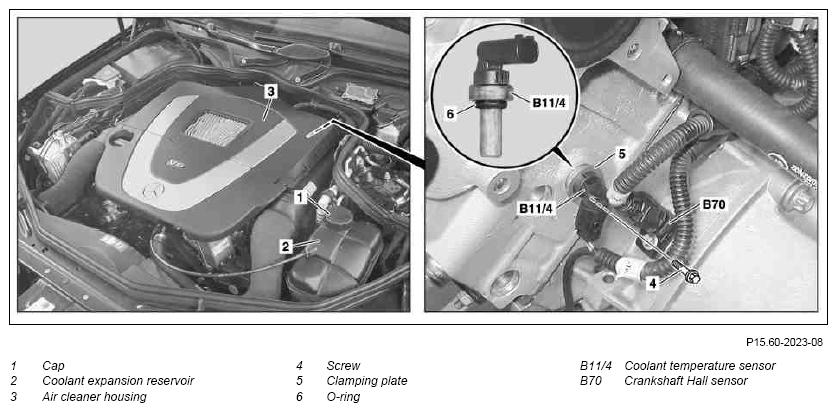

| 4 | Reduce pressure in cooling system, to do this, slowly open the cap (1) at the expansion reservoir (2) and reclose | ||
| 5 | Disconnect electrical connectors to Hall sensor (B70) and coolant temperature sensor (B11/4) | ||
| 6 | Remove bolt (4) and remove clamping plate (5) | *BA15.60-P-1001-01A | |
| 7 | Fit new O-ring (6) on new coolant temperature sensor (B11/4) | ||
| 8 | Pull coolant temperature sensor (B11/4) out of cylinder head and immediately insert new coolant temperature sensor (B11/4) | ||
| 9 | Install in the reverse order | ||
| 10 | Pour in coolant and bleed cooling system | AR20.00-P-1142EWS |
TEMPERATURE SENSOR
| Number | Designation | ENGINE 272 | ENGINE 273 | |
|---|---|---|---|---|
| BA15.60-P-1001-01A | Bolt, clamping plate for coolant temperature sensor to cylinder head | Nm | 8 | 8 |
