Remove/install vacuum pump - AR43.05-P-1320ED
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 with ENGINE 272
| Remove/install | |||

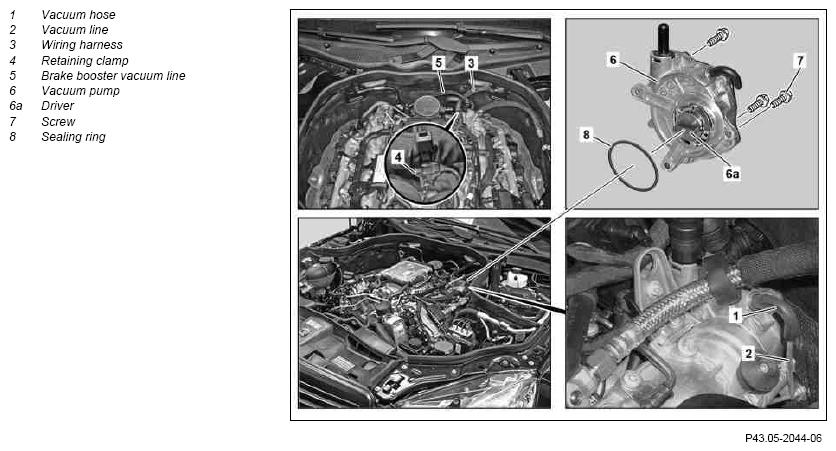

| 1 | Open engine hood and raise to vertical position | AR88.40-P-1000EW | |
| 2 | Remove air filter housing | AR09.10-P-1150EWS | |
| 3 | Detach vacuum line for brake booster (5) as of the separation point | AR43.10-P-0355EW | |
| 4 | Remove hot film mass air flow sensor | AR07.07-P-1453EW | |
| 5 | Remove air duct housing | AR09.20-P-0080EW | |
| 6 | Detach retaining clip (4) with electrical wiring harness (3) from engine | ||
| 7 | Detach vacuum hose (1) from vacuum pump (6) | ||
| 8 | Remove bolts (7) | *BA43.05-P-1001-01I | |
| 9 | Detach vacuum pump (6) backwards from cylinder head and remove | ||
| 10 | Install in the reverse order | ||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 11 | Test run engine and carry out leak check |
VACUUM PUMP
| Number | Designation | Model 204, 207, 212 with engine 271, 272 | |
|---|---|---|---|
| BA43.05-P-1001-01I | Screw, vacuum pump to cylinder head cover | Nm | 9 |
