Remove/install starter - AR15.30-P-7100EHV

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 276.9 in MODEL 212.095/195

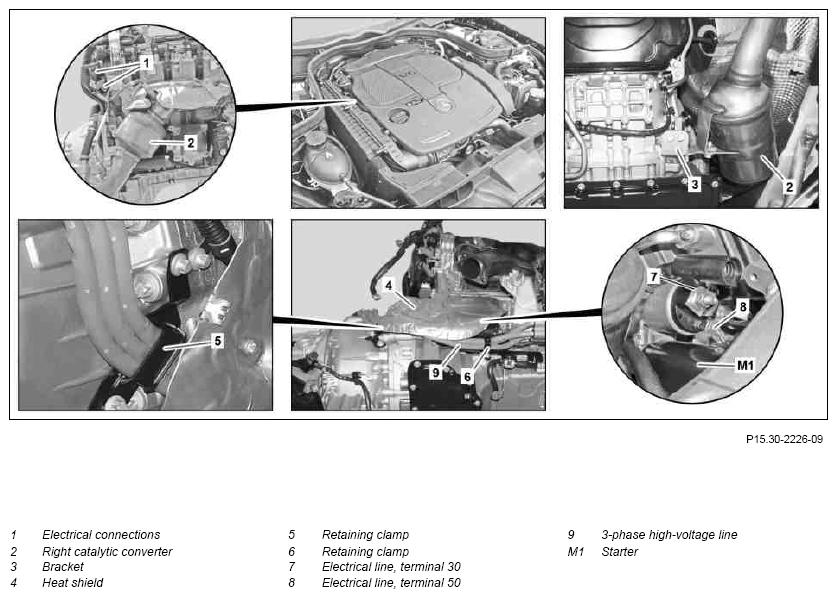

Fig 1: Starter Remove/Install Components
G09975081Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
DANGER Risk of death  when touching components on vehicles with high-voltage on-board electrical system Do not touch components and open lines of the high-voltage on-board electrical system. Persons who wear electronic implants (e.g. cardiac pacemakers), must not carry out any work on high-voltage on-board electrical systems. AS54.00-Z-0001-01A
1 Perform enable for the high voltage on-board electrical system   AR54.10-P-1150EH
2 Disconnect ground line at the on-board electrical system battery   AR54.10-P-0003EW
3 Unclip electrical connections (1) from bracket and disconnect
4 Remove lower engine compartment paneling   AR61.20-P-1105EW
5 Remove right catalytic converter (2) from manifold TORQUE SPECIFICATION Bolt, catalytic converter to exhaust manifold *BA49.10-P-1001-01AE
6 Remove right catalytic converter (2) from bracket (3) and lay over the front axle carrier TORQUE SPECIFICATION Bolt, catalytic converter holder to catalytic converter *BA49.10-P-1010-01AE
7 Remove heat shield (4)
8 Remove retaining clamps (5, 6)
9 Remove contact protection on electrical line for circuit 30 (7)
10 Remove electrical line for circuit 30 (7) from starter (M1) TORQUE SPECIFICATION Nut, connection for terminal designation 30 *BA15.30-P-1001-01J
11 Remove electrical line for circuit 50 (8) from starter (M1) TORQUE SPECIFICATION Nut, connection for terminal designation 50 *BA15.30-P-1002-01J
12 Remove starter (M1) from cylinder crankcase NOTES
Place 3-phase high-voltage line (9) for removal of the mounting screws and for removal of the starter (M1) to one side.
The 3-phase high-voltage line (9) can be damaged otherwise.
TORQUE SPECIFICATION Bolt, starter to crankcase *BA15.30-P-1003-01J
13 Check ring gear at flywheel for wear and damage When replacing the starter (M1).
IMPORTANT Rotate engine at center Bolt, crankshaft in the direction of engine rotation.
If there are problems:
↓
Replace flywheel AR03.30-P-8001EHV
14 Install in the reverse order
STARTER

Number Designation ENGINE 276
BA15.30-P-1001-01J Nut, connection for terminal designation 30 Nm 15
STARTER

Number Designation ENGINE 276
BA15.30-P-1002-01J Nut, connection for terminal designation 50 Nm 6
STARTER

Number Designation ENGINE 276
BA15.30-P-1003-01J Bolt, starter to crankcase Nm 40
EXHAUST SYSTEM

Number Designation ENGINE 156, 157, 271, 272, 273, 276, 278 in MODEL 212
BA49.10-P-1001-01AE Bolt, catalytic converter to exhaust manifold Nm 20
EXHAUST SYSTEM

Number Designation ENGINE 156, 157, 271, 272, 273, 276, 278 in MODEL 212
BA49.10-P-1010-01AE Bolt, catalytic converter holder to catalytic converter Nm 35
