Remove/install noise damper downstream of charge air cooler - AR09.40-P-6925SXI

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINES 642 in MODEL 207, 212, 218, 221

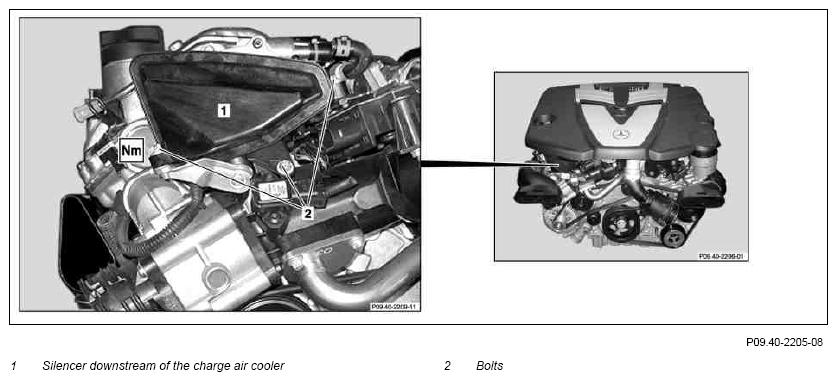

Fig 1: Noise Damper Downstream Of Charge Air Cooler Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove engine cover	Ensure correct seating of the engine cover. Model 207, 212, 218
1	Remove engine cover	Model 221	AR01.10-P-2405SXI
2	Remove bolts (2)		*BA09.41-P-1007-01J
3	Remove noise damper downstream of charge air cooler (1)	Inspect sealing ring for damage and replace if necessary to prevent leaks and damage to the engine.
4	Install in the reverse order

CHARGE AIR PIPE/CHARGE AIR COOLING

Number	Designation		Engine 642
BA09.41-P-1007-01J	Silencer downstream of charge air cooler to mixing chamber	Nm	9
