Remove/install charge air hose downstream of the charge air cooler - AR09.41-P-8625SXI
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 642 in MODEL 207, 212, 218, 221
Shown on engine 642.910
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 1 | Remove bottom sections of soundproofing | Model 221 except code Z07 (Highest protection) | AR61.20-P-1105SX |
| MODEL 207, 212, 218 | AR94.30-P-5300EW | ||

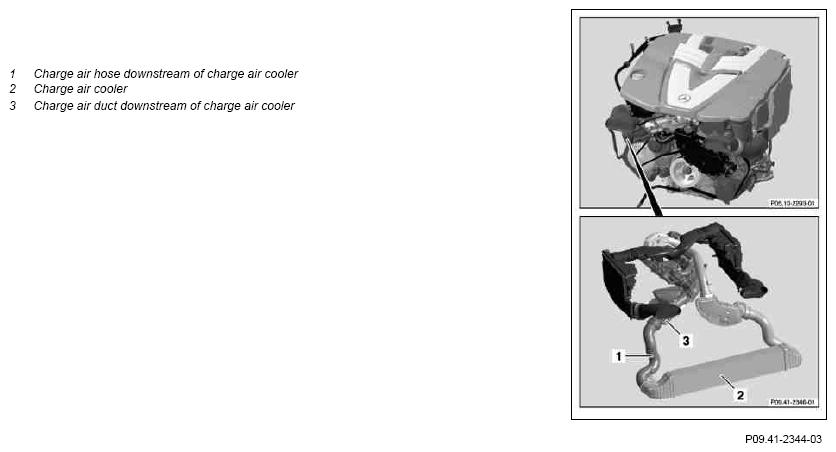

| 2 | Seal off charge air hose downstream of charge air cooler (1) at charge air cooler (2) | AR09.41-P-1311-01AL | |
Thoroughly clean the connections, check for damage and correct seating of the sealing rings and catch springs, replace if necessary. Leaks can occur otherwise. |
|||
| 3 | Remove engine intake air duct upstream of the RH air filter housing | Model 207, 212, 218 | |
| 4 | Seal off charge air hose downstream of charge air duct (1) downstream of charge air cooler (3) | AR09.41-P-1311-01AL | |
Thoroughly clean the connections, check for damage and correct seating of the sealing rings and catch springs, replace if necessary. Leaks can occur otherwise. |
|||
| 5 | Install in the reverse order |
