Remove/install engine charge air channel downstream of charge air cooler - AR09.41-P-8624OGE
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINES 642 in MODELS 207, 212, 218
Shown on model 212
| Remove/install | |||
| 1 | Remove engine charge air hose downstream of charge air cooler | AR09.41-P-8625SXI | |
| 2 | Disconnect electrical connector at charge air temperature sensor | ||
| 3 | Remove right air filter housing | AR09.10-P-1150SXI | |
| 4 | Remove bolts (2) for bracket at cylinder head | *BA09.41-P-1006-01J | |

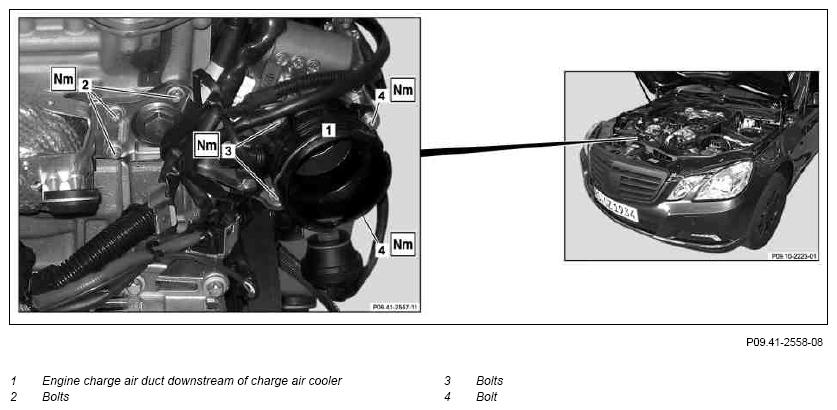

| 5 | Remove bolts (3) on engine charge air duct downstream of charge air cooler (1) | *BA09.41-P-1005-01J | |
| 6 | Remove bolts (4) on engine charge air duct downstream of charge air cooler (1) | *BA09.41-P-1005-01J | |
| 7 | Remove engine charge air channel downstream of charge air cooler (1) | ||
| 8 | Install in the reverse order |
CHARGE AIR PIPE/CHARGE AIR COOLING
| Number | Designation | Engine 642 | |
|---|---|---|---|
| BA09.41-P-1005-01J | Engine charge air duct downstream of charge air cooler to throttle valve actuator | Nm | 9 |
| BA09.41-P-1006-01J | Bracket, throttle valve actuator to cylinder head | Nm | 9 |
